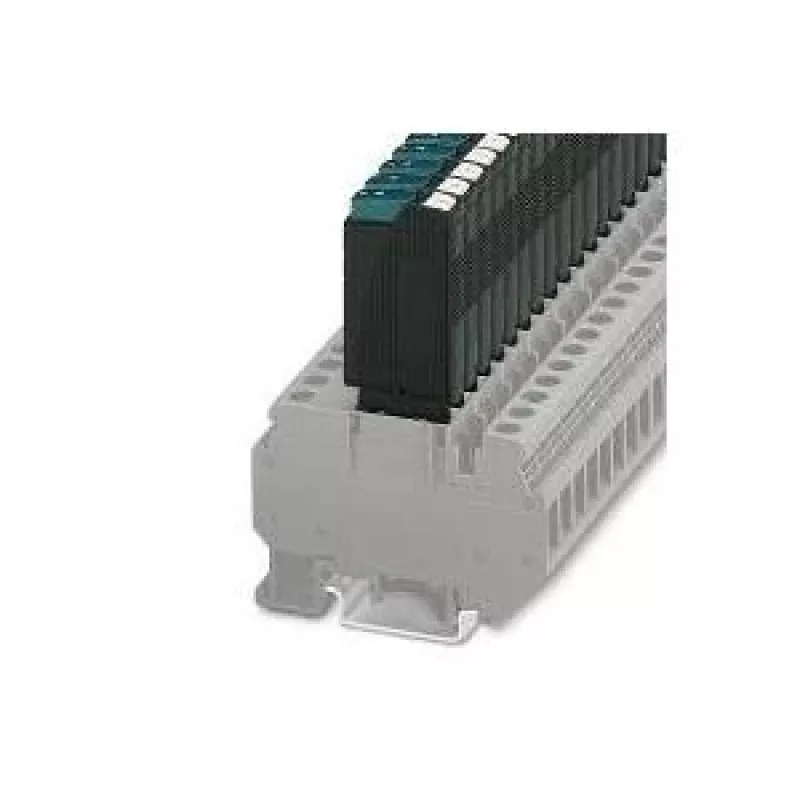

Phoenix Contact TCP 6A Interruptor de protección térmica, 250 V AC / 65 V DC, 1 polo, rearme por pulsador, pack de 20 (0712275)

The Phoenix Contact TCP 6A thermal circuit breaker stands out for its compact plug-in design and reliable thermal trip mechanism, offering precise protection for control circuits and small loads in industrial environments. Unlike standard fuses, it can be manually reset with a simple push-button, eliminating the need for replacement after a trip and reducing downtime. This pack of 20 pieces is ideal for panel builders and maintenance teams who need a consistent, high-quality protection solution.

Highlights

• Rated current: 6 A, suitable for a wide range of low-power applications
• Dual voltage rating: 250 V AC and 65 V DC, covering both AC and DC circuits
• Single-pole thermal trip characteristic for overload protection
• Manual push-button reset for quick recovery without replacement
• Plug-in mounting for easy installation and replacement in compatible bases
• High switching capacity of 2 kA at rated voltage
• Compact black polyamide housing (PA 6.6) with IP30 protection when plugged in
• Approvals: UL, CSA, VDE, cULus Recognized

In daily use

In practice, the TCP 6A is commonly used to protect power supplies, PLC outputs, sensors, and other low-current devices. Its thermal element responds to sustained overloads, while the push-button allows manual tripping for maintenance. The plug-in design means you can swap a breaker in seconds without rewiring, reducing service time. The wide operating temperature range from -30 °C to 60 °C ensures reliable performance even in harsh industrial settings.

Full specifications

• Brand: Phoenix Contact
• Model: TCP 6A
• MPN: 0712275
• EAN: 4017918848392
• Product type: Thermal circuit breaker
• Rated current: 6 A
• Rated voltage: 250 V AC / 65 V DC
• Number of poles: 1
• Trip characteristic: Thermal
• Mounting type: Plug-in
• Reset type: Manual (push-button)
• Switching capacity: 2 kA (AC and DC)
• Insulation voltage: 250 V
• Dielectric strength: 2.5 kV (50 Hz, 1 min)
• Degree of pollution: 2
• Overvoltage category: II
• Protection class: IP30 (when plugged in)
• Operating temperature: -30 °C to 60 °C
• Storage temperature: -40 °C to 70 °C
• Housing material: PA 6.6 (polyamide)
• Color: Black
• Certifications: UL, CSA, VDE, cULus Recognized
• Quantity per pack: 20

Final note

For engineers and technicians seeking a dependable, resettable protection device with proven approvals, the Phoenix Contact TCP 6A delivers consistent performance and ease of use in a space-saving package.
