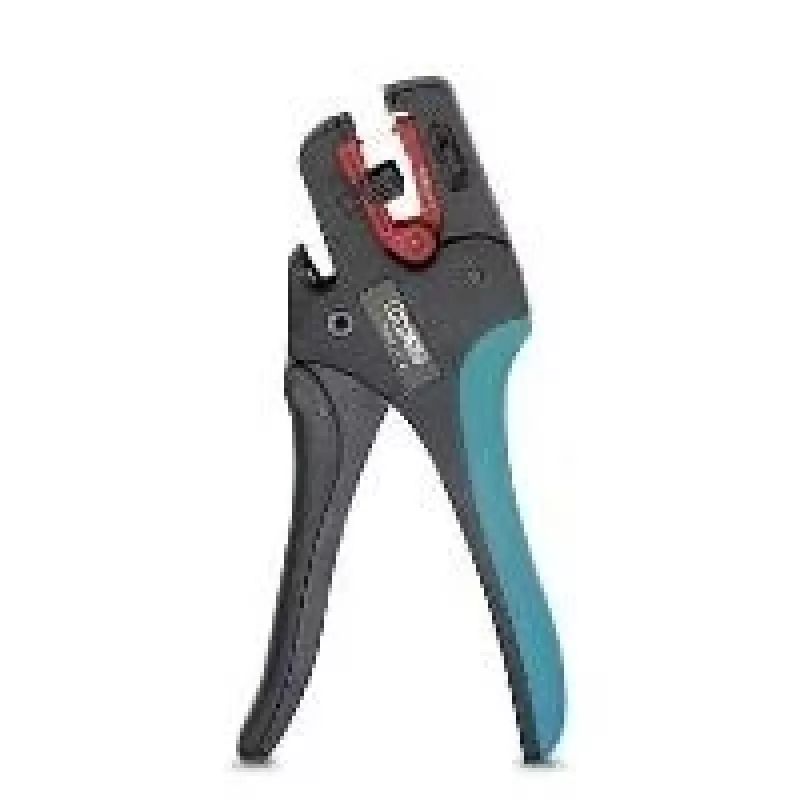

Phoenix Contact WIREFOX 16 pelacables automático 0,02-16 mm² AWG 34-5 1212155

Electricians and control cabinet builders rely on the WIREFOX 16 for fast, repeatable stripping of conductors from 0.02 to 16 mm². The tool adjusts automatically to the wire diameter, so no manual setting is needed between different cross-sections.

Key specifications

• Stripping range: 0.02 – 16 mm² (AWG 34 – 5)
• Automatic adjustment to wire diameter
• Adjustable length stop: 5 – 25 mm
• Integrated cutter for flexible conductors up to 10 mm diameter
• Blades made of special tool steel, replaceable
• Ergonomic two-component handle
• For PVC and rubber insulation

Why choose it

The WIREFOX 16 strips cleanly without nicking the conductor, thanks to its precision blade geometry and automatic diameter sensing. The adjustable stop ensures identical strip lengths on every wire, speeding up panel building and reducing rework.

Ideal use cases

• Electrical installation and control cabinet wiring
• Stripping fine-stranded and solid conductors
• Working with PVC or rubber insulated cables

Good to know

Blades can be replaced when worn, extending the tool's service life. The two-component handle provides a secure grip even during long work sessions.
