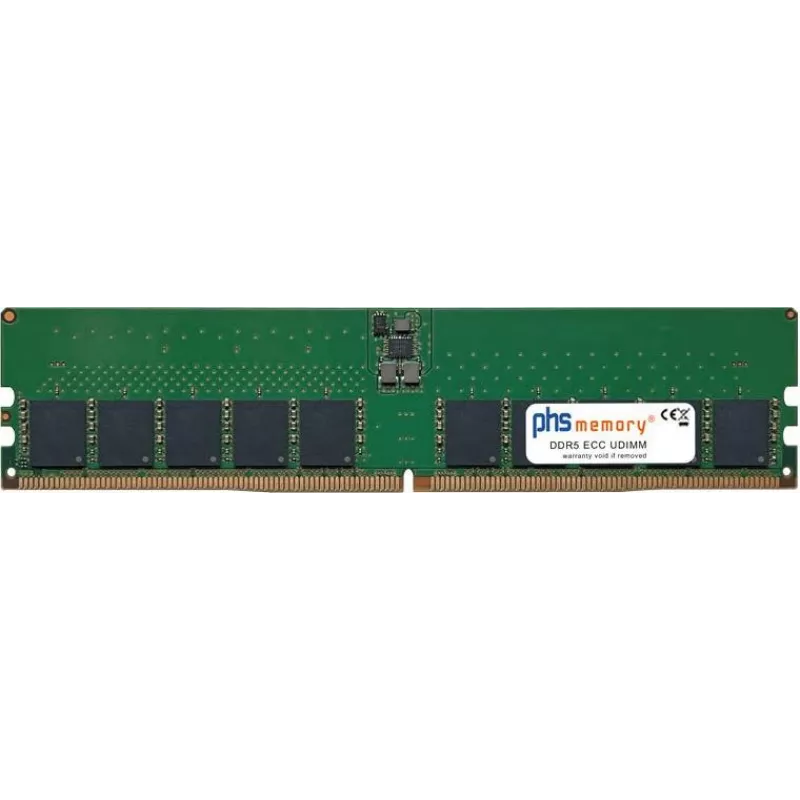

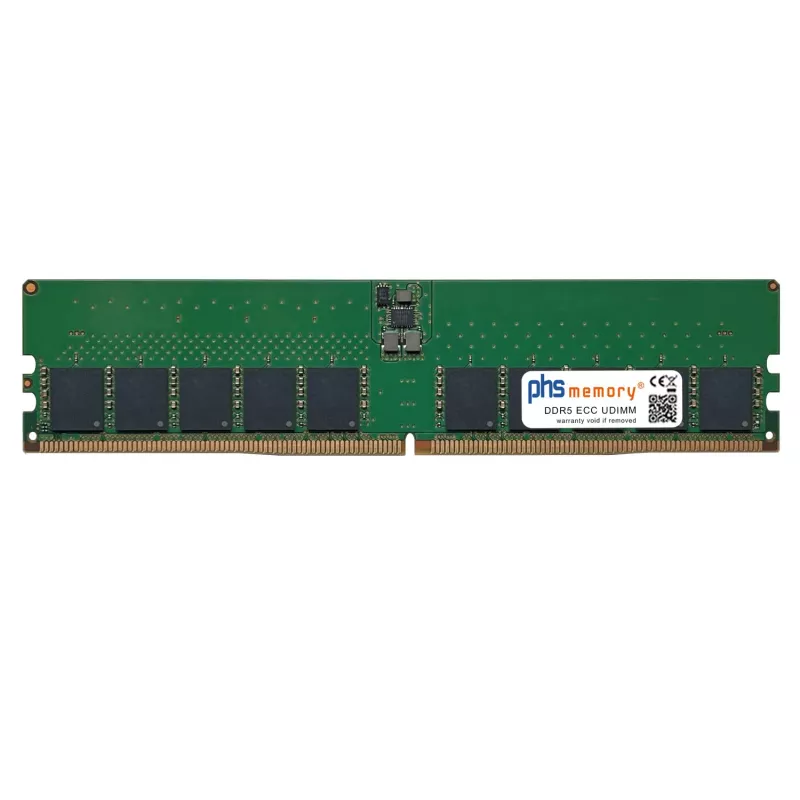

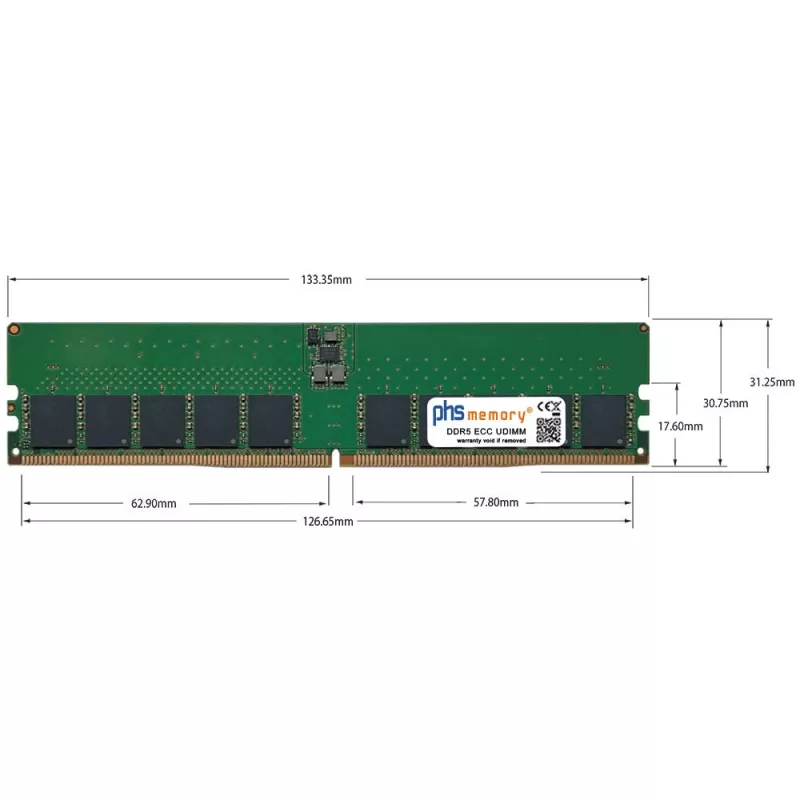

PHS-memory 16GB DDR5 ECC UDIMM 5600MHz PC5-44800E RAM para Supermicro X13SAW-F SP569572

Server administrators and workstation builders upgrading a Supermicro X13SAW-F motherboard can install this 16GB DDR5 ECC UDIMM module to improve memory reliability and bandwidth. The module operates at 5600MHz and is ideal for systems that require error-correcting memory for data integrity in critical applications.

Key specifications

• Capacity: 16 GB
• Memory type: DDR5
• Form factor: UDIMM (Unbuffered DIMM)
• Speed: 5600 MHz (PC5-44800E)
• ECC: Yes
• Voltage: 1.1 V
• Pin count: 288-pin
• Module configuration: 2048M x 72
• Chip organization: x8
• Compatibility: Supermicro X13SAW-F

Why choose it

This memory module is specifically validated for the Supermicro X13SAW-F motherboard, ensuring seamless integration and stable operation. ECC support detects and corrects single-bit memory errors, reducing the risk of data corruption in servers and workstations. DDR5 technology offers higher bandwidth and lower power consumption compared to previous generations.

Ideal use cases

• Upgrading a Supermicro X13SAW-F server or workstation
• Building a new system with ECC memory requirements
• Replacing faulty or insufficient memory in existing setups

Good to know

The module is unbuffered, which is suitable for single-processor systems that do not require registered memory. It operates at the standard DDR5 voltage of 1.1V, contributing to energy efficiency. The 288-pin design is standard for DDR5 UDIMMs.
