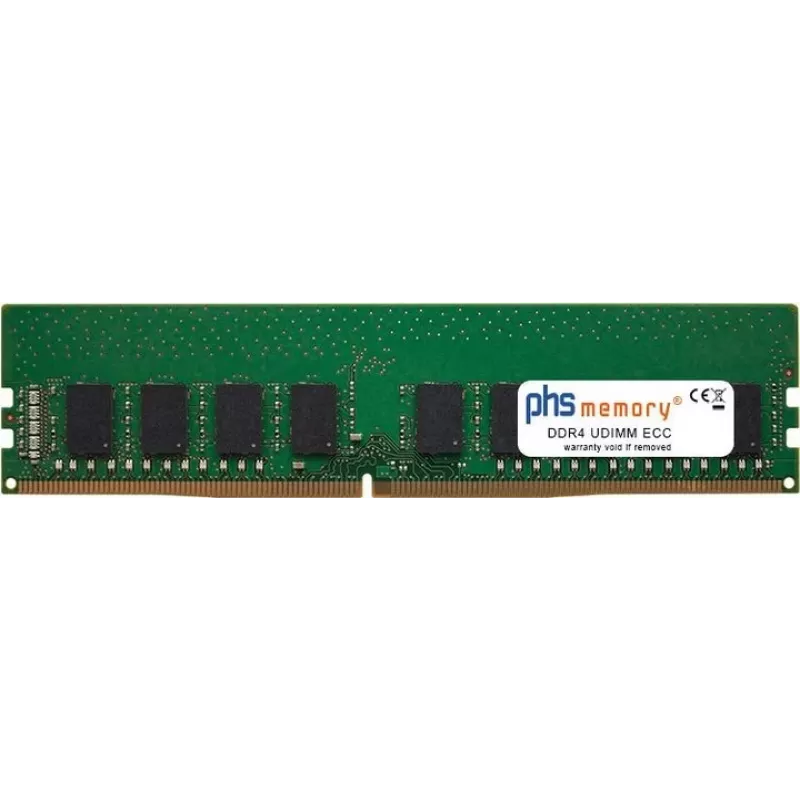

PHS-memory 32GB DDR4 ECC UDIMM 3200MHz PC4-25600E RAM para ASRock IMB-X1314 SP538222

This 32GB DDR4 ECC UDIMM module is specifically validated for the ASRock IMB-X1314, offering a reliable upgrade path for server and workstation platforms that require error-correcting memory. Unlike standard desktop DIMMs, it combines unbuffered architecture with ECC to detect and correct single-bit errors, reducing the risk of data corruption in always-on systems.

Highlights

• 32GB capacity in a single module
• DDR4 3200MHz (PC4-25600E)
• ECC UDIMM (unbuffered with error correction)
• 288-pin DIMM form factor
• 1.2V standard voltage
• Dual rank (2Rx8) for stable operation

In daily use

Install this module into the ASRock IMB-X1314 or any compatible motherboard that supports DDR4 ECC UDIMMs. The 3200MHz speed ensures responsive performance for virtualization, database, and memory-intensive applications. ECC functionality provides an extra layer of data integrity, making it suitable for small servers and workstations where uptime matters.

Full specifications

• Memory capacity: 32 GB
• Memory type: DDR4
• Module type: UDIMM (Unbuffered DIMM)
• Error correction: ECC
• Speed: 3200 MHz
• PC rating: PC4-25600E
• Pin count: 288-pin
• Voltage: 1.2 V
• CAS latency: CL22
• Rank: Dual Rank (2Rx8)
• Chip organization: x8
• Application: Server / Workstation
• Compatibility: ASRock IMB-X1314 and other compatible DDR4 UDIMM ECC systems
• Form factor: DIMM
• Number of modules: 1
• Buffered/Registered: Unbuffered
• Heat spreader: No
• LED lighting: No
• JEDEC standard: Yes
• Operating temperature: 0°C to 85°C

Final note

For systems that demand both performance and data integrity, this PHS-memory module delivers a straightforward, validated upgrade.
