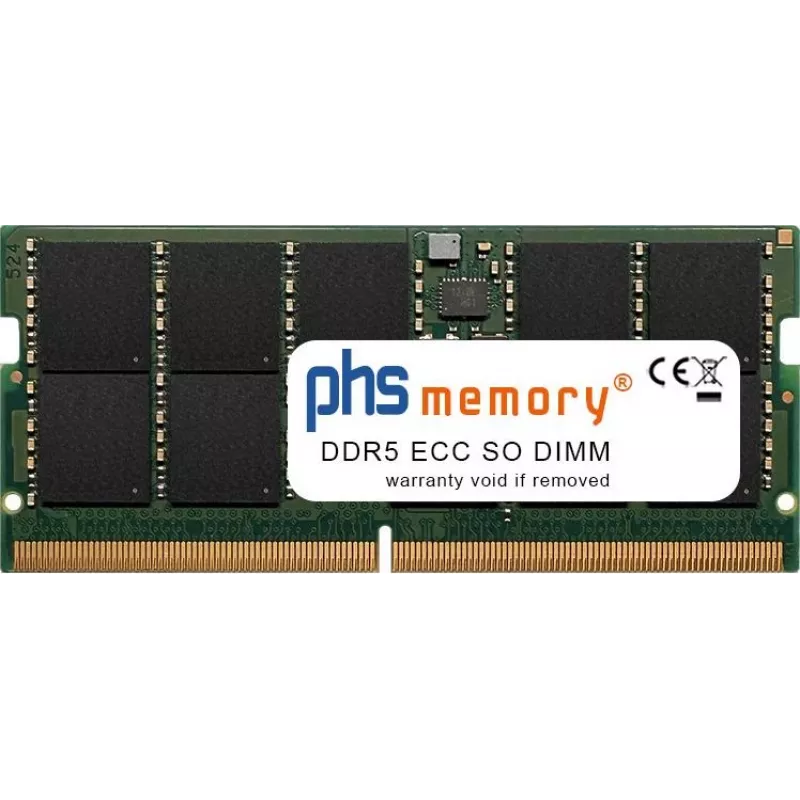

PHS-memory 32GB DDR5 ECC SO-DIMM 5600MHz PC5-44800E RAM para Kontron Mini-ITX K3836-Q/R SP597149

With a blistering 44.8 GB/s data transfer rate, this 32GB DDR5 ECC SO-DIMM module delivers uncompromising reliability and speed for demanding industrial and embedded systems. Engineered specifically for Kontron Mini-ITX K3836-Q/R motherboards, it combines error-correcting code (ECC) with the latest DDR5 architecture to protect your critical data and keep operations running smoothly.

Overview

PHS-memory presents a high-performance memory solution tailored for server, workstation, and industrial PC environments. This single 32GB module operates at 5600MHz and adheres to the PC5-44800E standard, ensuring compatibility with the latest DDR5 platforms. Its SO-DIMM form factor and 262-pin design make it ideal for compact systems where space is at a premium, while the unbuffered ECC (UDIMM ECC) classification provides an extra layer of data integrity without the overhead of registered memory.

What stands out

• ECC error correction safeguards against data corruption in mission-critical applications.
• Dual-rank (2Rx8) configuration with x8 chip organization optimizes performance and capacity.
• On-Die ECC (ODECC) enhances internal data reliability, a standard feature of DDR5 DRAM.
• Low 1.1V operating voltage reduces power consumption and heat generation.
• RoHS compliant and lead-free, meeting modern environmental standards.
• Commercial operating temperature range (0°C to 85°C) suits a variety of industrial settings.

Technical details

• Capacity: 32 GB
• Memory type: DDR5
• Module type: SO-DIMM
• Speed: 5600 MHz (PC5-44800E)
• ECC: Yes
• Pin count: 262-pin
• Voltage: 1.1V
• Module rank: Dual Rank (2Rx8)
• Data transfer rate: 44.8 GB/s
• On-Die ECC: Yes
• Chip organization: x8
• Operating temperature: 0°C to 85°C
• Compliance: RoHS
• Compatibility: Kontron Mini-ITX K3836-Q/R

Our verdict

For integrators and system builders working with Kontron Mini-ITX K3836-Q/R boards, this PHS-memory module is a perfect match. It delivers the speed, capacity, and ECC protection needed for stable, long-term operation in embedded and industrial environments. The combination of DDR5 efficiency and error correction makes it a smart investment for reliability-focused projects.
