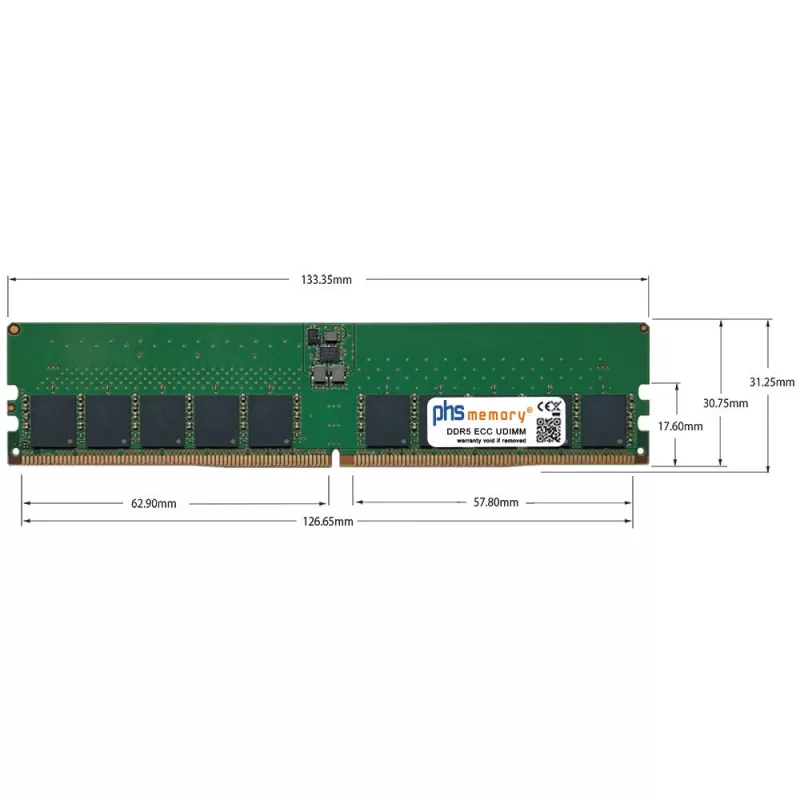

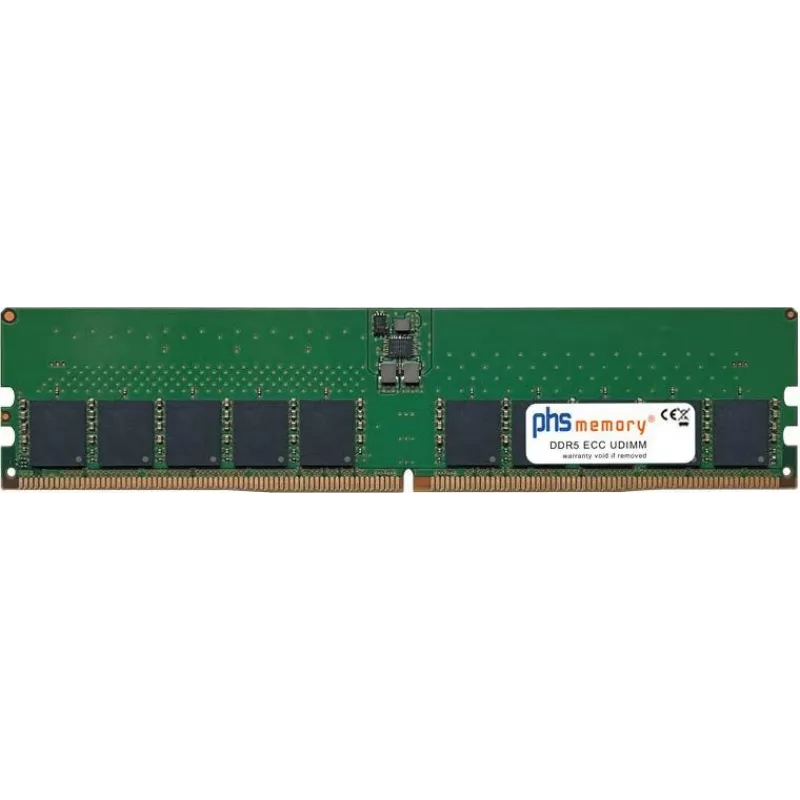

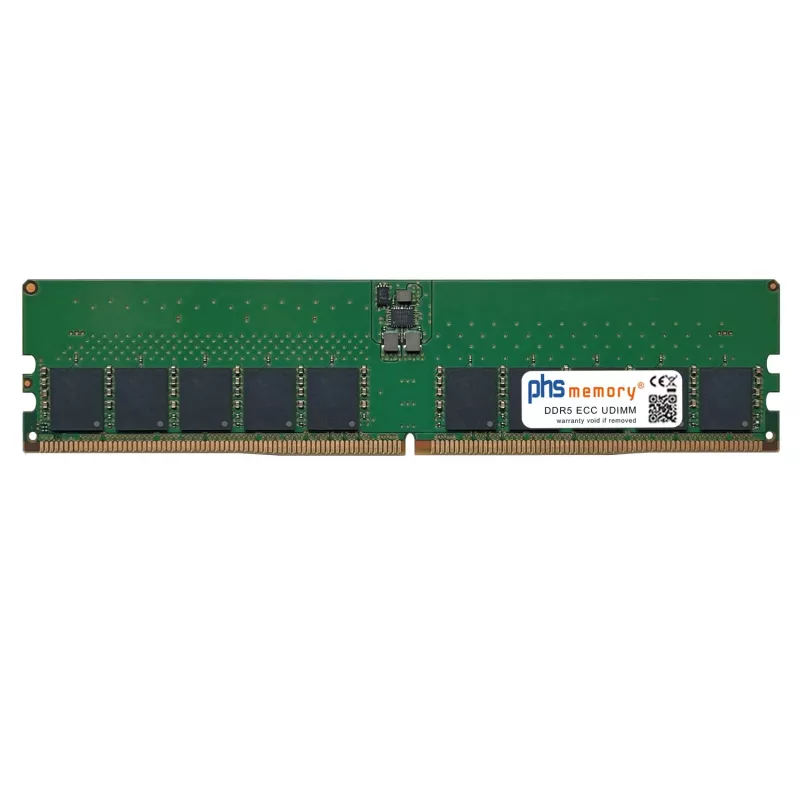

PHS-memory 48GB DDR5 ECC UDIMM 5600MHz PC5-44800E RAM para ASRock Rack W680D4ID-2T/G5/X550 SP570357

When your ASRock Rack W680D4ID-2T/G5/X550 motherboard needs reliable, high-capacity memory for server or workstation workloads, this PHS-memory 48GB DDR5 ECC UDIMM module delivers the stability and performance required for data integrity and 24/7 operation.

Who is it for

System builders and IT administrators running ASRock Rack W680D4ID-2T/G5/X550-based servers or workstations who need unbuffered ECC memory with high density and speed for virtualization, database, or compute-intensive tasks.

Main features

• 48GB capacity in a single module, allowing large memory configurations.
• DDR5 technology with 5600MHz speed for high bandwidth.
• ECC (Error-Correcting Code) detects and corrects single-bit errors, enhancing data reliability.
• Unbuffered DIMM (UDIMM) design, ideal for entry-level servers and workstations.
• 288-pin form factor, standard for DDR5 DIMMs.
• 1.1V operating voltage, typical for DDR5, improving energy efficiency.
• PC5-44800E standard, indicating peak transfer rate of 44800 MB/s.
• Dual Rank configuration for balanced performance and compatibility.

Specifications

• Memory Capacity: 48 GB
• Memory Type: DDR5
• Module Type: UDIMM (Unbuffered DIMM)
• Error Correction: ECC
• Memory Speed: 5600 MHz
• PC Standard: PC5-44800E
• Pin Count: 288-pin
• Voltage: 1.1V
• Memory Form Factor: DIMM
• Memory Layout: 1 x 48GB
• Memory Ranking: Dual Rank
• Buffered/Unbuffered: Unbuffered
• Component for: Server / Workstation
• Compatibility: ASRock Rack W680D4ID-2T/G5/X550 Motherboard

Tips

Verify that your motherboard BIOS supports 48GB DDR5 ECC UDIMM modules. For optimal performance, install modules in matched pairs to utilize dual-channel architecture. Ensure adequate cooling, as server memory can generate heat under sustained load.
