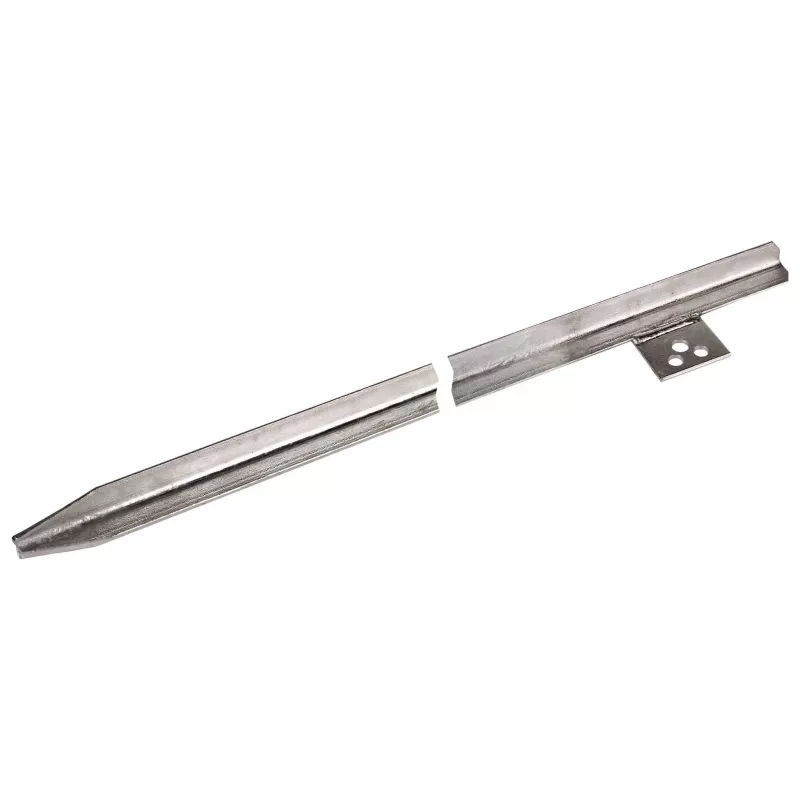

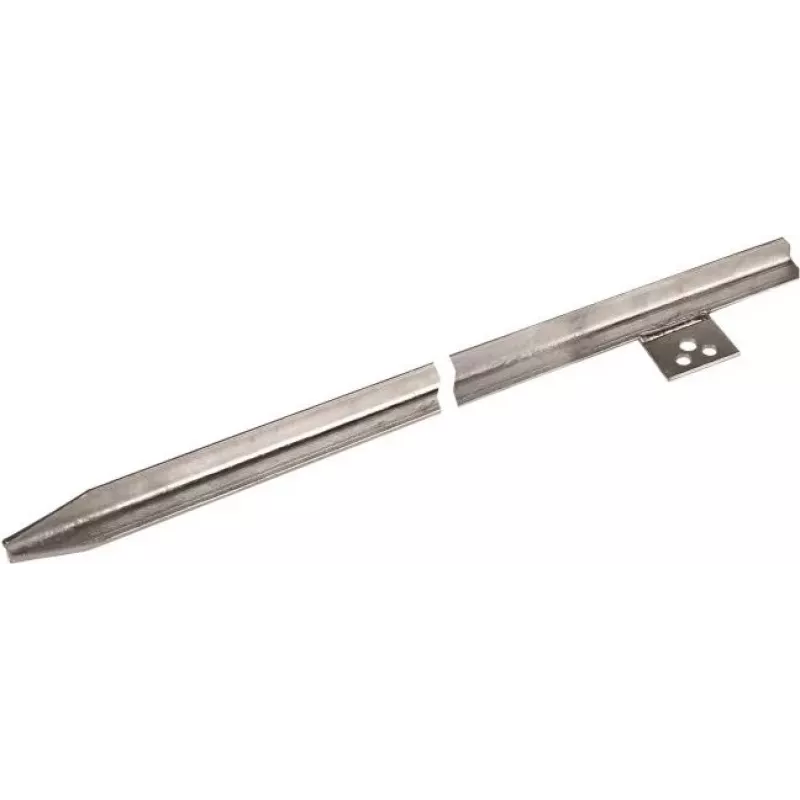

Pica de puesta a tierra de perfil DEHN St/tZn 50x50x3 L1500 635150

Electricians and lightning protection installers use this DEHN profile earthing rod to create a durable, low-resistance earth connection for buildings, photovoltaic systems, and industrial facilities. The angle profile design provides a large surface area for excellent contact with the soil, while the hot-dip galvanized steel construction ensures long-term corrosion resistance in aggressive ground conditions.

Key specifications

• Material: Steel (St)
• Surface treatment: Hot-dip galvanized (tZn)
• Profile shape: Angle profile (L-profile)
• Leg length 1: 50 mm
• Leg length 2: 50 mm
• Material thickness: 3 mm
• Total length: 1500 mm
• Standard compliance: DIN EN 62561-2 (VDE 0185-561-2)

Why choose it

The galvanized coating provides high corrosion resistance, ensuring reliable performance for decades even in moist or chemically active soils. The L-profile geometry offers mechanical strength and easy driving into the ground, while the 1500 mm length is suitable for most standard earthing applications.

Ideal use cases

• Earthing systems for buildings and structures
• Lightning protection equipotential bonding
• Grounding of photovoltaic and electrical installations
• Industrial earthing grids

Good to know

This earthing rod is part of the DEHN 635 series and is compatible with standard earthing clamps and connectors. It is intended for outdoor underground installation.
