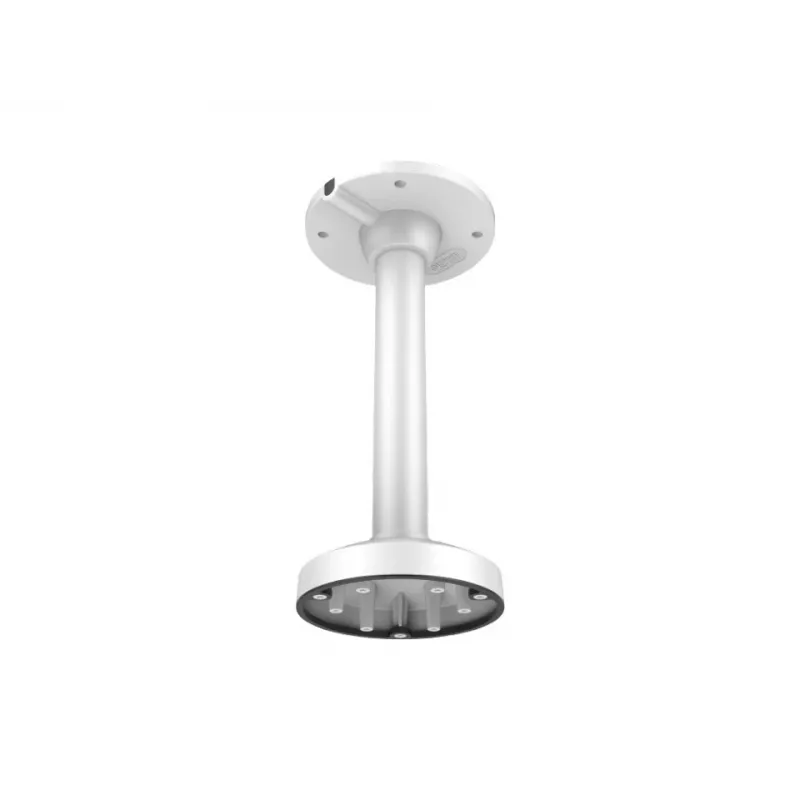

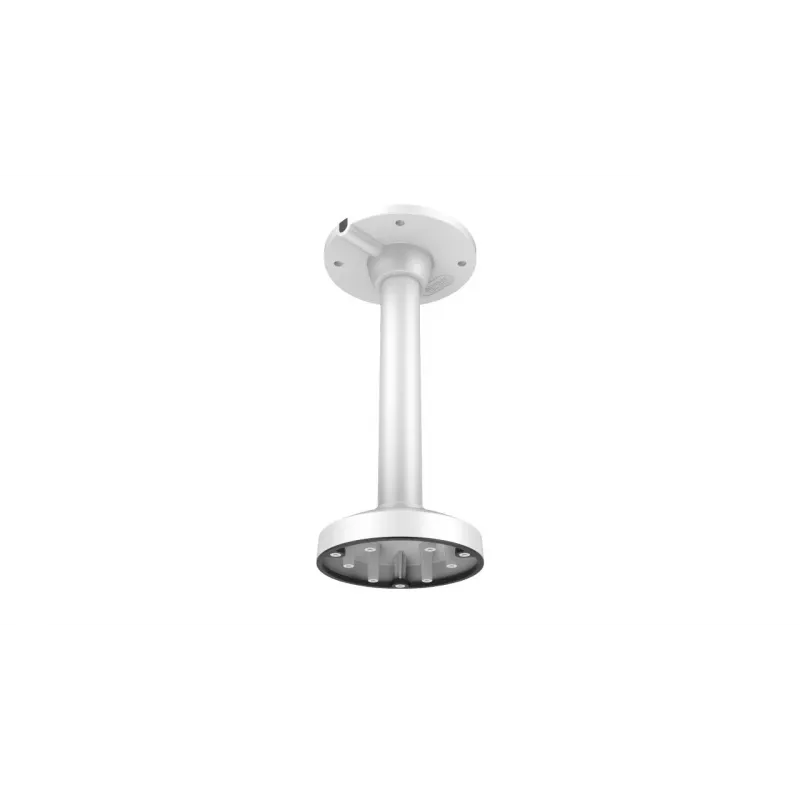

Pie de montaje Hikvision DS-1471ZJ-135

The Hikvision DS-1471ZJ-135 mounting foot is engineered for secure, professional installation of surveillance cameras. Designed to work with Hikvision camera models, this mounting foot provides a stable support with a maximum load capacity of 3 kg, a diameter of 13.6 cm and a height of 565 mm. Finished in white and weighing 1.35 kg, the bracket offers a compact, unobtrusive profile suitable for interior and exterior mounting where a fixed, elevated camera position is required.

Advantages

The mounting foot offers reliable mechanical strength for steady camera placement and is optimized for compatibility with Hikvision cameras. Its corrosion-resistant finish and lightweight construction simplify handling and installation. The geometry and dimensions provide consistent alignment and a professional appearance after installation.

Suitable for

• Fixed mounting of dome and bullet cameras within the supported weight limit
• Indoor and outdoor surveillance points requiring elevated camera positioning
• Retail, office, warehouse and residential security installations

Key specifications

• Maximum supported camera weight: 3 kg
• Outer diameter: 13.6 cm
• Overall height: 565 mm
• Net weight: 1.35 kg
• Color: white
• Material characteristics: lightweight, corrosion-resistant finish

How to use

Mount the DS-1471ZJ-135 mounting foot on a suitable flat surface using appropriate fasteners for the substrate (concrete, brick, metal or wood). Confirm that the selected camera does not exceed the 3 kg load limit. Position and secure the camera to the top plate of the mounting foot, connect cabling through the provided openings or conduit as required, and tighten all fasteners to the manufacturer-recommended torque to ensure stability. After installation, adjust camera orientation and verify that the bracket is stable and correctly aligned.

Recommendations

Use corrosion-resistant fasteners and appropriate sealants for outdoor installations. Ensure electrical and network connections comply with local regulations. Periodically inspect the mounting foot and fasteners for signs of wear, corrosion or loosening, and re-tighten or replace components as needed to maintain secure camera installation.
