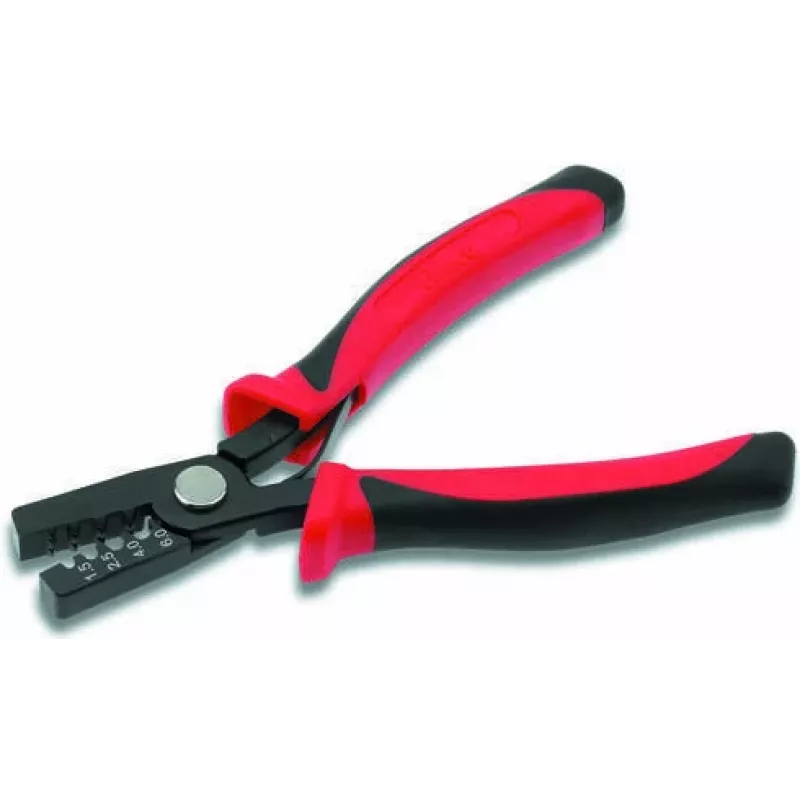

Pinza de crimpar cables Cimco 10 1907 negro rojo

The Cimco 10 1907 hand crimping pliers are designed for crimping insulated, non-insulated and twin wire end ferrules with an indent crimp. The tool features interchangeable crimping profile inserts that are fixed by a catch holder in the tool body, allowing profile changes in seconds without additional tools. Two spare profiles are retained in integral magazine holders. The body is made from specially tempered, hardened sheet steel with a leverage transfer mechanism to reduce manual force. An adjustable ratchet mechanism with automatic release ensures consistent, standards-compliant crimping pressure. The pliers are equipped with ergonomic two-component handle sleeves and come complete with hardened precision crimping profile inserts. Total weight with three inserts is approximately 690 g and overall length is 150 mm.

Advantages

Interchangeable crimping profiles for quick changeover without tools, captive spare profiles stored in the tool, sturdy hardened steel body for durability, leverage transfer to lower required hand force, an adjustable ratchet with automatic release for repeatable crimp quality and ergonomic two-component handles for improved grip.

Suitable for

• Crimping insulated wire end ferrules
• Crimping non-insulated wire end ferrules
• Crimping twin (double) wire end ferrules
• Electrical panel assembly and terminal connections

Key specifications

• Crimp style: indent crimp
• Interchangeable hardened precision crimping profile inserts (three supplied)
• Material: specially tempered, hardened sheet steel body
• Length: 150 mm
• Weight (with three inserts): approximately 690 g
• Handle: ergonomic two-component sleeves
• Adjustable ratchet mechanism with automatic release for controlled crimp pressure

How to use

Select the appropriate crimping profile insert for the ferrule size and secure it in the catch holder. Insert the stripped conductor into the correct ferrule, position the ferrule in the crimping profile and squeeze the handles until the ratchet completes and releases. For a different ferrule size, change the profile insert by releasing the catch and replacing the insert; spare inserts can be retrieved from the integrated magazine holders.

Recommendations

Use the tool only with compatible insulated, non-insulated or twin ferrules of the correct size. Adjust the ratchet setting if necessary to match conductor and ferrule specifications. Store the pliers dry and clean, and periodically check inserts for wear to maintain reliable crimp quality.
