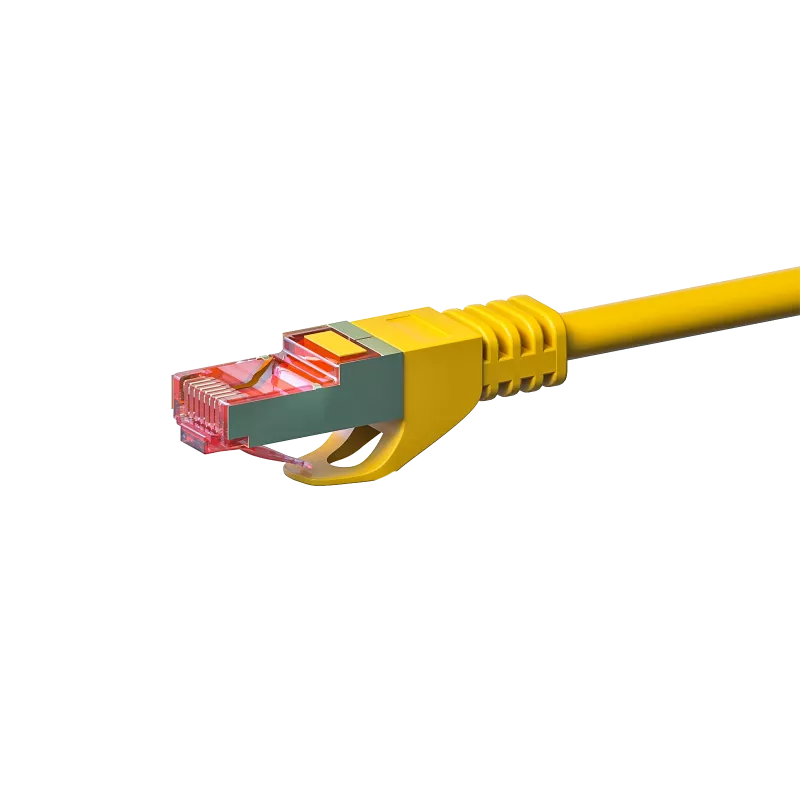

DSIT CAT 6 Cable de red LSOH - S/FTP - 10 metros - Amarillo (DC-S67-100)

When a standard patch cable is not enough, the DSIT CAT 6 S/FTP LSOH cable steps in with a screened, foil-wrapped construction that keeps crosstalk and interference at bay. Built for 10 Gigabit Ethernet over shorter runs, this 10-meter yellow cable delivers a stable 250 MHz of bandwidth, making it a solid choice for high-density network environments where signal integrity matters.

Highlights

• CAT 6 performance with S/FTP shielding (screened and foiled twisted pairs) for maximum noise immunity.
• LSOH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in the event of fire, ideal for public buildings and confined spaces.
• Pure copper stranded conductors (AWG 26/7) ensure flexibility and long-term reliability over solid-core alternatives.
• Gold-plated RJ45 contacts resist corrosion and maintain consistent connectivity through repeated insertions.
• Supports 10GBASE-T up to 55 meters and Gigabit Ethernet up to 100 meters, with a 250 MHz bandwidth rating.

In daily use

This cable is built for demanding installations: server rooms, patch panels, and workstation connections where electromagnetic interference from power lines or other equipment could degrade performance. The stranded copper core allows tight bends without breaking, while the LSOH jacket remains flexible in cool environments. The yellow jacket also makes cable identification quick in crowded racks or cable trays.

Full specifications

• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 10 meters
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male, straight orientation
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: 250 MHz
• Conductor material: Pure copper, stranded
• Conductor gauge: AWG 26/7
• Wiring standard: TIA/EIA-568B
• Connector plating: Gold-plated contacts
• Impedance: 100 Ohm
• Number of pairs: 4 twisted pairs
• Outer diameter: approx. 6.0 mm
• Compliance: RoHS, CE
• Application: Ethernet, LAN, network devices

Final note

For installations where safety and performance go hand in hand, the DSIT CAT 6 S/FTP LSOH cable is a dependable link that meets both technical and fire-safety standards without compromise.
