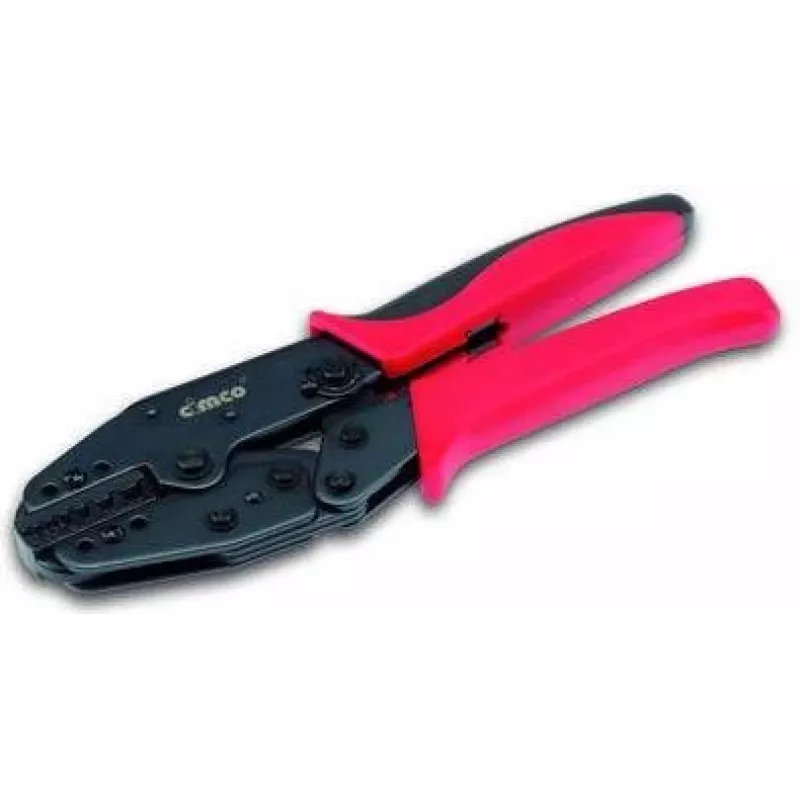

Pinza de crimpar cables Cimco 10 6120 pinza de crimpar negro rojo

Crimping pliers Cimco 10 6120 are a compact crimping tool designed for reliable and precise crimping of wire end ferrules and electrical connectors. The tool features interchangeable hardened crimping profile inserts held in a catch holder, an adjustable ratchet mechanism with automatic release to ensure standard-compliant crimping pressure, and a compound-leverage design that reduces manual effort. The pliers come fully equipped with three hardened precision inserts, ergonomic two-component handle sleeves and a robust tempered sheet-steel body; weight with three inserts is 690 g and overall length is 226 mm.

Advantages

The Cimco 10 6120 provides quick profile changes thanks to interchangeable inserts fixed by a catch holder, captive storage for two spare profiles in integral magazine holders, and a ratchet with pressure-point release for consistent crimps. Compound leverage lowers the force required for crimping, while the hardened tool body and precision inserts ensure durable, repeatable results. Ergonomic handle sleeves improve grip and control during extended use.

Suitable for

• Crimping wire end ferrules on single and multi-core cables
• Applying insulated and uninsulated electrical connectors
• Electrical installation, control cabinet wiring and maintenance work
• Professional electricians and informed DIY users requiring reliable crimps

Key specifications

• Brand: cimco
• Model / MPN: 106120
• EAN: 4021103061206
• Type: Compound-leverage crimping pliers with ratchet and adjustable locking (pressure point release)
• Length: 226 mm
• Weight (with 3 inserts): 690 g
• Material: Tempered, hardened sheet steel body; hardened precision crimping inserts
• Handles: Ergonomic two-component sleeves

How to use

Select the appropriate crimping profile insert for the ferrule or connector and secure it in the tool's catch holder. Insert the stripped wire with the ferrule or connector into the crimping die, close the pliers until the ratchet mechanism completes the stroke and automatically releases at the preset crimping pressure. If necessary, adjust the ratchet setting to meet specific crimping force requirements. Spare inserts are stored in the integral magazine holders and can be changed quickly without additional tools.

Recommendations

Use the tool only on connectors and ferrules specified for manual crimping; strip wire to the correct length before crimping and verify crimps visually and, where required, with electrical continuity or pull tests. Keep the crimping profiles clean and free of deformation; replace damaged inserts to maintain reliable connections.
