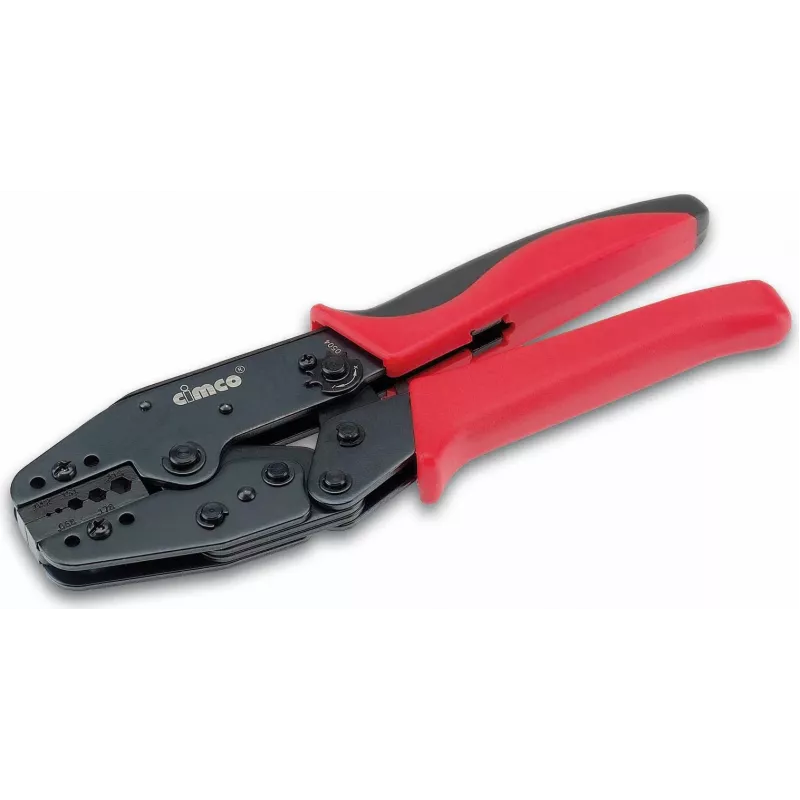

Pinza de crimpar cables Cimco 10 6144 herramienta de crimpado negro rojo

Crimping pliers for insulated cable lugs with compound leverage, ratchet mechanism and adjustable locking (pressure point release). The tool includes interchangeable, hardened precision crimping profile inserts held in a catch holder within the tool body and two additional profile inserts stored in integral magazine holders on the plier legs. The body is manufactured from specially tempered, hardened sheet steel with leverage transfer to reduce manual force. The tool is supplied complete with three crimping profile inserts and weighs approximately 690 g. Length 220 mm; suitable for reliable, repeatable crimps on insulated cable lugs.

Advantages

The Cimco 10 6144 features a ratchet mechanism with automatic release for consistent, standard-compliant crimping pressure and an adjustable locking (pressure point release) for controlled opening. Interchangeable crimping profile inserts allow quick profile changes without additional tools, while two spare profiles are retained in built-in magazine holders. The two-component ergonomic handle sleeves improve grip and comfort. Hardened tool body and precision inserts provide durability and consistent crimp quality.

Suitable for

• Crimping insulated cable lugs and ferrules
• Electrical installation and maintenance work
• Workshop and professional use where repeatable crimps are required
• DIY electrical projects requiring durable, standard-compliant connections

Key specifications

• Brand: cimco
• Model / MPN: 106144
• EAN: 4021103061442
• Type: Cable crimper with interchangeable profile inserts
• Length: 220 mm
• Weight: approx. 690 g (with 3 profile inserts)
• Material: specially tempered, hardened sheet steel body; hardened precision inserts
• Features: compound leverage, ratchet mechanism with automatic release, adjustable locking (pressure point release), ergonomic 2-component handles, magazine holders for spare profiles

How to use

Select the appropriate crimping profile insert for the cable lug and insert it into the catch holder until it locks. Place the insulated cable lug into the crimping profile, close the handles until the ratchet completes the crimp and automatically releases at the preset pressure. Use the adjustable locking to set or release the pressure point as needed. Spare profile inserts can be stored in the built-in magazine holders on the plier legs and swapped quickly without additional tools.

Recommendations

Inspect crimped connections visually and, if applicable, by pull test to ensure proper mechanical and electrical contact. Keep the tool and inserts clean and store in a dry place to maintain precision and longevity. Do not use the tool for cutting or as a hammer; use only for the intended crimping profiles and cable lug types.
