Placa adaptadora para fibra óptica Unibox Digitus DN-96803S-2

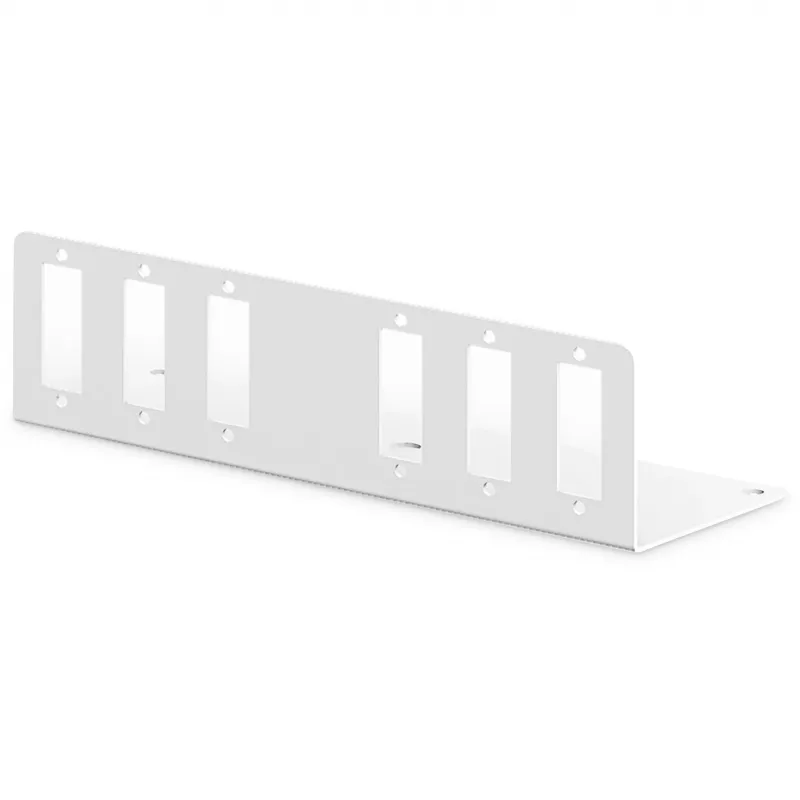

Adapter plate for fiber optic Unibox, designed for wall mounting. The compact steel plate accepts multiple fiber optic couplings to redistribute and forward fiber connections within a patch or distribution box. Its small footprint and lightweight construction make it suitable for confined installations where organized fiber termination is required.

Advantages

The plate supports up to 6x SC Duplex or LC Quad couplings and is made from sturdy cold-rolled sheet steel for mechanical stability. It attaches directly to the Unibox via a threaded screw and is secured with a lock nut, providing a simple and secure mounting method. Its compact dimensions and low weight simplify installation and reduce space usage inside the enclosure.

Suitable for

• Wall-mounted Unibox fiber distribution points
• Indoor fiber patching and redistribution
• Compact network closets and confined installation spaces

Key specifications

• Compatible couplings: SC Duplex (up to 6) and LC Quad
• Material: cold-rolled sheet steel
• Dimensions (W×H×D): 145 mm × 40 mm × 50 mm
• Weight: 95 g
• Mounting: attaches to Unibox via threaded screw and lock nut
• Intended use: wall-mounted fiber optic Unibox

How to use

Place the desired fiber optic couplings into the adapter plate openings and position the plate onto the Unibox threaded screw. Tighten the lock nut to secure the plate to the Unibox. Route and terminate fiber cables into the installed couplings according to standard fiber handling and termination procedures.

Recommendations

Handle fiber connectors and cables with care to avoid contamination and damage. Ensure the lock nut is tightened sufficiently to prevent movement but avoid over-torquing that could deform the plate. Use suitable dust caps on unused couplings and perform connector cleaning before final connection.
