VALUE Adaptador de fibra óptica SC simplex OM3 con brida

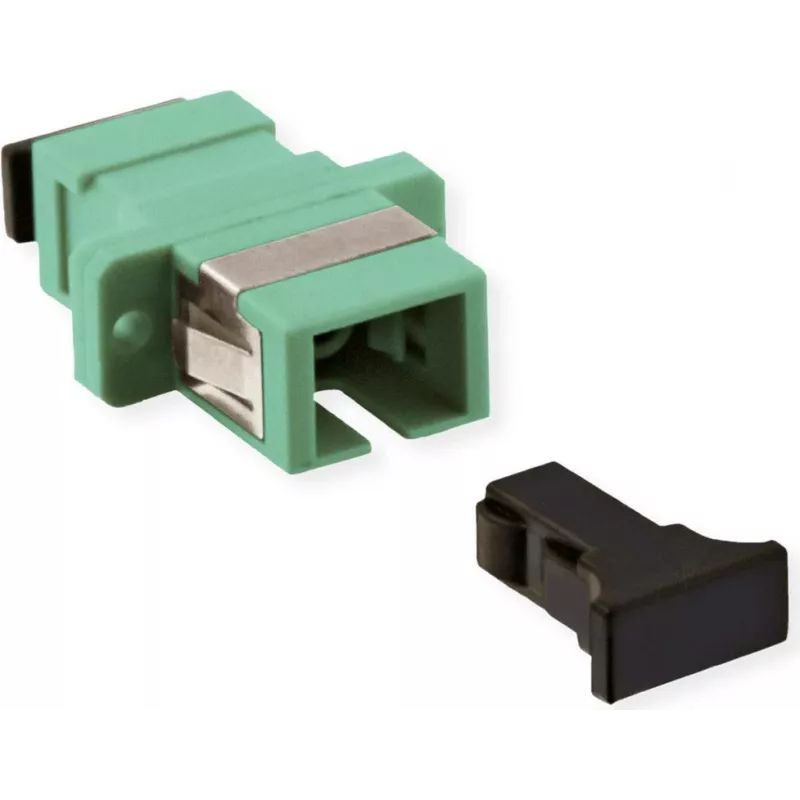

The LWL Adapter SC Simplex OM3 with Flange is a high-quality fiber optic adapter designed for reliable connections in multimode OM3 networks. It features a zirconia ceramic sleeve for precise alignment and low insertion loss, making it ideal for use in patch panels, ODFs, and wall outlets.

Advantages

This adapter ensures minimal signal loss (<0.3 dB) and high return loss (>30 dB), providing stable and efficient data transmission. The durable plastic housing and flange mounting allow for secure panel installation, while the black color offers a professional appearance.

Suitable for

• Fiber optic patch panels
• Optical distribution frames (ODFs)
• Wall outlets and termination boxes
• SC connector termination

Key specifications

• Connector type: SC Simplex
• Fiber mode: Multimode OM3
• Polishing type: PC (Physical Contact)
• Sleeve material: Zirconia ceramic
• Mounting: Flange / Panel mount
• Housing material: Plastic, color black
• Insertion loss: <0.3 dB
• Return loss: >30 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: >500 mating cycles
• Standards: RoHS, REACH

Recommendations

For optimal performance, use with OM3 multimode patch cables and ensure clean connector ends before mating. This adapter is suitable for high-speed data center and enterprise network applications.
