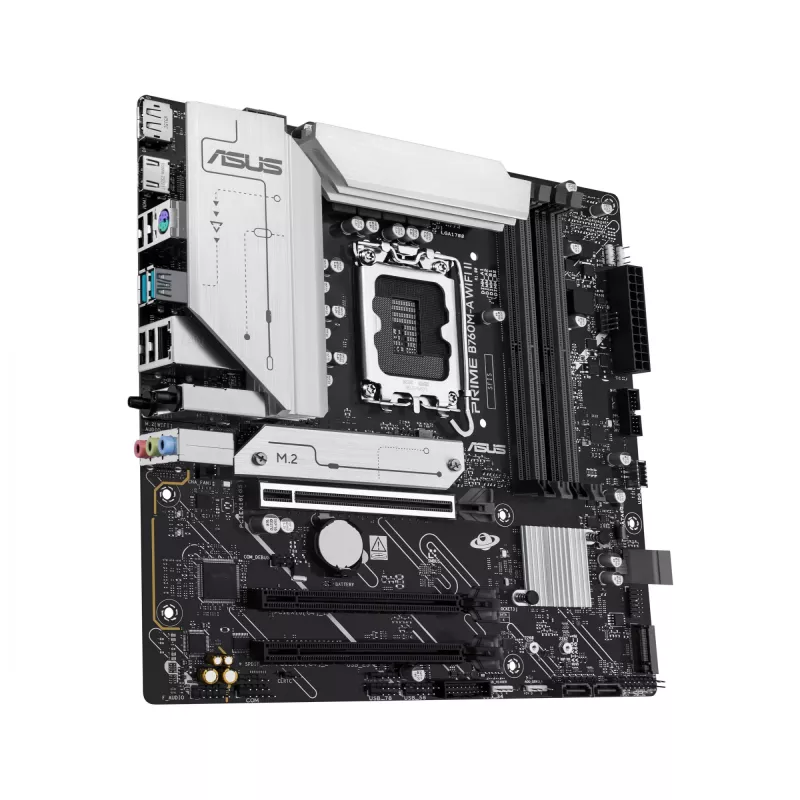

Placa base ASUS PRIME B760M-A WIFI II, micro ATX, Intel B760, LGA 1700, DDR5, 4 ranuras DIMM, hasta 256 GB, Wi-Fi 6E, 2,5Gb Ethernet

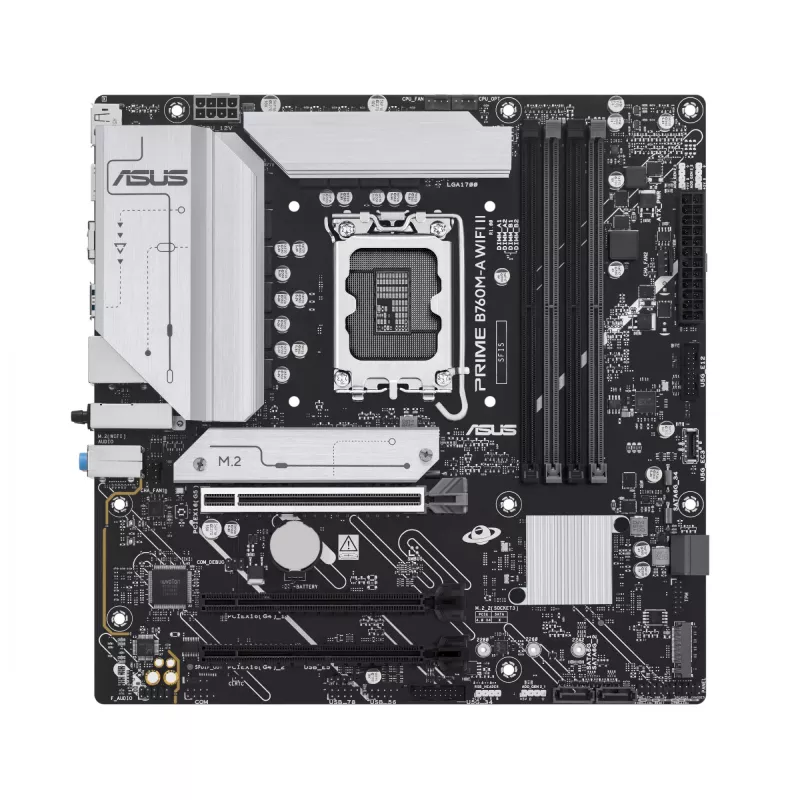

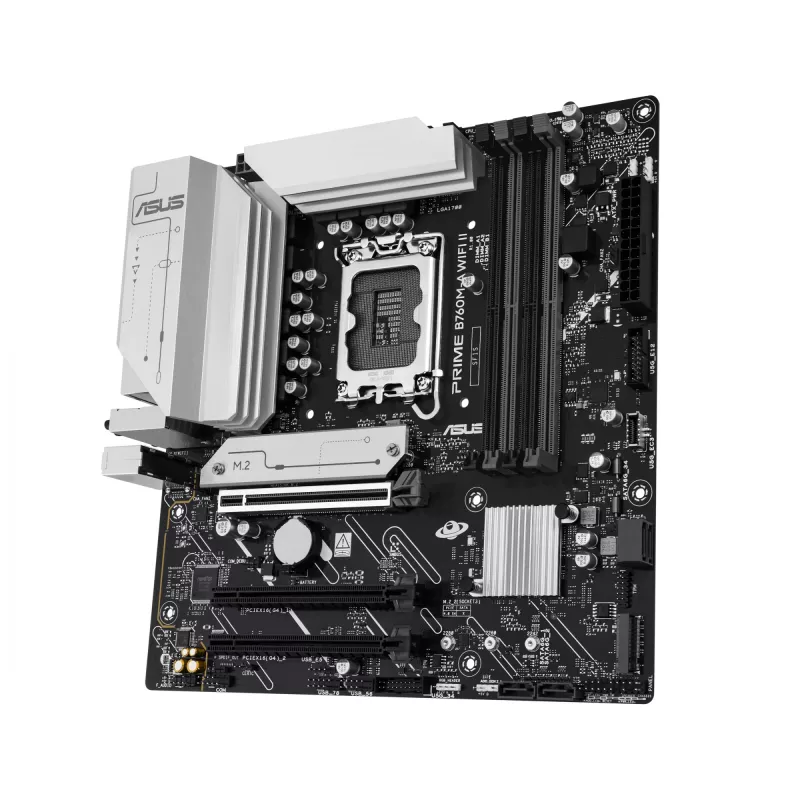

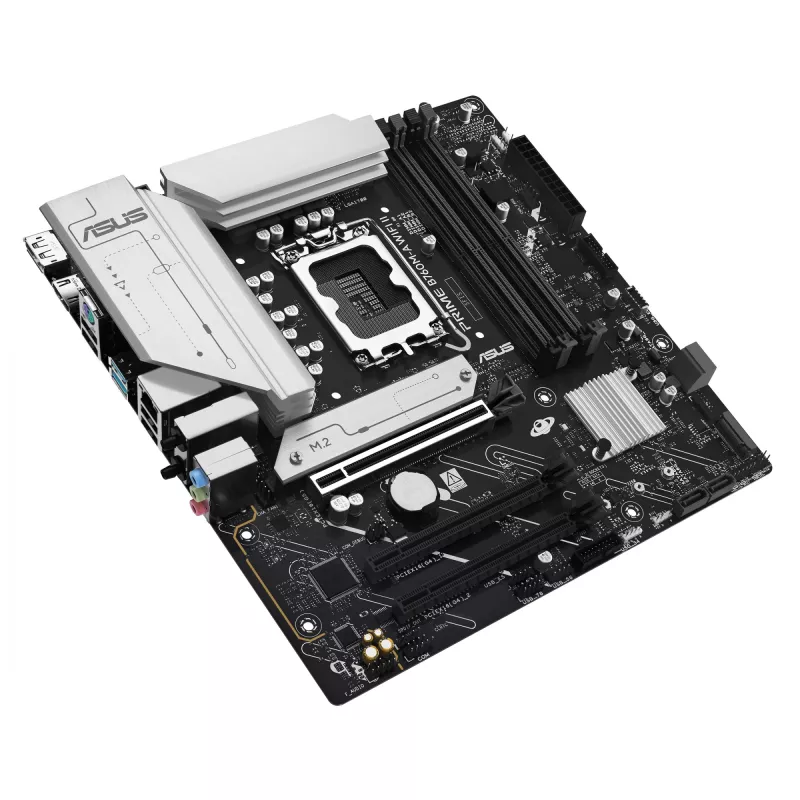

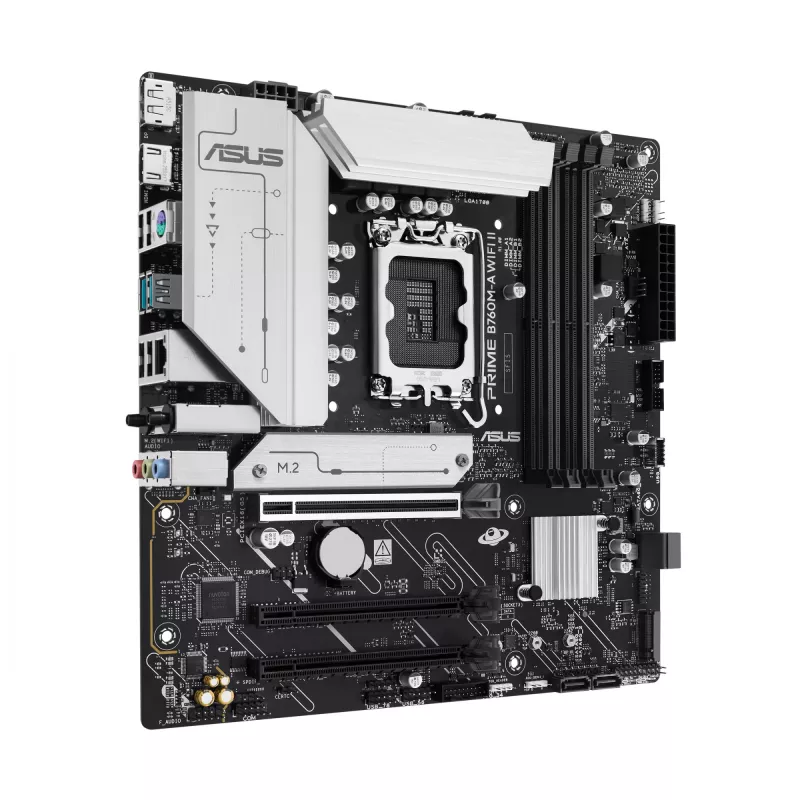

ASUS PRIME B760M-A WIFI II is a micro ATX motherboard designed for LGA 1700 Intel processors, supporting 12th, 13th and 14th Gen Intel Core and compatible Intel series. The board uses the Intel B760 chipset, provides four DDR5 DIMM slots with up to 256 GB total memory, M.2 and SATA III storage with RAID support, integrated 2.5 Gigabit Ethernet and Wi‑Fi 6E connectivity. It targets compact desktop builds that require modern connectivity, fast memory and flexible storage options.

Advantages

The motherboard offers a balanced combination of performance and connectivity for compact PCs: support for the latest LGA 1700 processors, DDR5 memory support up to 256 GB across four DIMM slots, and ultrafast networking with Wi‑Fi 6E and 2.5 Gb Ethernet. Storage flexibility includes multiple M.2 slots and SATA III with RAID levels, while comprehensive cooling features and firmware/software tools enable system tuning and stable operation under load.

Suitable for

• Compact desktop builds (micro ATX) for home or office
• Systems requiring fast networking and Wi‑Fi 6E connectivity
• Multimedia or productivity PCs using DDR5 memory and NVMe storage
• DIY PC builders who need RAID-capable storage and flexible expansion

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 (supports 12th–14th Gen Intel Core and compatible Intel processors)
• Memory: 4× DDR5 DIMM slots, up to 256 GB total
• Storage: Multiple M.2 slots and SATA III ports with RAID 0/1/5/10 support; up to 6 storage drives supported

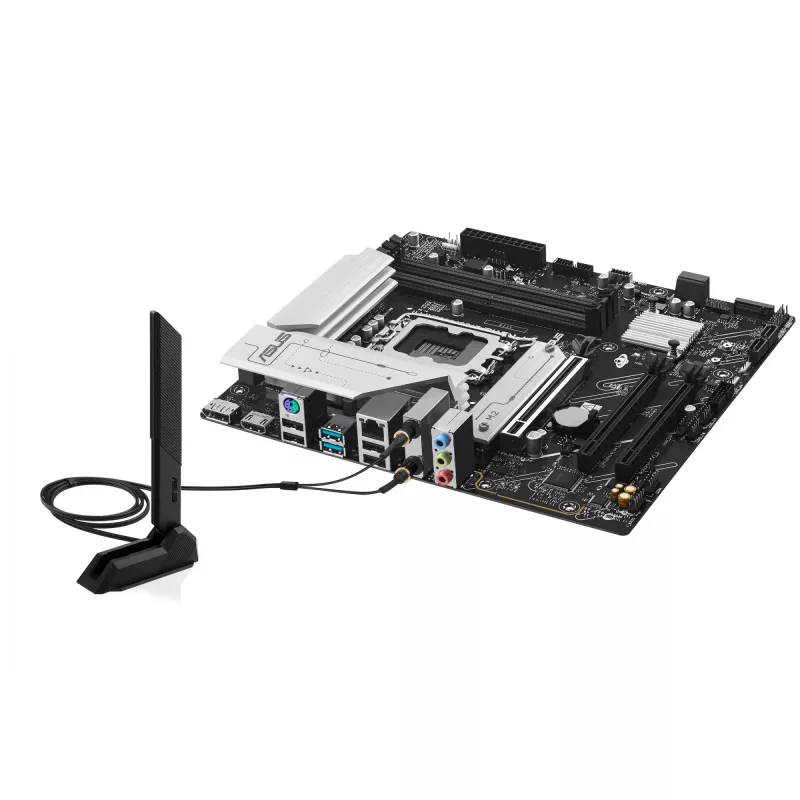

• Networking: Integrated 2.5 Gigabit Ethernet, Wi‑Fi 6E (802.11ax), Bluetooth 5.4
• Expansion: PCIe 5.0 support for compatible slots
• Audio: 7.1-channel onboard audio

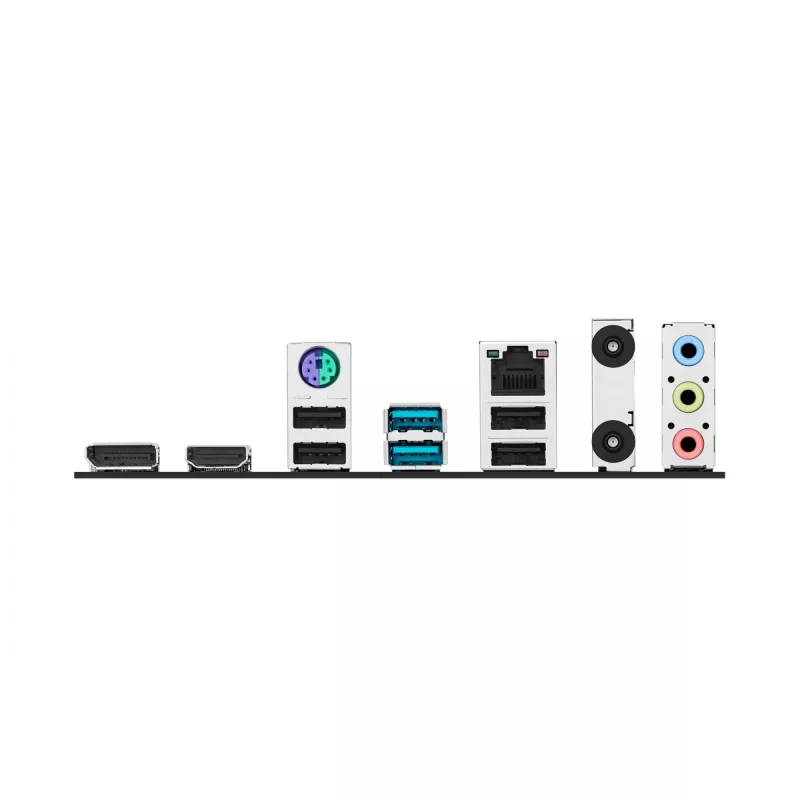

• Rear I/O: USB 10Gbps Type-A ports and front USB 5Gbps Type-C connector (via headers)
• Cooling: VRM and PCH heatsinks, hybrid fan headers and fan control software
• BIOS: UEFI AMI

How to use

Install the motherboard into a compatible micro ATX chassis and fit a supported LGA 1700 processor following the processor and motherboard manuals. Populate DDR5 DIMM slots with compatible memory modules, connect M.2 and SATA drives as required, and attach power connectors from a suitable PSU. Connect front-panel and rear I/O devices, configure RAID if needed in the UEFI BIOS, and install the operating system and drivers using ASUS utilities such as Armoury Crate or DriverHub for optimal system configuration.

Recommendations

For stable operation and best performance, use quality DDR5 memory modules tested for compatibility, a power supply that meets the system power requirements, and up-to-date BIOS and drivers. Ensure adequate case airflow and configure fan profiles in the firmware or Fan Xpert utility for sustained heavy loads.
