Placa base ASUS PRIME N100I-D D4, chipset Intel, sin socket, mini ITX

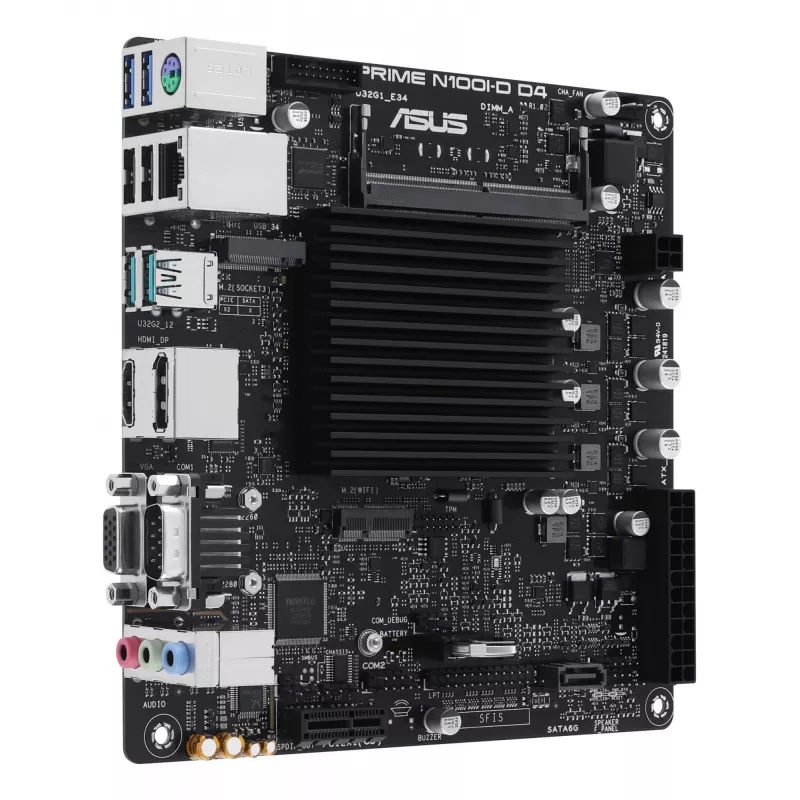

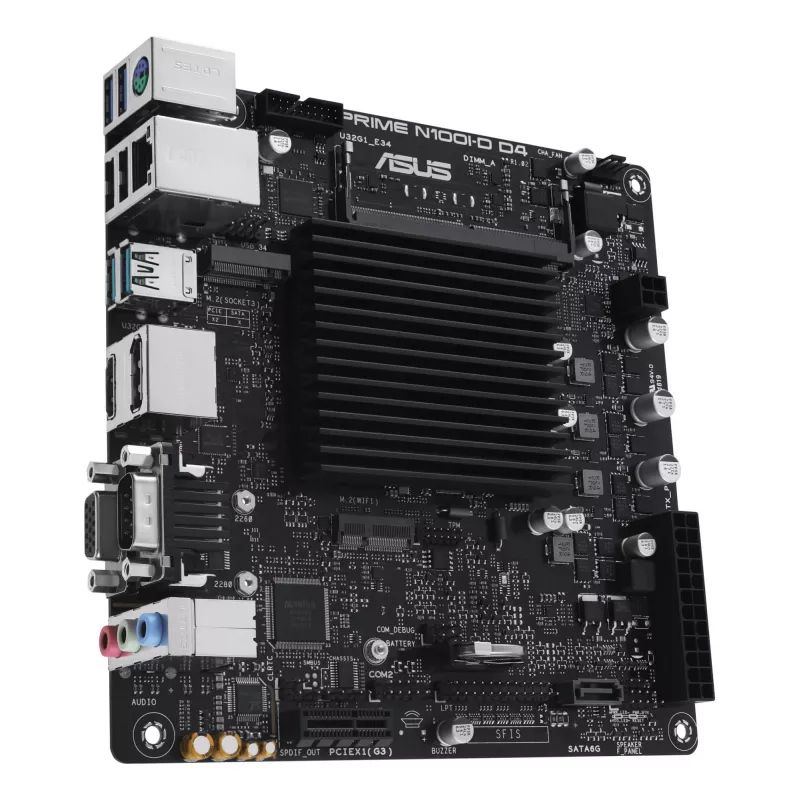

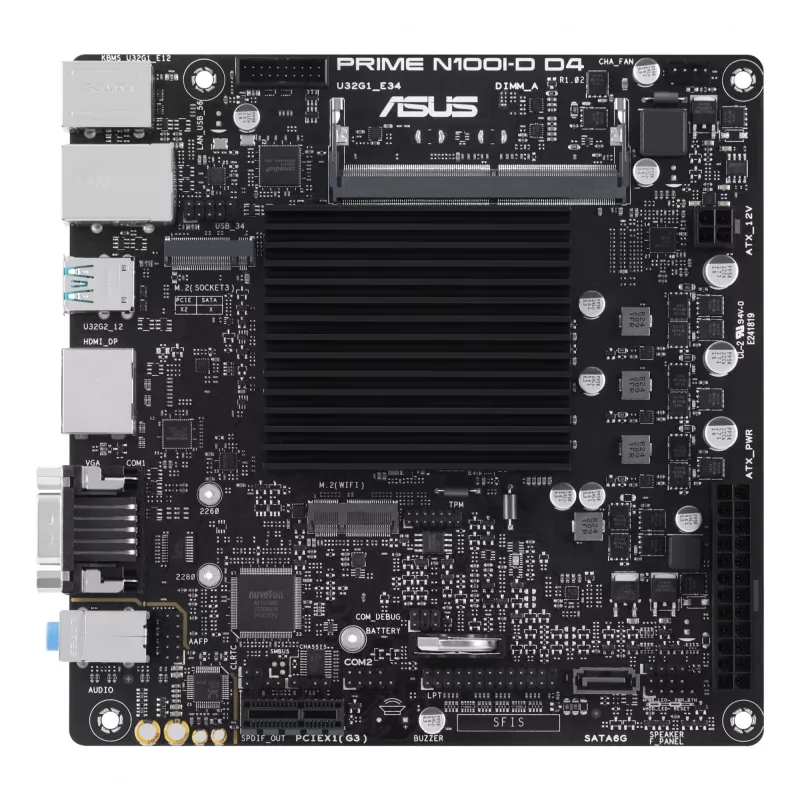

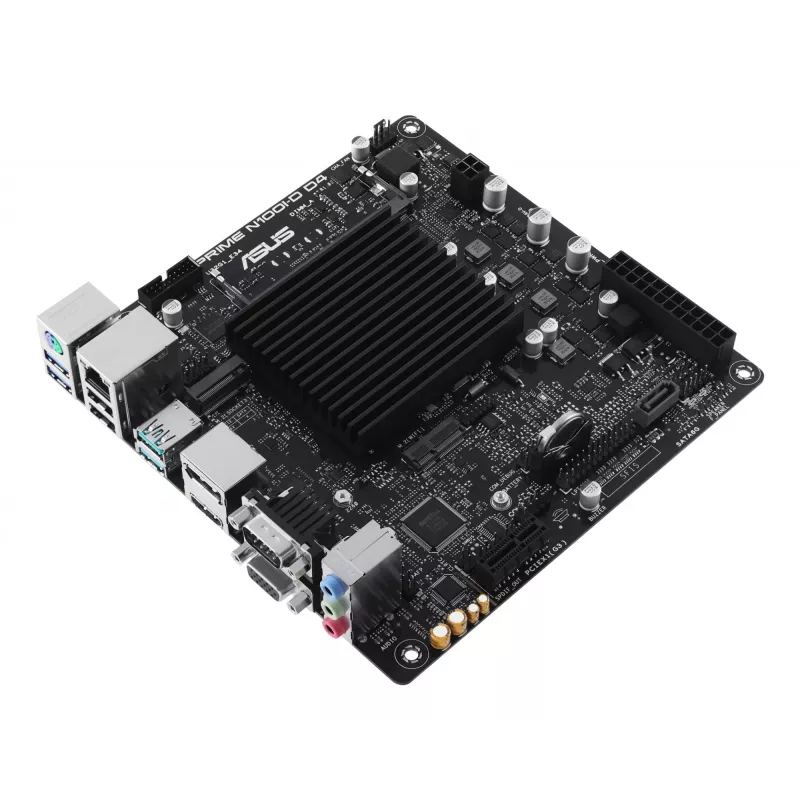

ASUS PRIME N100I-D D4 is a mini‑ITX motherboard designed for systems based on the Intel® Processor N100. The board delivers a compact platform with integrated CPU support, a single SO‑DIMM DDR4 slot for up to 16 GB of memory, M.2 and SATA III storage options, a PCIe x1 slot and Gigabit Ethernet connectivity for small form‑factor PC builds.

Advantages

The PRIME N100I-D D4 features a reinforced power design, onboard CPU heatsink with thermal pad and a chassis fan header to maintain stable operation under load. It combines essential I/O and storage interfaces — including M.2 and SATA III — with an efficient cooling layout and software/firmware tuning options to simplify system setup and optimization.

Suitable for

• Compact home or office PCs
• Mini‑ITX media centers and HTPCs
• Basic productivity and web‑based tasks
• Small DIY builds where space and power efficiency are priorities

Key specifications

• Form factor: Mini ITX
• Processor: Integrated Intel® Processor N100 (socket NA)
• Memory: 1 × SO‑DIMM DDR4, up to 16 GB
• Expansion: 1 × PCIe x1 (Gen 3.x)
• Storage: M.2 and SATA III interfaces
• Networking: Gigabit Ethernet

How to use

Install the motherboard into a compatible mini‑ITX case, fit DDR4 SO‑DIMM memory (up to 16 GB) into the single memory slot, and connect storage devices via the onboard M.2 slot or SATA III ports. Attach power and front‑panel connectors, connect the chassis fan to the provided header, and configure system settings through the firmware/UEFI. Install an operating system and device drivers to complete the setup.

Recommendations

For reliable thermal performance, ensure the CPU heatsink is properly seated with the thermal pad in place and provide adequate chassis airflow by using the chassis fan header. Use M.2 SSD for faster boot and application responsiveness when possible, and keep firmware and drivers up to date for stability and security.
