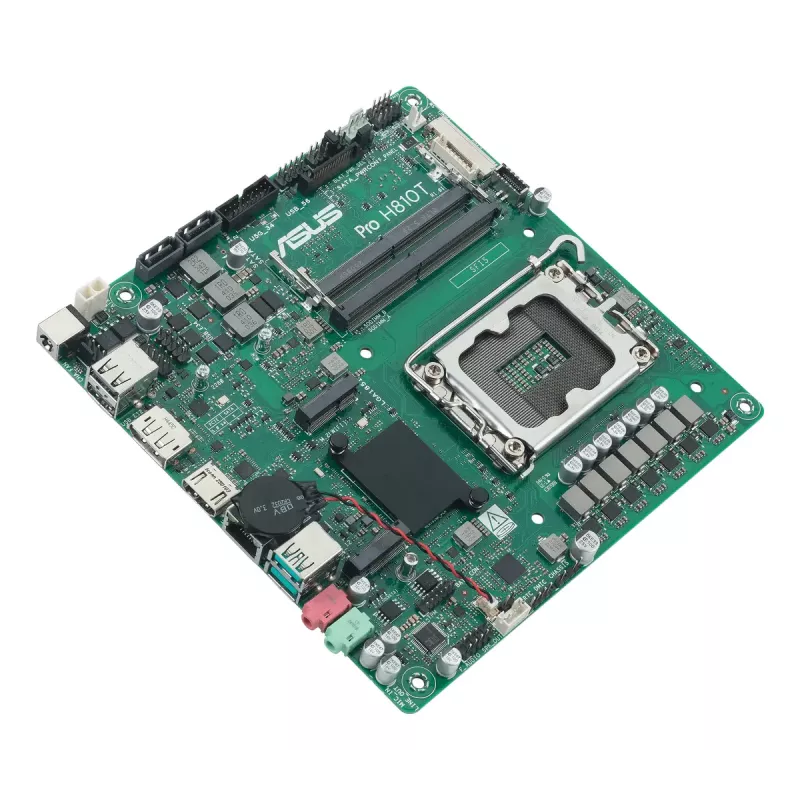

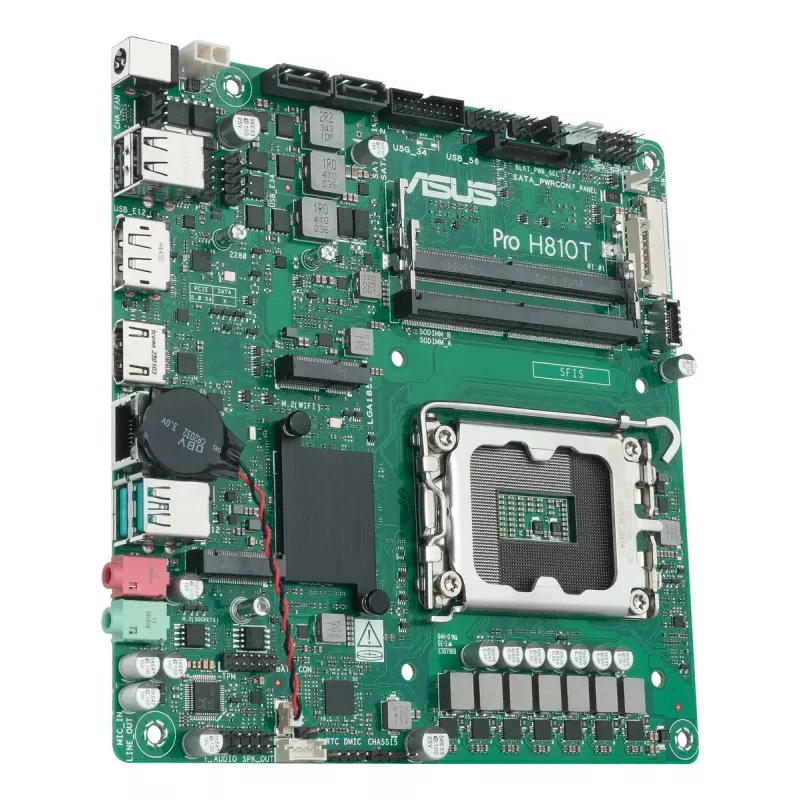

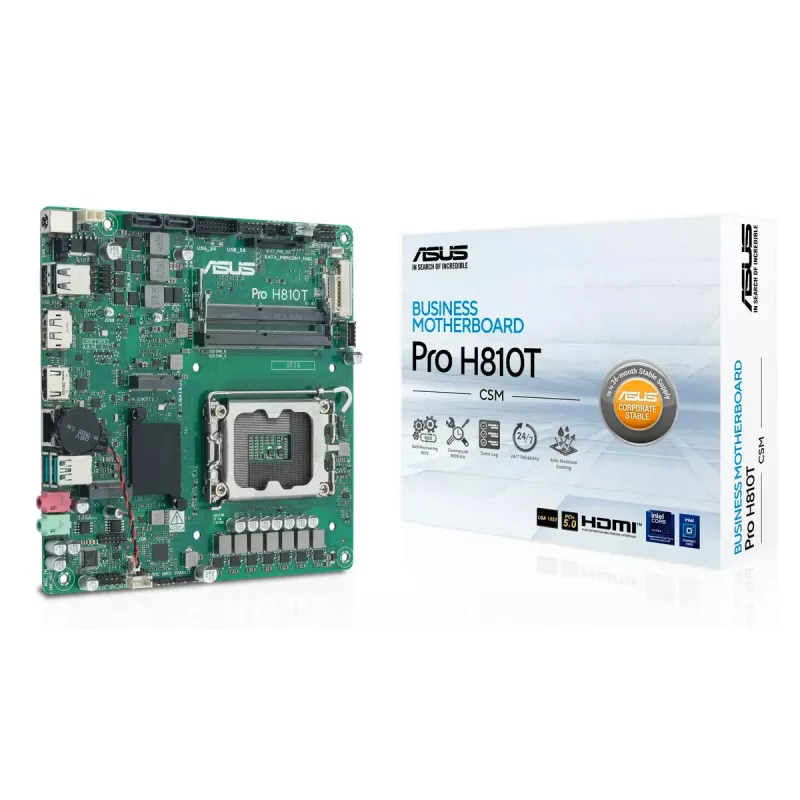

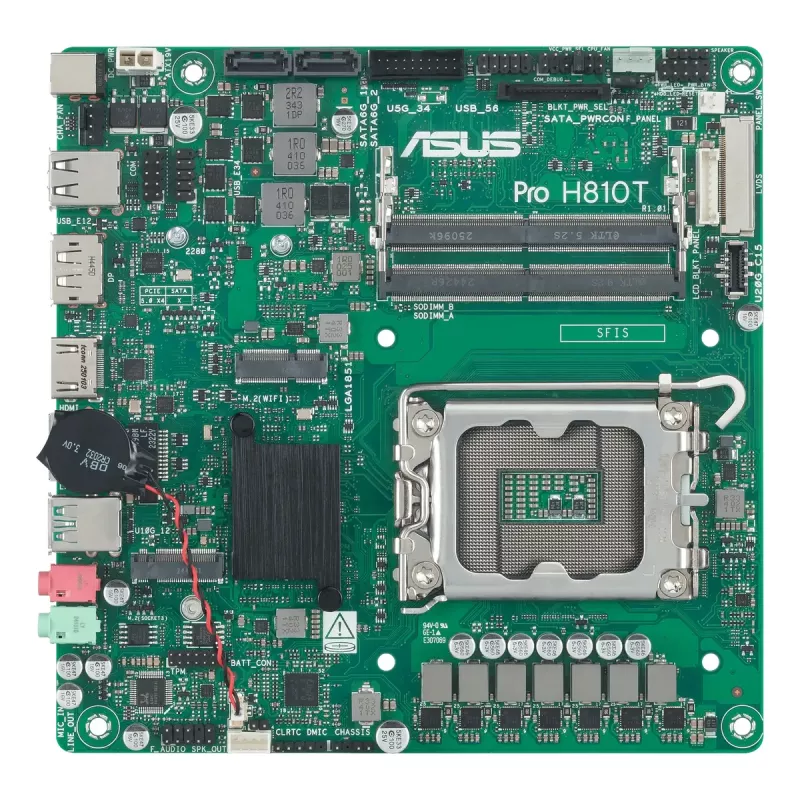

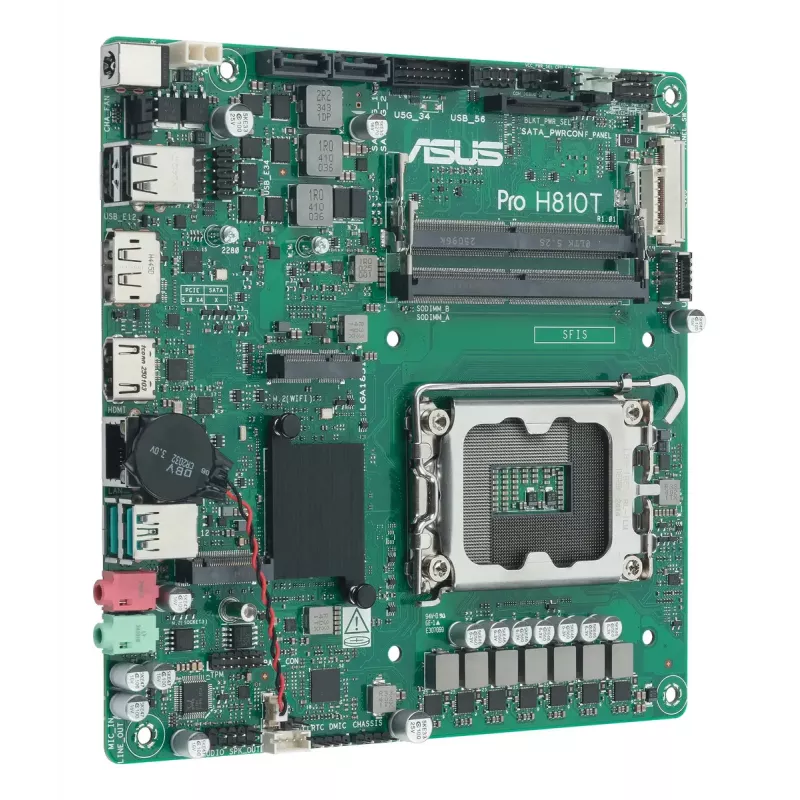

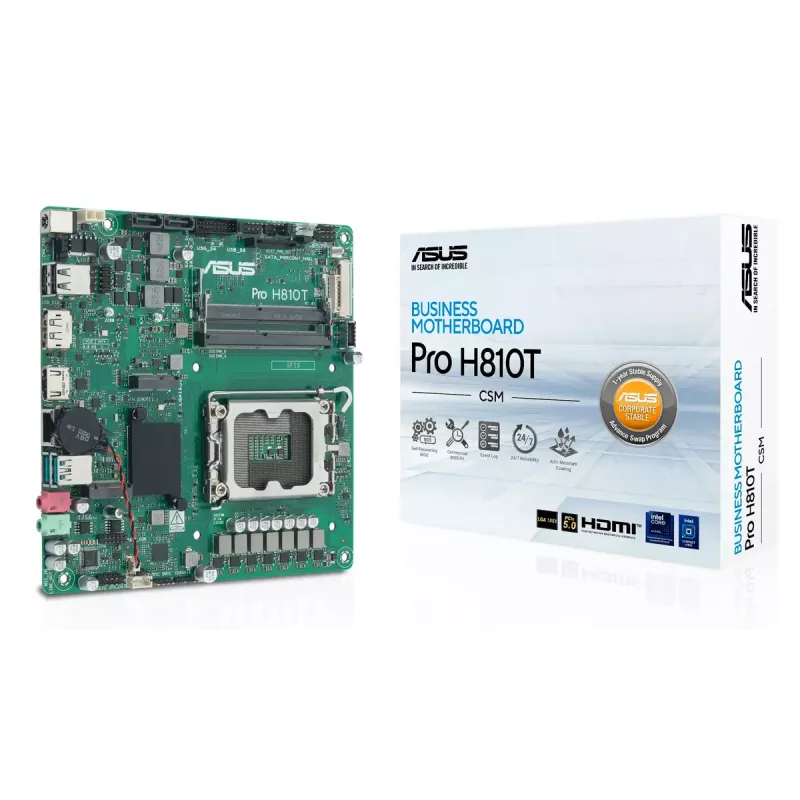

Placa base ASUS Pro H810T-CSM Intel H810 LGA 1851 Mini ITX DDR5 128GB

The ASUS Pro H810T-CSM is a mini ITX motherboard designed for business and compact PC builds. Based on the Intel H810 chipset and LGA 1851 socket, it supports Intel Core Ultra (Series 2) processors and DDR5-SDRAM up to 128 GB. The board includes M.2 and SATA III storage interfaces, ultrafast connectivity options, and features targeted at enterprise deployment such as a self-recovering UEFI BIOS, TPM support and commercial management tools.

Advantages

The motherboard delivers consistent and reliable performance through high-quality components and rigorous testing. It offers enhanced system security with a self-recovering BIOS and TPM, and simplifies IT administration with ASUS Control Center Express and ASUS CSM program support. Compact mini ITX dimensions combine with modern connectivity — including PCIe 5.0 M.2, DDR5 SO-DIMM slots and front USB 20 Gbps Type-C — to suit space-constrained business systems without sacrificing expandability.

Suitable for

• Compact business desktops and kiosks
• Embedded systems and industrial PCs with mini ITX form factor
• Workstations requiring Intel Core Ultra (Series 2) processors
• Systems needing secure BIOS recovery and TPM support

Key specifications

• Brand: ASUS
• Model: Pro H810T-CSM (MPN: 90MB1LGM-M0EAYC)
• Form factor: Mini ITX
• Chipset: Intel H810
• Processor socket: LGA 1851 (Socket V1) — Intel Core Ultra (Series 2) ready
• Memory: 2 × DDR5 SO-DIMM slots, up to 128 GB
• Storage interfaces: M.2 (PCIe 5.0 M.2) and SATA III; supports up to 3 drives
• BIOS: UEFI AMI 256 Mbit (self-recovering)
• Network: Gigabit Ethernet

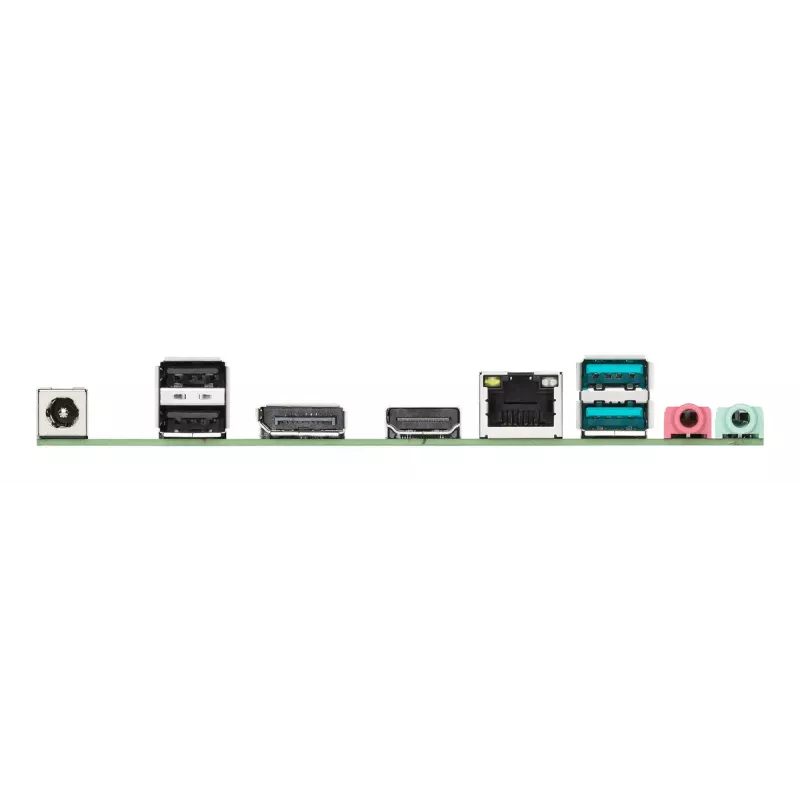

• Front/rear I/O highlights: Front USB 20 Gbps Type-C, rear USB 10 Gbps Type-A
• Weight: 0.319 kg
• EAN: 4711636101325

How to use

Install the ASUS Pro H810T-CSM into a compatible mini ITX chassis and mount an Intel Core Ultra (Series 2) processor into the LGA 1851 socket following the CPU cooler manufacturer’s instructions. Populate up to two DDR5 SO‑DIMMs according to the motherboard’s memory installation guidelines, and connect storage devices to M.2 or SATA III ports. Configure BIOS/UEFI settings as required for your deployment, enable TPM if needed for security, and use ASUS Control Center Express for centralized monitoring and management in enterprise environments.

Recommendations

For durable, long-term business use, pair the board with enterprise-class SSDs, a compatible chassis that provides adequate cooling for H-series components, and keep firmware updated through ASUS-provided updates and the CSM lifecycle notifications.
