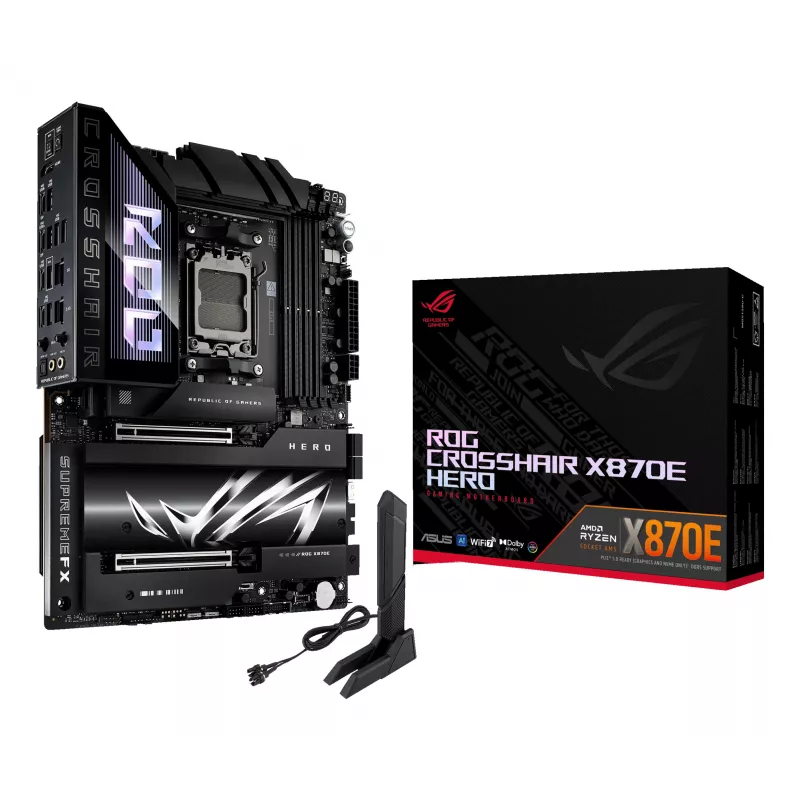

Placa base ASUS ROG CROSSHAIR X870E HERO socket AM5

For enthusiasts and overclockers pushing AMD Ryzen 9000-series processors to the limit, the ASUS ROG Crosshair X870E Hero delivers uncompromising power delivery, cutting-edge connectivity, and premium build quality. This ATX motherboard is engineered to handle extreme loads with a robust 20+2+2 power stage VRM, while offering PCIe 5.0 support for next-gen graphics and storage.

Who is it for

This board is built for hardcore gamers, content creators, and PC builders who demand top-tier performance, extensive overclocking headroom, and future-proof features. If you're assembling a high-end AM5 system with a Ryzen 9 or Ryzen 7 CPU, the Crosshair X870E Hero provides the foundation for a flagship build.

Main features

• AMD AM5 socket and X870E chipset for Ryzen 7000/8000/9000 series processors
• 20+2+2 power stages rated at 110A for stable overclocking
• DDR5 memory support up to 8000+ MHz (OC) with 4 DIMM slots, max 192GB
• Dual PCIe 5.0 x16 SafeSlots for multi-GPU or high-speed expansion cards
• Four M.2 slots: two PCIe 5.0 x4 and two PCIe 4.0 x4 for ultra-fast NVMe SSDs
• Intel 2.5Gb Ethernet and Wi-Fi 7 with Bluetooth 5.4 for high-speed networking
• ROG SupremeFX ALC4082 audio with ESS SABRE9018Q2C DAC for pristine sound
• ASUS Q-Design: Q-Release, Q-Latch, Q-LED, Q-Code for easy building and troubleshooting
• BIOS FlashBack and Clear CMOS button for convenient firmware updates and resets

Specifications

• Form Factor: ATX
• CPU Socket: AM5
• Chipset: AMD X870E
• Memory: 4 x DIMM, DDR5, up to 192GB, speeds up to 8000+ MHz (OC)
• Expansion Slots: 2 x PCIe 5.0 x16 (SafeSlot)
• Storage: 4 x M.2 (2x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4 x SATA 6Gb/s
• Networking: Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
• Audio: ROG SupremeFX ALC4082 codec with ESS SABRE9018Q2C DAC
• Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 9x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C
• Internal USB Headers: 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1, 2x USB 2.0
• Power Connectors: 1x 24-pin ATX, 2x 8-pin EPS

Tips

Pair this motherboard with a high-quality 850W or greater power supply and a robust cooling solution to fully exploit its overclocking capabilities. For optimal memory performance, use DDR5 modules from the QVL list and enable EXPO profiles in BIOS. The Q-Release button simplifies graphics card removal in tight cases.
