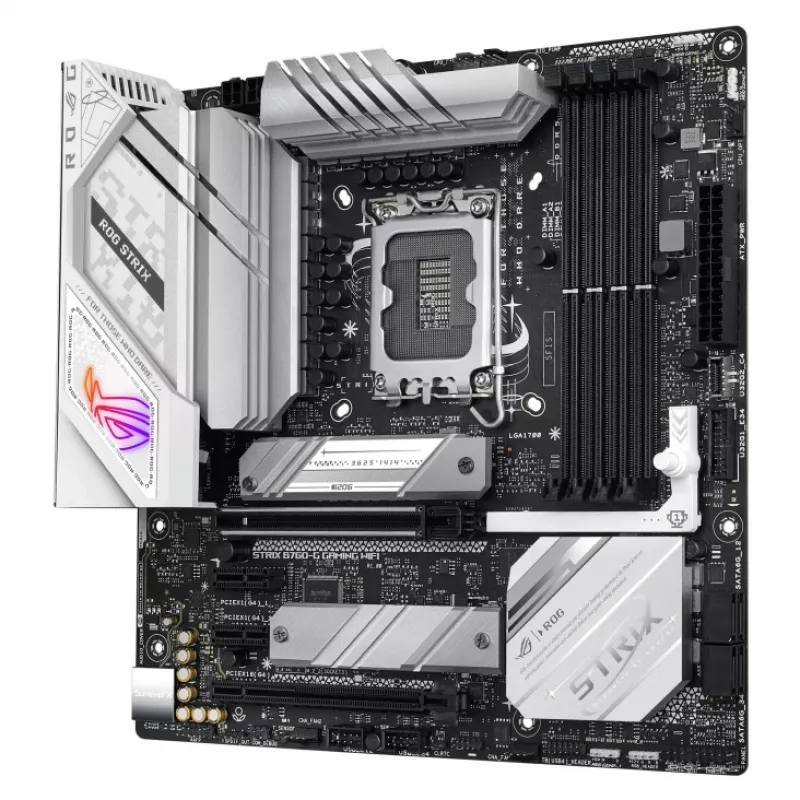

Placa base ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX

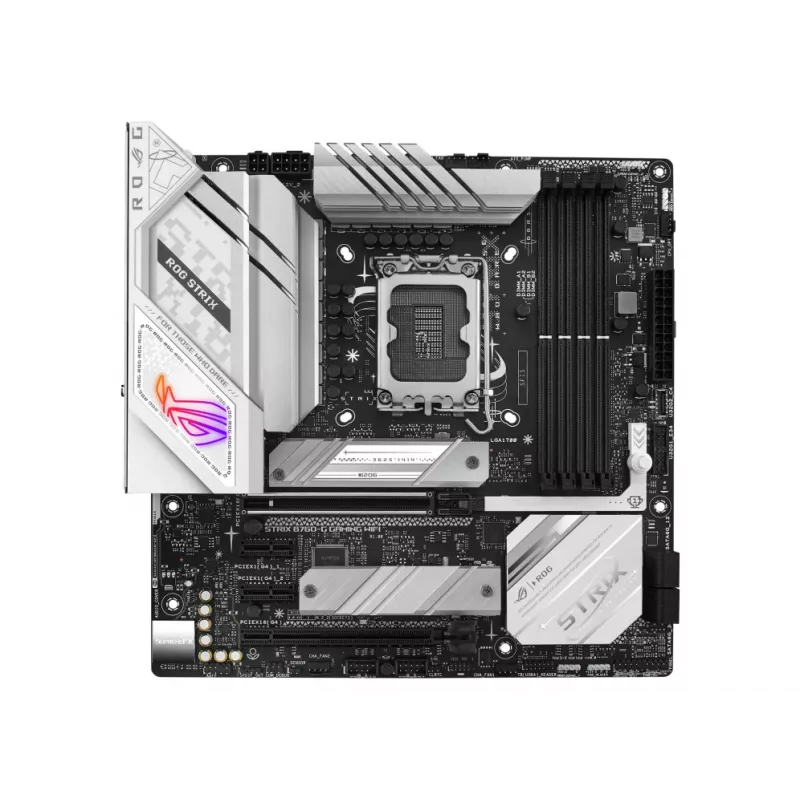

The ASUS ROG STRIX B760-G GAMING WIFI is a micro-ATX motherboard based on the Intel B760 chipset with an LGA 1700 socket, designed for Intel 13th Gen and compatible 12th/13th Gen processors. It supports DDR5 memory across four DIMM slots with up to 192 GB capacity, offers M.2 and SATA III storage options with RAID support, and includes high-speed networking with 2.5 Gb Ethernet and Wi‑Fi 6E. The board combines compact dimensions with reinforced power delivery and optimized cooling to support high-performance builds in an mATX form factor.

Advantages

The ROG Strix B760-G Gaming Wi‑Fi provides a strengthened power architecture with 12 + 1 power stages rated for 60A each, high-quality alloy chokes and durable capacitors, and an integrated six-layer PCB to improve heat dissipation and system stability. It supports fast DDR5 memory and includes well-placed heatsinks for VRM and M.2 slots. A PCIe® Slot Q-Release button simplifies GPU or add‑in card removal. Onboard connectivity covers Wi‑Fi 6E, 2.5 Gb Ethernet, abundant USB ports, and SupremeFX audio for clear sound output.

Suitable for

• Building a compact gaming PC or performance mATX system
• Upgrading to DDR5 memory and high-speed Intel processors
• Systems requiring fast network connectivity (Wi‑Fi 6E / 2.5GbE)
• Users who need multiple M.2/SATA storage options with RAID

Key specifications

• Chipset: Intel B760
• Socket: LGA 1700 (Intel 12th/13th Gen compatible)
• Form factor: Micro ATX
• Memory: 4 × DIMM, DDR5-SDRAM, up to 192 GB
• Power delivery: 12 + 1 power stages, 60A per stage
• Storage interfaces: M.2 and SATA III, RAID 0/1/5/10 support
• Networking: Wi‑Fi 6E (802.11ax) and 2.5 Gb Ethernet
• Additional features: PCIe® Slot Q-Release, SupremeFX audio, six-layer PCB

How to use

Install the ROG Strix B760-G into a compatible micro‑ATX case and secure it to the standoffs. Fit an LGA 1700 CPU and the appropriate cooler per the cooler manufacturer’s mounting instructions, then install up to four DDR5 DIMMs according to the manual’s recommended slot population. Connect M.2 drives and SATA devices as needed, attach the PSU using the 8+4 pin ProCool power connectors, and connect front‑panel and rear I/O cables. Use the PCIe® Slot Q-Release button to remove or replace expansion cards safely when upgrading.

Recommendations

For stable high-performance operation, use quality DDR5 modules matched to supported frequencies, ensure adequate case airflow around VRM and M.2 heatsinks, and update the BIOS to the latest version before first use. When installing a high‑power CPU and discrete GPU, verify that the PSU provides sufficient wattage and proper 8+4 pin CPU power connections.
