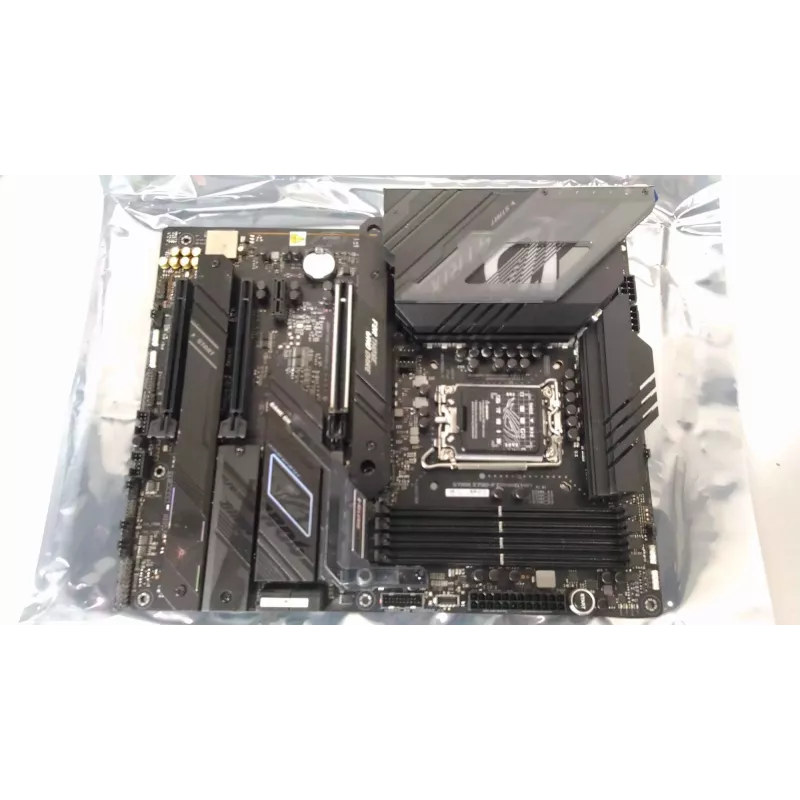

Placa base ASUS ROG STRIX Z790-F GAMING WIFI, Intel Z790, LGA1700, ATX (USADO, REACONDICIONADO GENERAL, SIN EMBALAJE ORIGINAL NI ACCESORIOS, SOLO INCLUYE PLACA TRASERA Y ANTENA)

The ASUS ROG STRIX Z790-F GAMING WIFI is an ATX desktop motherboard built on the Intel Z790 chipset with an LGA1700 socket. It supports DDR5 memory across four DIMM slots and offers multiple storage options including four SATA ports and several M.2 interfaces for NVMe or SATA SSDs. The board integrates networking and expansion features suitable for gaming and demanding applications, providing space for discrete graphics, high-speed storage and onboard Wi‑Fi.

Advantages

The ASUS ROG STRIX Z790-F GAMING WIFI combines native DDR5 support, a full‑size ATX layout for multiple expansion cards, integrated Wi‑Fi and several M.2 slots to maximize storage performance. The connector layout and headers are designed for straightforward installation and future upgrades, balancing connectivity and expandability for users building modern Intel-based systems.

Key specifications

• Chipset: Intel Z790
• Socket: LGA1700
• Form factor: ATX
• Memory: DDR5, 4 DIMM slots (channel configuration depends on CPU and BIOS)
• Storage: 4 × SATA ports; multiple M.2 interfaces for NVMe/SATA SSDs
• Expansion: PCIe x16 slot(s) for discrete GPU and additional PCIe devices
• Network: Onboard Wi‑Fi (model-specific) and Ethernet connectivity
• I/O: Rear panel and internal headers for USB, audio and system control

How to use

Before installation, confirm CPU and memory compatibility with the Intel Z790 platform and the LGA1700 socket. Install the CPU into the LGA1700 socket following manufacturer guidelines and attach a compatible cooler. Populate DDR5 modules into the four DIMM slots according to the manual to enable recommended memory channels. Connect the 24‑pin ATX power and required CPU power connectors from the power supply. Mount and secure M.2 SSDs in the M.2 slots and connect any SATA drives to the SATA ports. Install a discrete graphics card into the primary PCIe x16 slot if needed. Attach front-panel, USB and audio headers to the case connectors, and connect external Wi‑Fi antennae if present. Power on the system and enter UEFI/BIOS to verify device detection and set the boot order.

Recommendations

Check ASUS support for the latest BIOS updates and CPU compatibility list before first use. Use a quality power supply and appropriate cooling for your CPU and GPU, and follow the motherboard manual for memory population and M.2 installation to ensure optimal performance.
