Name: Placa base ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX
Brand: ASUS
SKU: 118580
Price: 191.18 EUR
Availability: InStock

Placa base ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX

36 mes

Placa base ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX

0 opiniones • Escribir una opinión

191,18 €

Acumulas +0,69 €

Cant.

Añadir al carrito

Añadir a la lista de deseos Comparar este producto

Stock 2 Código 118580 Marca ASUS Modelo 90MB1BG0-M0EAY0 Garantía 3 años

Envíos y devoluciones

Entrega estimada Martes, Octubre 20

Te mantendremos informado a través de nuestro sistema de seguimiento detallado

Opciones de pago

Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Vista rápida

Placa base ASRock A520M-HDV AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 Audio HD 7.1ch mATX

60,91 €

Sin IVA:50,34 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX

84,38 €

Sin IVA:69,74 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base GIGABYTE B550I AORUS PRO AX, B550, AM4, Mini-ITX

182,00 €

Sin IVA:150,41 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base MSI MAG B760 TOMAHAWK WIFI LGA 1700 ATX

187,54 €

Sin IVA:154,99 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base GIGABYTE B650 EAGLE ATX, chipset AMD B650, socket AM5, DDR5, 4x DIMM, 3x M.2, PCIe 5.0 x16

132,97 €

Sin IVA:109,89 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base MSI MEG Z890 ACE Intel Z890 LGA 1851 (Socket V1) ATX

680,04 €

Sin IVA:562,02 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base ASRock B850 Pro-A AM5 ATX

156,96 €

Sin IVA:129,72 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base ASRock B860I WiFi Mini-ITX

169,27 €

Sin IVA:139,89 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

ASRock B650M PG Lightning AM5 placa base Micro-ATX

128,94 €

Sin IVA:106,56 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

GIGABYTE B760M DS3H GEN5 Placa base - Compatible con CPUs Intel Core 14.ª Gen, VRM digital 6+2+1 fases, hasta 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2

118,03 €

Sin IVA:97,54 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

ASUS TUF GAMING B650M-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for uniﬁed illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.

ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.

Teamed Power Stages
12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

8+4 PIN ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components

TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

DRAM Overclocking Performance
DDR5 OC 6400
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

PCIe 5.0 Support
TUF GAMING B650 motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.

Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

2. Optimized M.2 Heatsink Design
All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

Comprehensive Fan Controls
TUF GAMING B650 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 2+ utility in Armoury Crate or the award-winning ASUS UEFI BIOS.

Connectivity
TUF-GAMING B650 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.

EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

Safeslot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.

ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

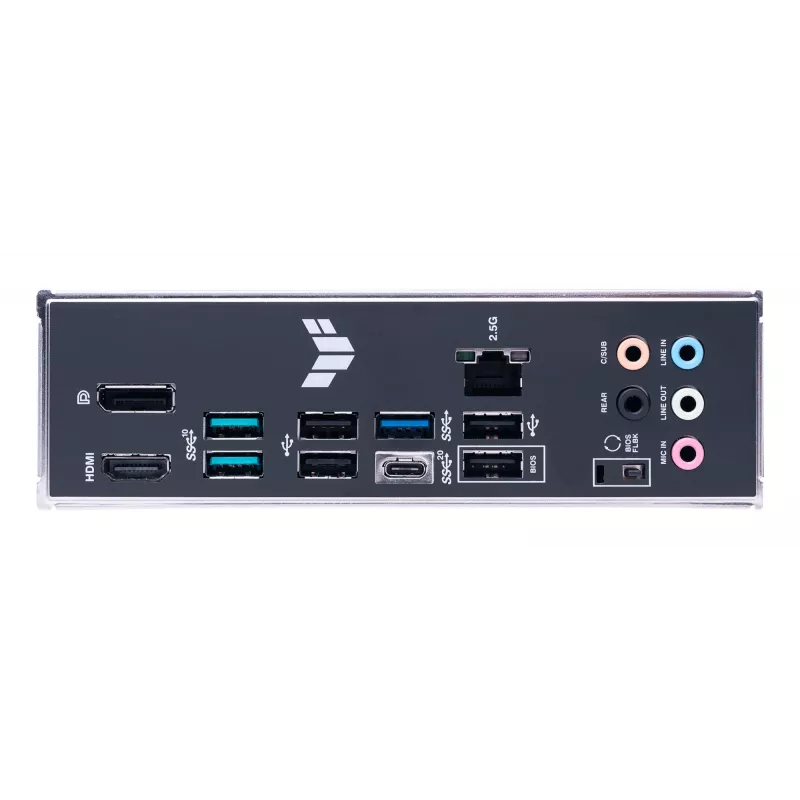

Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.

Removable Captive Screws
Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.

Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.

IMMERSIVE GAMING
TUF GAMING B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.

DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.

THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM,
YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2

How to use

Install an AMD Ryzen 7000 Series processor into the AM5 socket and populate DDR5 DIMMs across the four memory slots according to the motherboard manual to enable dual- or quad-channel configurations. Connect the PSU using the ProCool 8+4 pin connectors and attach storage devices to the SATA and M.2 slots; use the M.2 Q-Latch for tool-free SSD installation. Configure boot order, fan profiles and performance settings via the ASUS UEFI BIOS or the Armoury Crate software. Use Fan Xpert 2+ inside Armoury Crate to optimize fan curves and enable Power Saving or performance modes as needed.

Recommendations

For stable high-load operation, pair this motherboard with a compatible high-quality power supply, use adequate CPU cooling, and keep the M.2 and VRM heatsinks unobstructed. Update the UEFI BIOS and Armoury Crate drivers after first boot to ensure full compatibility with the latest Ryzen CPUs and memory profiles.

Aspectos destacados

Gaming PCs with AMD Ryzen 7000 Series processors
High-performance desktop builds requiring DDR5 memory and PCIe 5.0 storage
System builders who need durable components and long-term reliability
Workstations that benefit from stable power delivery and advanced cooling
Form factor: Micro ATX
Chipset: AMD B650
Processor socket: Socket AM5 (supports AMD Ryzen 7000 Series)
Memory: 4 x DIMM, DDR5-SDRAM, up to 128 GB, DDR5 OC 6400 support
Power stages: 12+2 (60A-rated) with 8+4 ProCool connectors
Storage: M.2 slots with PCIe 5.0 support, NVMe RAID support; SATA III ports
Networking: 2.5 Gb Ethernet
Audio: Realtek 7.1 codec, DTS Audio Processing
I/O features: Multiple USB ports including Type-C, Thunderbolt (USB4) support on select models, stainless-steel back I/O

Especificaciones

Ancho

244 mm

Bluetooth

Botón Back-to-BIOS

Yes

Canales de memoria

Dual-channel

Canales de salida de audio

7.1 channels

Chipset de la placa base

AMD B650

Compatibilidad con tecnología de procesamiento en paralelo

Not supported

Compatibilidad ECC

ECC & Non-ECC

Compatibilidad RAID

Yes

Componente para

Conector de alimentación ATX (24 pines)

Yes

Conector de alimentación de 12 V

Yes

Conector de alimentación EPS (8 pines)

Yes

Conector de audio del panel frontal

Yes

Conector de pines para LED RGB

Yes

Conector de ventilador de CPU

Yes

Conectores Thunderbolt

Conectores USB 2.0

Conectores USB 3.2 Gen 1 (3.1 Gen 1)

Conectores USB 3.2 Gen 2 (3.1 Gen 2)

Entrada de línea

Yes

Entrada de micrófono

Yes

Ethernet LAN

Yes

Fabricante del procesador

AMD

Familia de chipset de la placa base

AMD

Formato de la placa base

micro ATX

Interfaces de unidades de almacenamiento compatibles

M.2, SATA III

Memoria interna máxima

256 GB

Memoria sin búfer

Yes

Niveles RAID

0, 1, 10

Número de conectores COM

Número de conectores de ventilador de chasis

Número de conectores SATA III

Número de puertos DisplayPort

Número de puertos DVI-D

Número de puertos HDMI

Número de puertos USB 2.0

Número de puertos USB 3.2 Gen 1 (3.1 Gen 1) tipo A

Número de puertos USB 3.2 Gen 1 (3.1 Gen 1) tipo C

Número de puertos USB 3.2 Gen 2 (3.1 Gen 2) tipo A

Número de puertos USB 3.2 Gen 2 (3.1 Gen 2) tipo C

Número de puertos USB 3.2 Gen 2x2 tipo C

Número de puertos VGA (D-Sub)

Número de ranuras de memoria

Número de ranuras M.2 (M)

Profundidad

244 mm

Puertos Ethernet LAN (RJ-45)

Ranuras PCI Express x16 (Gen 4.x)

Ranuras PCI Express x4 (Gen 1.x)

Salidas de auriculares

Serie de procesadores compatible

AMD Ryzen 7000 Series

Sistemas operativos Windows compatibles

Windows 10, Windows 11 x64

Tamaño de memoria de la BIOS

256 Mbit

Tipo de BIOS

UEFI AMI

Tipo de fuente de alimentación

ATX

Tipo de interfaz Ethernet

2.5 Gigabit Ethernet

Tipo de ranuras de memoria

DIMM

Tipos de memoria compatibles

DDR5-SDRAM

Tipos de unidades de almacenamiento compatibles

HDD & SSD

Velocidad de reloj de memoria compatible (máx.)

6400 MHz

Velocidades de reloj de memoria compatibles

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Versión de DisplayPort

1.4

Versión de HDMI

2.1

Wifi

Zócalo del procesador

Socket AM5

Zócalos de procesador compatibles

Socket AM5

Manual

Abrir documento

Folleto

Abrir documento

Historial de precios de los últimos 6 meses

Placa base ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX

Actual

191,18 €

Mínimo

164,85 €

Máximo

206,35 €

Variación 24 h

-0,45 € 0%

Semana

+10,37 € +6%

Mes

+10,82 € +6%

Análisis independientes de medios tecnológicos

eteknix.comPeter2024-01-25

Veredicto: With the fantastic build quality and upgraded quality of components we've come to expect from the TUF series of products, the classic TUF Gaming Alliance-friendly aesthetics, and a truly astonishing performance from this competitively priced mATX motherbo...

Lee el análisis completo en eteknix.com →

Placa base ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX
