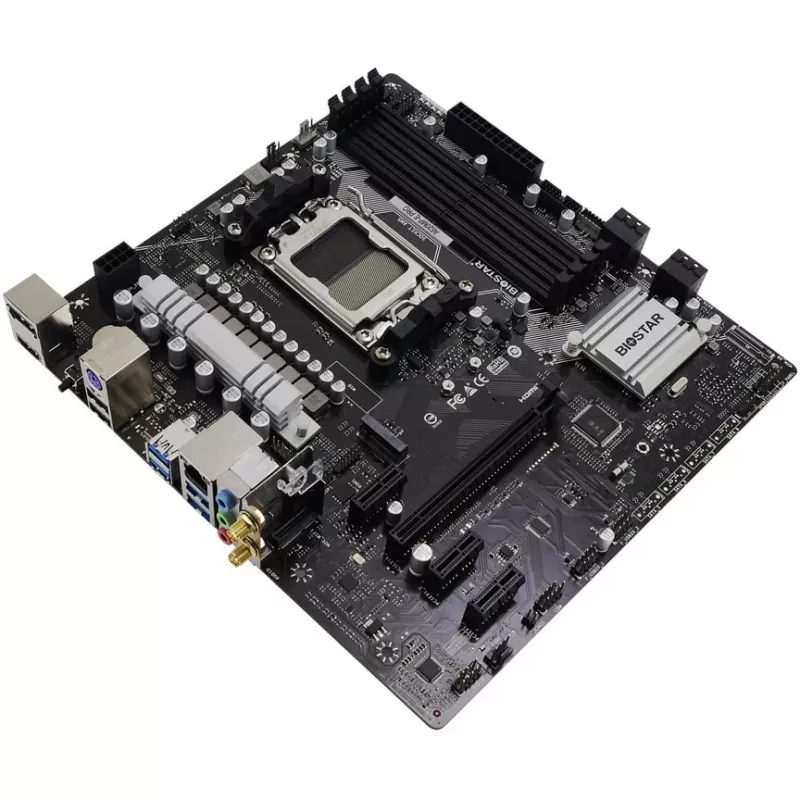

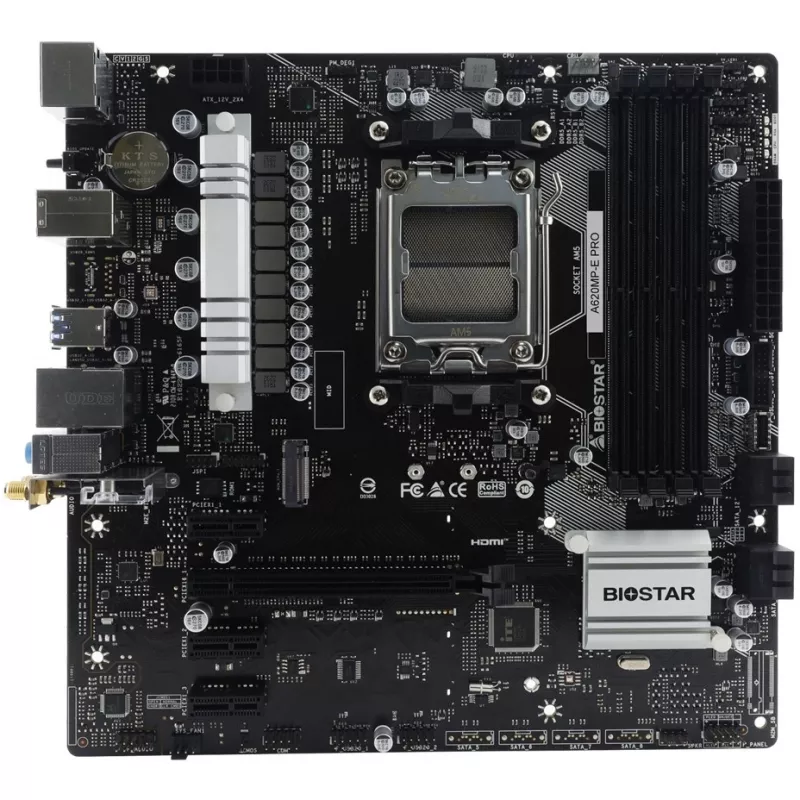

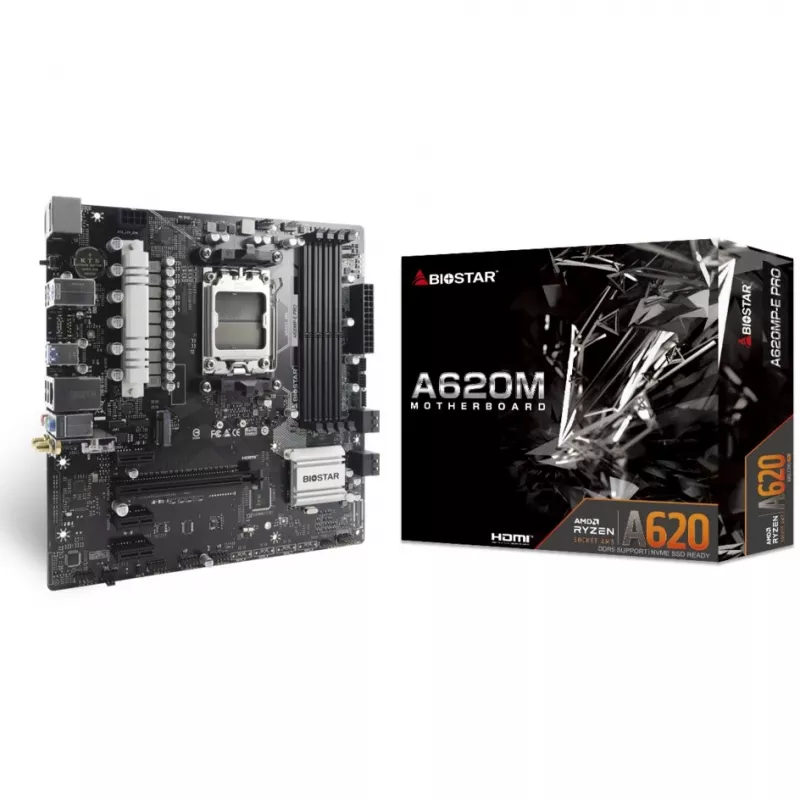

Placa base BIOSTAR A620MP-E PRO — AMD A620 microATX, zócalo AM5, DDR5, 4 DIMM, máx. 128 GB, 2,5Gb LAN

The Biostar A620MP-E PRO is a micro ATX motherboard based on the AMD A620 chipset with Socket AM5, designed for AMD Ryzen 7000 Series processors. It supports DDR5-SDRAM across four DIMM slots for up to 128 GB of system memory, provides SATA III interfaces for storage drives, and includes integrated networking and audio for standard PC configurations.

Advantages

The board offers modern platform compatibility with Socket AM5 and support for DDR5 memory, a compact micro ATX form factor suitable for smaller cases, multiple SATA III ports for legacy and SSD storage, built-in 2.5 Gigabit Ethernet for improved network throughput, and multi-channel audio support for 7.1 surround sound.

Suitable for

• Home and office PC builds using AMD Ryzen 7000 processors
• Compact micro ATX systems where space is limited
• Systems requiring DDR5 memory and multiple SATA storage devices

Key specifications

• Form factor: Micro ATX
• Chipset: AMD A620
• Processor socket: Socket AM5 (supports AMD Ryzen 7000 Series)
• Memory: DDR5-SDRAM, 4 × DIMM slots, up to 128 GB
• Storage interfaces: SATA III
• Expansion slots: PCI Express x1 (Gen3.x) available

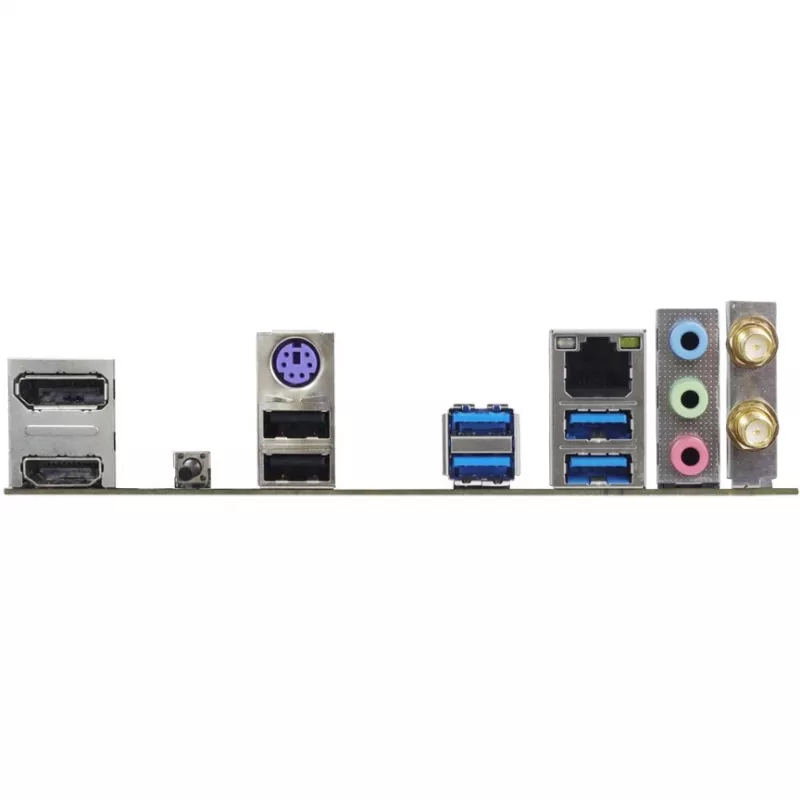

• USB: USB 3.2 Gen 1 Type-A ports and USB 2.0 ports
• Video output: HDMI port
• LAN: 2.5 Gigabit Ethernet controller
• Audio: 7.1 channel onboard audio

How to use

Install the motherboard into a compatible micro ATX case, mount an AM5-compatible AMD Ryzen 7000 Series processor on the Socket AM5, insert up to four DDR5 DIMM modules following the motherboard manual for optimal channel population, connect SATA storage devices to the SATA III ports, and attach power, front-panel headers and cooling fans as specified. Connect display output via the HDMI port and configure BIOS settings at first boot to ensure memory and storage are detected and set to desired modes.

Recommendations

For stable operation, use certified DDR5 modules listed in the motherboard manual or vendor QVL, ensure BIOS is updated to the latest release when installing newer Ryzen 7000 CPUs, and use a quality power supply appropriate for your complete system configuration.
