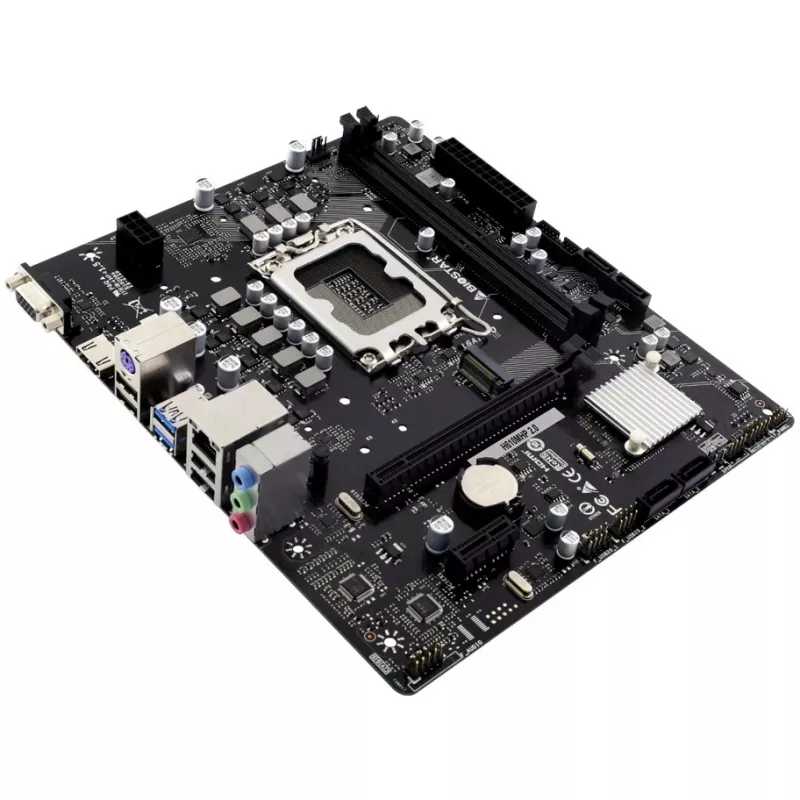

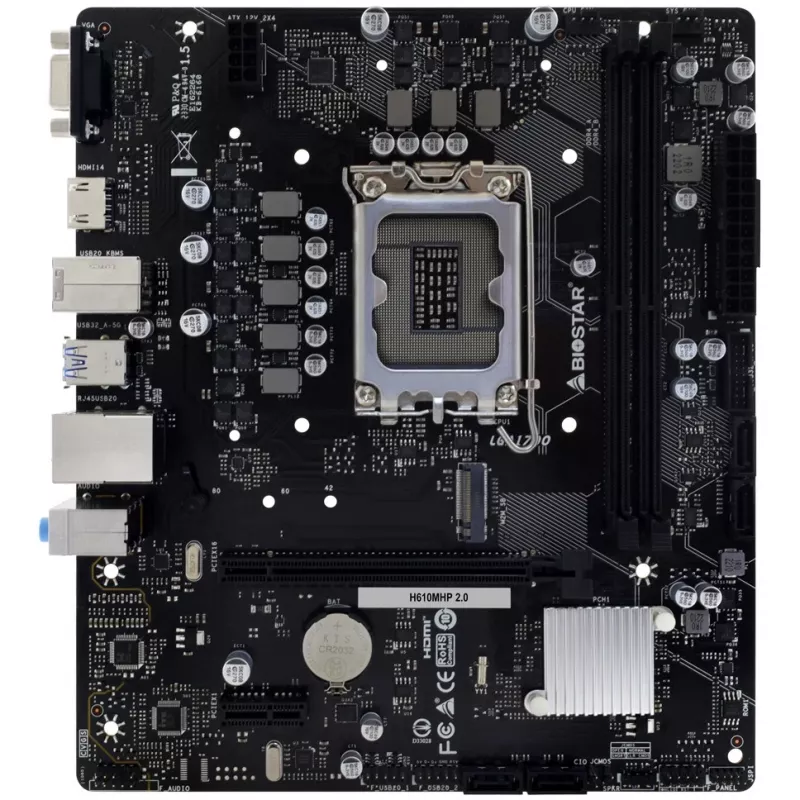

Placa base Biostar H610MHP 2.0 Intel H610 LGA 1700 Micro ATX

The Biostar H610MHP 2.0 is a Micro ATX motherboard with the Intel H610 chipset and an LGA 1700 socket, compatible with 12th‑generation Intel® Core™ i9/i7/i5/i3 and Intel® Pentium® processors. It supports up to 64 GB DDR4 memory across two DIMM slots and offers multiple storage and expansion options including M.2 PCIe (PCIe 3.0 / PCIe 4.0 where supported), SATA III 6Gbps and PCIe x1 slots. Integrated features include HD Audio with BIOSTAR Hi‑Fi Ground, Gigabit Ethernet (Realtek RTL8111H), UEFI BIOS with BIOS update tools, and multiple USB ports for everyday PC builds in a compact Micro ATX form factor.

Advantages

The motherboard delivers stable power and durability through S‑Hyper PWM, Super Durable Solid Caps and Super Durable Inductor components, and includes moistureproof PCB and ESD protection for improved reliability. Audio features such as Hi‑Fi Ground and Smart Ear provide clearer analog output and simple headphone impedance control. High‑definition display support via HDMI 4K2K and DirectX 12 compatibility ensure modern multimedia and gaming functionality. Expansion choices include high‑speed PCIe M.2 and SATA III storage, plus USB 3.2 Gen1 connectivity for fast peripheral transfers.

Suitable for

• Compact desktop builds and home office PCs
• Entry to mid-range gaming systems with discrete GPU support
• Content creation and multimedia playback with 4K HDMI output
• Upgradable systems requiring M.2 or SATA III storage

Key specifications

• Chipset: Intel H610
• Socket: LGA 1700 (12th Gen Intel CPUs compatible)
• Form factor: Micro ATX
• Memory: 2× DDR4 DIMM slots, up to 64 GB
• Storage: M.2 (PCIe 3.0 / PCIe 4.0 compatible depending on CPU/platform), SATA III 6Gbps
• PCIe: PCIe 3.0 x1 slot; M.2 PCIe lanes for NVMe SSDs
• Audio: HD Audio, BIOSTAR Hi‑Fi Ground, Smart Ear utility
• LAN: Gigabit Ethernet (Realtek RTL8111H)
• USB: USB 3.2 Gen1 Type‑A and legacy USB support
• BIOS/Tools: UEFI BIOS, BIO‑Flasher, Smart Update

How to use

Install the H610MHP 2.0 into a compatible Micro ATX case and mount an LGA 1700‑compatible CPU following the processor and cooler manufacturer instructions. Populate the DDR4 DIMM slots with supported memory modules up to the 64 GB maximum, and connect storage devices via M.2 sockets or SATA III ports. Attach power, front‑panel connectors, and peripherals (monitor via HDMI, keyboard, mouse, network cable). Use the UEFI BIOS for initial configuration and enable boot device order; update the BIOS if necessary using BIO‑Flasher or Smart Update utilities.

Recommendations

For optimal stability, use single‑slot or low‑profile coolers compatible with LGA 1700 and install memory modules in matched pairs when possible. Keep BIOS and chipset drivers up to date via BIOSTAR Smart Update. When installing high‑performance NVMe drives, verify CPU/platform support for PCIe 4.0 M.2 to achieve maximum throughput.
