Placa base GIGABYTE B760M AORUS ELITE WIFI6E GEN5 — Micro ATX, LGA1700, DDR5 hasta 5600MHz, 12+1+1 VRM, 2x PCIe4.0 M.2, Wi‑Fi 6E, 2.5 GbE

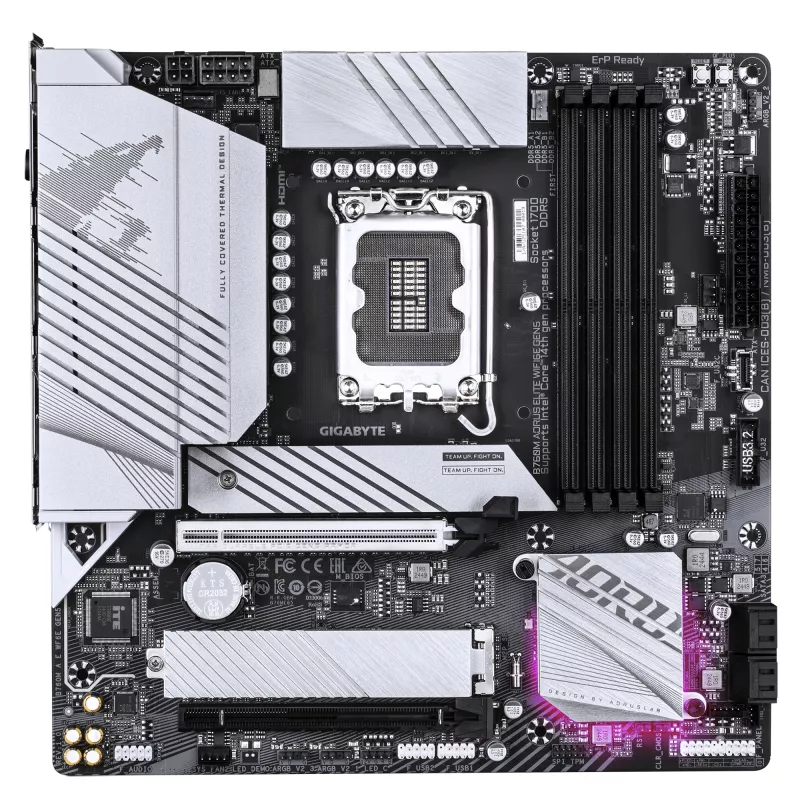

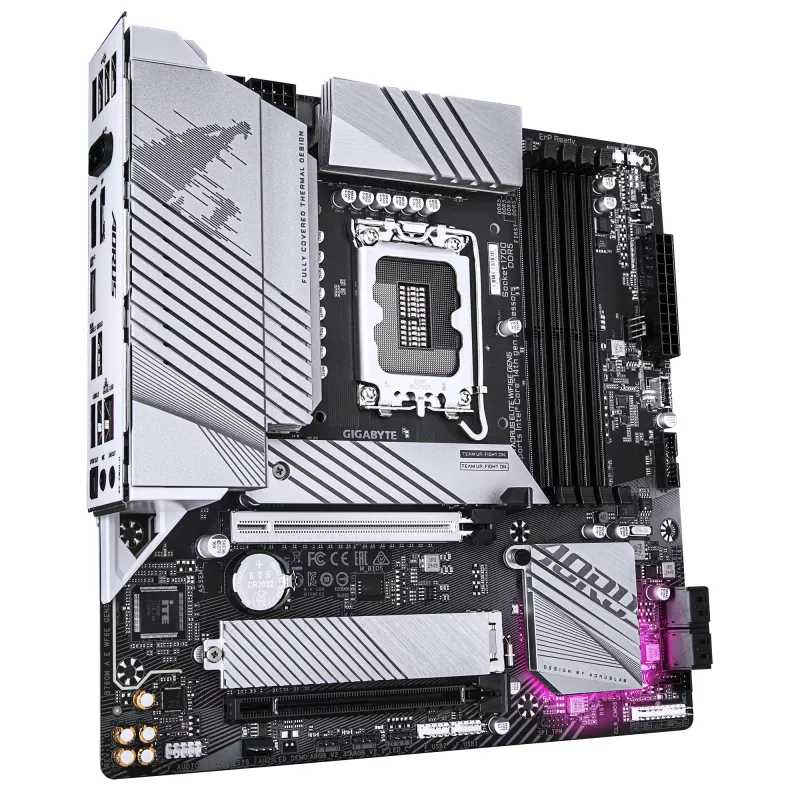

The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 is a Micro ATX motherboard for Intel LGA1700 processors, including 12th–14th Gen Core CPUs. It supports DDR5 memory across four DIMM slots with up to 256 GB total capacity and memory speeds up to 5600 MHz. The board features a 12+1+1 phase VRM design for stable power delivery, two PCIe 4.0 M.2 slots for high-speed NVMe storage, SATA III ports with RAID 0/1/5/10 support, Realtek 2.5 GbE LAN, integrated Wi‑Fi 6E and Bluetooth 5.3, and a variety of USB ports including high‑bandwidth USB 3.2 Gen2x2. Its Micro ATX form factor makes it suitable for compact desktop builds without sacrificing connectivity or expansion options.

Advantages

The motherboard combines modern connectivity and storage options with an efficient power design: a 12+1+1 VRM arrangement supports demanding processors while dual PCIe 4.0 M.2 slots and SATA III offer flexible storage configurations. Built‑in Wi‑Fi 6E and 2.5 GbE LAN provide low‑latency networking for gaming and content transfer, and support for DDR5 memory up to 5600 MHz enables higher memory bandwidth. The Micro ATX layout balances compact size and expandability, offering multiple PCIe slots and headers for common desktop use cases.

Suitable for

• Gaming desktops with mid‑to‑high performance Intel CPUs
• Content‑creation systems needing fast NVMe storage and ample RAM
• Compact workstations where Micro ATX form factor is required
• Home or small office PCs requiring Wi‑Fi 6E and 2.5 GbE networking

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 (supports 12th–14th Gen Intel Core series)
• Memory: 4 × DDR5 DIMM slots, dual‑channel, up to 256 GB, supports up to 5600 MHz (depending on memory kit and BIOS)
• Power delivery: 12+1+1 phase VRM
• Storage: 2 × PCIe 4.0 M.2 slots, SATA III ports with RAID 0/1/5/10 support
• Expansion: Multiple PCIe slots suitable for discrete graphics and add‑in cards
• Audio: Integrated multi‑channel audio codec
• Networking: Integrated Wi‑Fi 6E (802.11ax) and Bluetooth 5.3, Realtek 2.5 GbE LAN

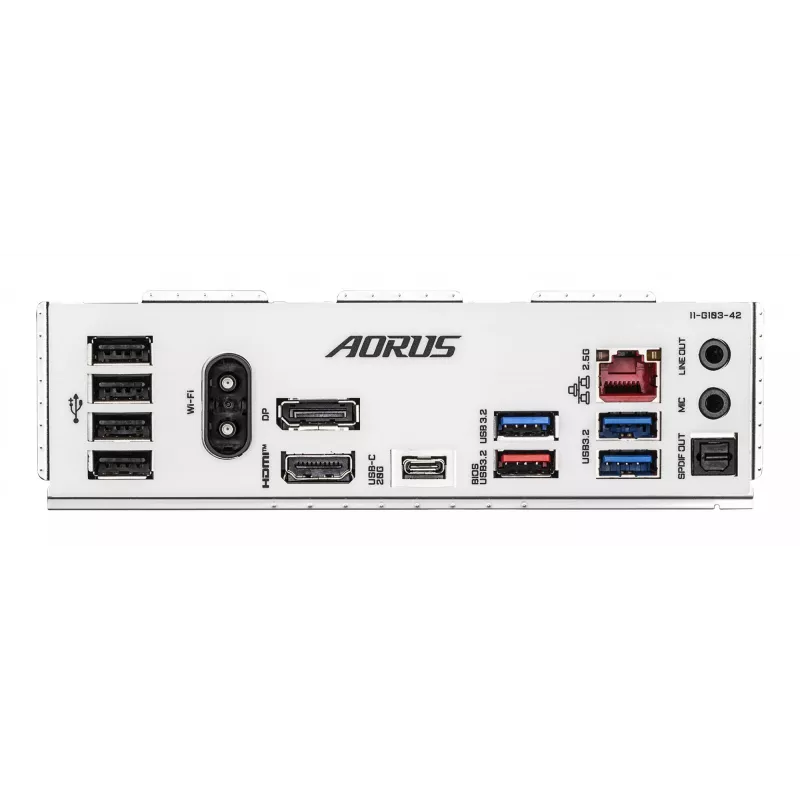

• USB: Includes high‑speed USB 3.2 Gen2x2 ports and other USB 3.2/2.0 connectors
• BIOS: UEFI BIOS with Clear CMOS jumper
• Maximum supported internal memory: 256 GB
• Weight: approximately 1.33 kg

How to use

Install the motherboard into a compatible Micro ATX case and mount an LGA1700‑compatible Intel CPU following the CPU and cooler manufacturer instructions. Populate up to four DDR5 DIMMs in the recommended memory slots for dual‑channel operation and install storage devices into the M.2 slots or SATA ports as required. Connect power from the PSU to the 24‑pin ATX and CPU power headers, attach front‑panel connectors, case fans and peripherals, then connect the Wi‑Fi antenna and network cables. Enter the UEFI BIOS on first boot to verify memory XMP/EXPO settings, configure boot order and enable RAID if using multiple SATA drives.

Recommendations

Use high‑quality DDR5 memory kits tested for compatibility with LGA1700 platforms and update the motherboard BIOS to the latest version before first use. For optimal thermal performance under sustained loads, ensure adequate case airflow and consider adding a dedicated M.2 heatsink or using the board’s thermal guards. When building a compact system, verify CPU cooler clearance and PSU dimensions for Micro ATX cases.
