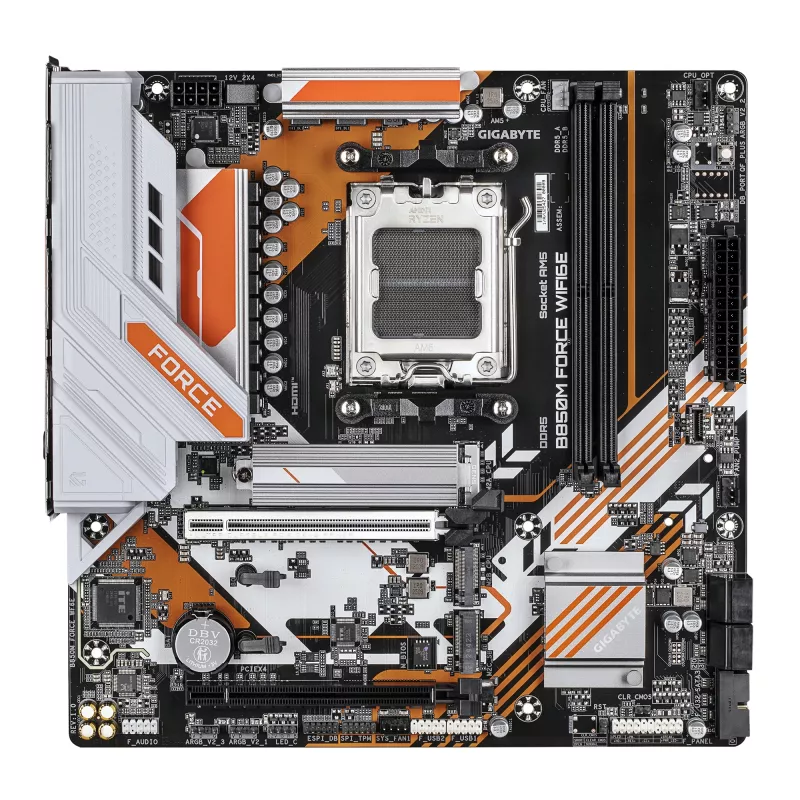

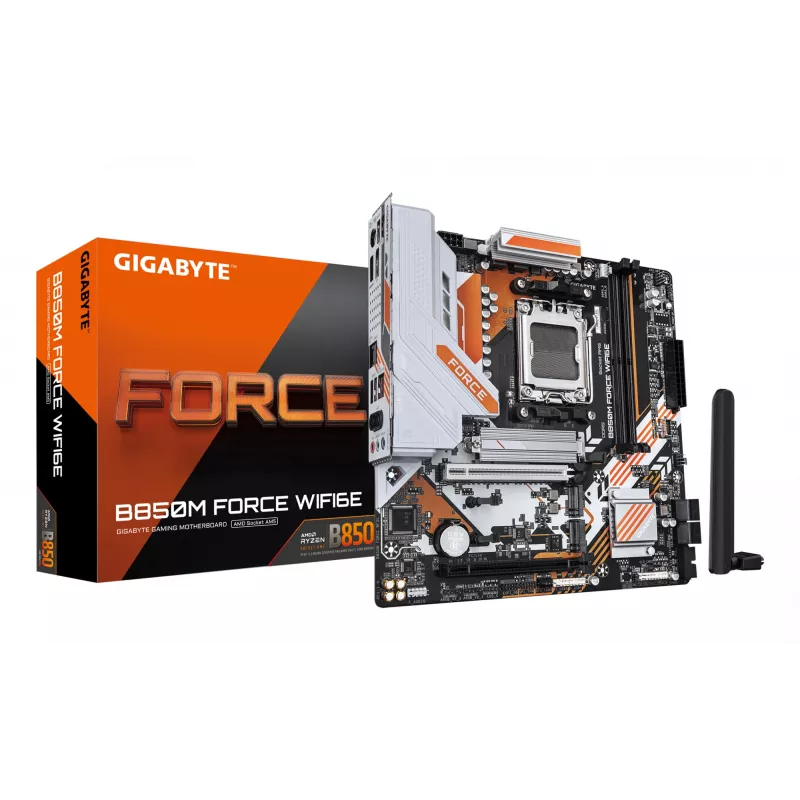

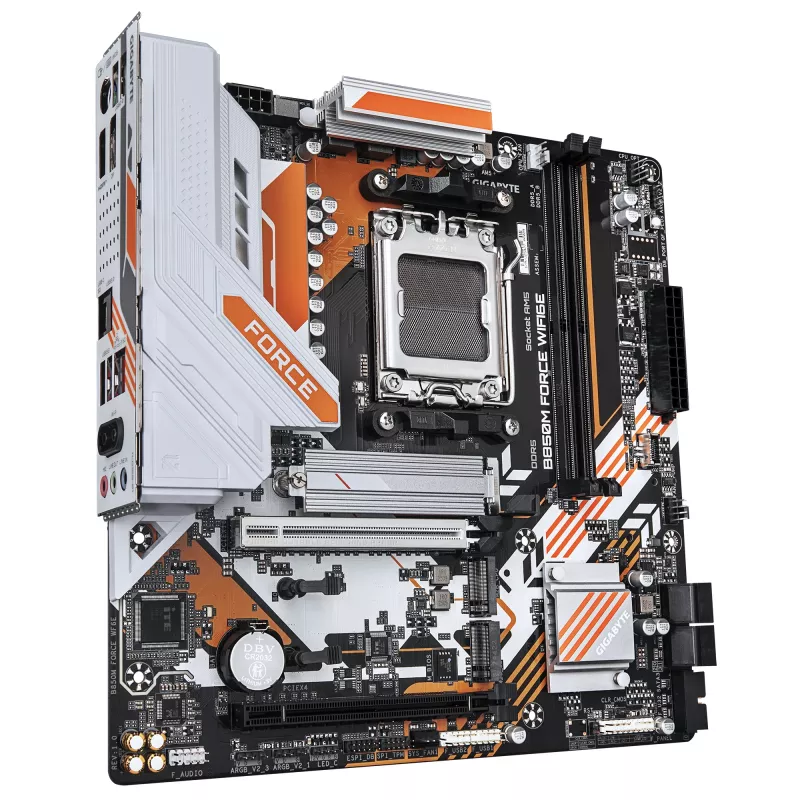

Placa base GIGABYTE B850M FORCE WIFI6E, AMD B850, socket AM5, Micro ATX

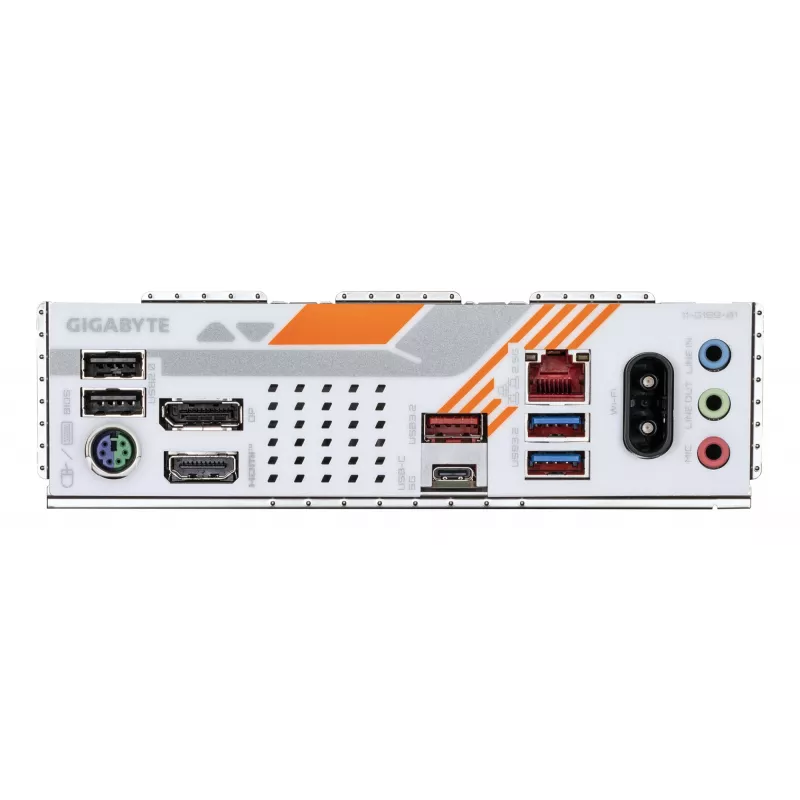

The GIGABYTE B850M FORCE WIFI6E (Micro ATX) motherboard with AMD B850 chipset and Socket AM5 is designed for AMD Ryzen 7000/8000/9000 series processors. It features a digital 8+2+2 phase VRM, two DDR5 DIMM slots supporting up to 128 GB (with AMD EXPO support and high‑frequency overclocking potential), multiple M.2 slots including a PCIe 5.0 x4 slot, integrated Wi‑Fi 6E and 2.5 GbE LAN, and DisplayPort/HDMI outputs for extended connectivity. The board targets users who need a compact yet high‑performance platform for gaming, content creation, and general high‑performance computing.

Advantages

The board combines a robust power delivery system and modern connectivity: a digital 8+2+2 VRM for stable CPU power, support for DDR5 memory and AMD EXPO profiles, ultra‑fast storage options with three M.2 slots (one PCIe 5.0 x4), and fast networking via Wi‑Fi 6E and 2.5 GbE. Additional conveniences include EZ‑Latch PCIe x16 slot, WIFI EZ‑Plug antenna connector, a friendly BIOS/UI with multi‑theme and AIO fan control, and UEFI AMI BIOS with Clear CMOS jumper.

Suitable for

• Gaming systems using AMD Ryzen 7000/8000/9000 series CPUs
• Compact high‑performance desktops (Micro ATX)
• Content creation and multimedia workflows
• Home or small office PCs requiring fast networking and storage

Key specifications

• Form factor: Micro ATX
• Chipset: AMD B850
• Processor socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
• Memory: 2× DDR5 DIMM slots, up to 128 GB, AMD EXPO support
• Power delivery: Digital 8+2+2 phase VRM
• Storage: 3× M.2 (including 1× PCIe 5.0 x4), SATA III, up to 7 drives supported, RAID support
• Expansion: PCIe x16 with EZ‑Latch
• Networking: Wi‑Fi 6E (802.11ax), Bluetooth 5.3, 2.5 GbE LAN
• Audio: Realtek ALC897, 7.1 channels
• BIOS: UEFI AMI 256 Mbit, ACPI 5.0, Clear CMOS jumper

How to use

Install the motherboard into a Micro ATX compatible case, mount the AM5‑series CPU and apply compatible cooler, insert DDR5 memory modules into the two DIMM slots following the motherboard manual for dual‑channel population, and connect power from the PSU to the 24‑pin and CPU power headers. Install storage devices into M.2 slots or SATA ports and configure RAID if required. Connect Wi‑Fi antenna to the WIFI EZ‑Plug and enable wireless in BIOS/OS. Use the BIOS or GIGABYTE software to adjust fan curves, X3D Turbo mode, memory XMP/EXPO settings and update firmware via Q‑Flash Auto Scan.

Recommendations

For stable high‑performance use, pair the motherboard with a quality AM5 cooler and a reliable power supply that meets the CPU thermal and power requirements. Use certified DDR5 modules with AMD EXPO profiles for straightforward memory setup, and place high‑speed NVMe drives in the designated PCIe 5.0 M.2 slot for maximum bandwidth.
