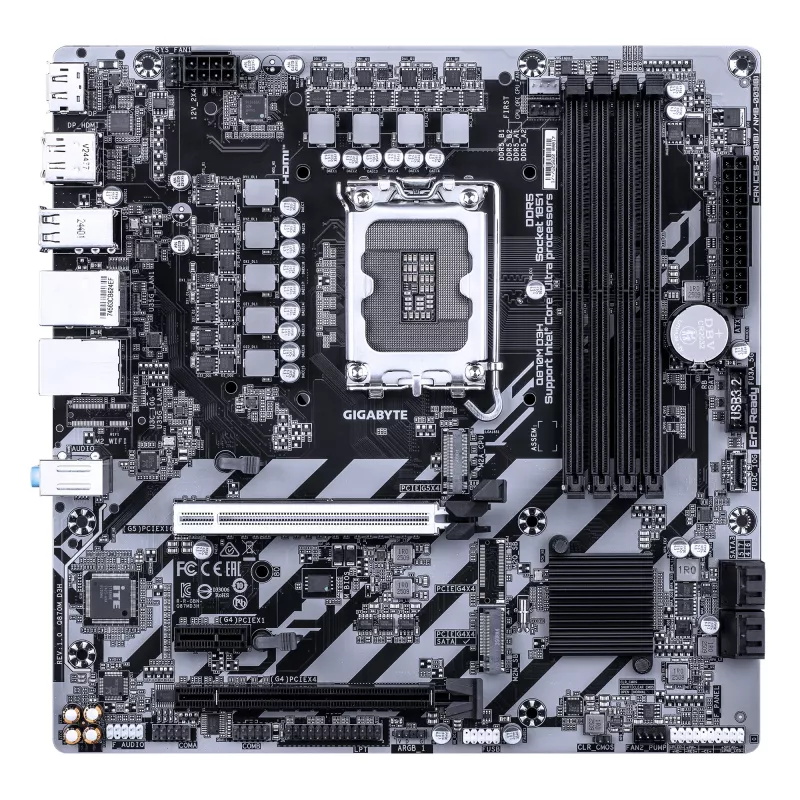

Gigabyte Q870M D3H Placa base, LGA1851, Micro ATX, Q870

The Gigabyte Q870M D3H is a Micro ATX motherboard built on the Intel Q870 Express chipset with an LGA1851 socket, supporting Intel Core Ultra (Series 2) processors. It offers four DIMM slots for DDR5 memory, dual Ethernet, and extensive connectivity including USB 3.2 Gen 1 and USB-C 3.2 Gen 2.

Key features

• Intel Q870 Express chipset
• LGA1851 socket for Intel Core Ultra (Series 2) processors
• 4+1+2-phase VRM
• DDR5 memory support up to 256 GB, up to 6400 MHz (O.C.)
• 2.5 Gigabit LAN and Gigabit LAN
• USB 3.2 Gen 1 and USB-C 3.2 Gen 2
• HD Audio (8-channel)
• D5 Bionic Corsa
• EZ-Latch

Specifications

• Brand: Gigabyte
• Model: Q870M D3H
• Form factor: Micro ATX (244x244mm)
• Chipset: Intel Q870 Express
• Socket: LGA1851
• Compatible processors: Intel Core Ultra (Series 2)
• Memory type: DDR5-SDRAM
• Memory slots: 4x DIMM
• Maximum memory: 256 GB
• Memory architecture: Dual channel
• Memory support: DDR5 9066(OC)/8800(OC)/8600(OC)/8400(OC)/8266(OC)/8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/5600 MT/s
• Extreme Memory Profile (XMP) support
• Graphics outputs: 1x HDMI 2.1, 2x DisplayPort 2.1
• Audio: Realtek 7.1 Surround Sound High Definition Audio codec
• Ethernet: Intel GbE LAN (1 Gb/s/100 Mb/s/10 Mb/s) LAN1, Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) LAN2
• LAN controller: Realtek RTL8125
• WLAN + Bluetooth: No
• Expansion slots: 1x PCI Express x16 (PCIe 5.0 x16), 1x PCI Express x16 (PCIe 4.0 x4), 1x PCI Express x1 (PCIe 4.0 x1)
• Storage: 2x M.2 slots, 4x SATA 6Gb/s ports
• M.2 slot 1: M key, type 2280, supports PCIe 4.0 x4/x2 SSD (M2A_CPU)
• M.2 slot 2: M key, type 2280, supports SATA and PCIe 4.0 x4/x2 SSD (M2M_SB)
• RAID support: RAID 0/1/5/10 for SATA storage devices
• Rear USB: 3x USB 3.2 Gen 1, 4x USB 2.0/1.1, 1x USB-C with USB 3.2 Gen 2
• Front USB: 1x USB Type-C header with USB 3.2 Gen 2, 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 1x USB 2.0/1.1 header (supports 2 additional USB 2.0/1.1 ports)

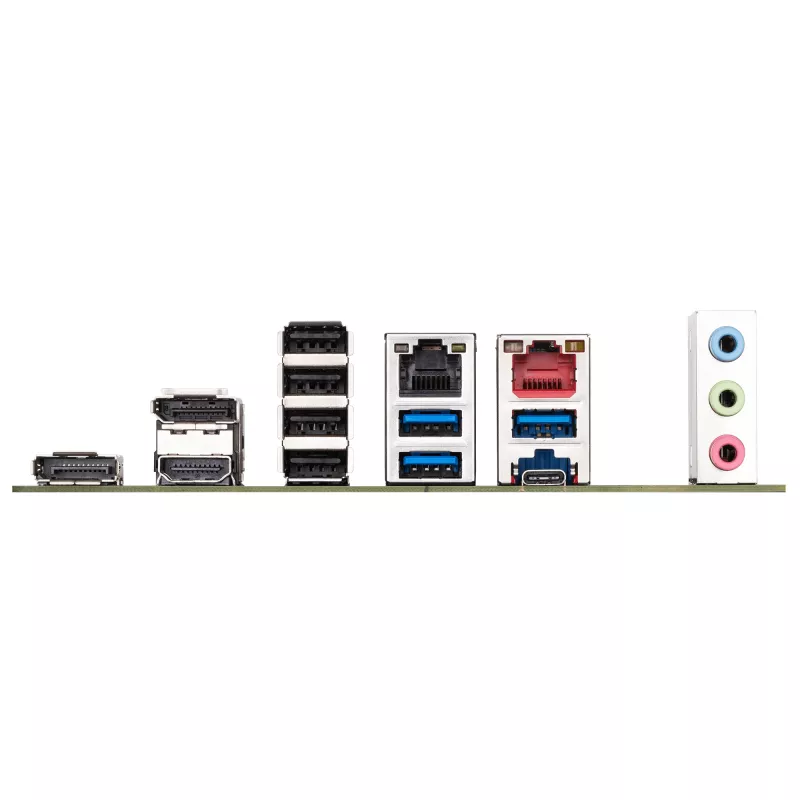

• Rear panel ports: 3x USB 3.2 Gen 1, 4x USB 2.0/1.1, 1x USB-C with USB 3.2 Gen 2, 2x DisplayPort, 1x HDMI, 2x RJ-45, 3x audio jack
• Internal ports: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x CPU fan/water cooling pump header, 1x system fan header, 1x system fan/water cooling pump header, 2x M.2 slot (Key M), 4x SATA 6Gb/s port, 1x USB Type-C header with USB 3.2 Gen 2, 1x USB 3.2 Gen 1 header, 1x USB 2.0/1.1 header, 1x addressable RGB LED strip header, 1x front panel header, 1x front panel audio header, 2x serial port header, 1x parallel port header, 1x Clear CMOS jumper
• BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Maximum resolution: 4096 x 2160 pixels
