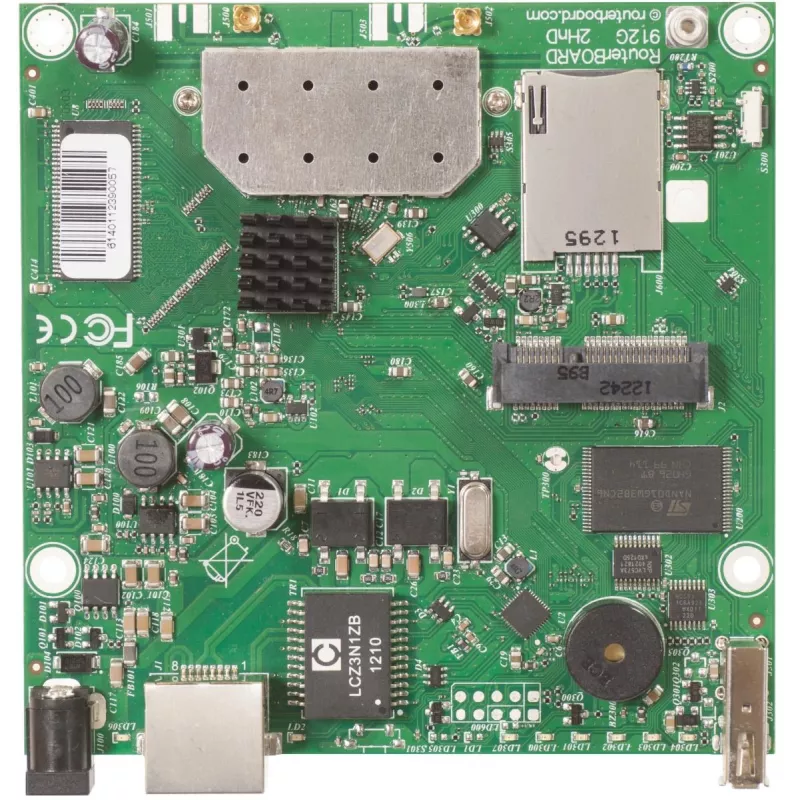

Placa base Mikrotik RB912UAG-2HPND Single-Band 2,4 GHz Wi-Fi 4

The RB912UAG-2HPnD motherboard is a compact single-band 2.4 GHz Wi‑Fi 4 (802.11n) router board designed for integration into router devices and custom network setups. It includes an integrated high‑power 2.4 GHz wireless card, an additional miniPCIe slot for a secondary 802.11 wireless card or a 3G modem, Gigabit Ethernet and a USB Type‑A port. The board supports PoE and operates at 8–30 V with typical power consumption of 13.5 W. Built‑in 16 kV ESD protection is provided on both Ethernet and MMCX ports.

Advantages

The motherboard combines an integrated high‑power 2.4 GHz radio with an extra miniPCIe slot for flexible expansion, enabling addition of a second wireless card or a 3G module. Gigabit Ethernet allows higher throughput to match 802.11n speeds, while PoE support and compact dimensions (105 x 105 mm) simplify installation in various enclosures. The 16 kV ESD protection on Ethernet and MMCX ports increases reliability in environments prone to electrostatic discharge.

Suitable for

• Small routers and gateway devices
• Custom wireless access points on the 2.4 GHz band
• Deployments requiring a secondary miniPCIe wireless or 3G modem
• Environments needing Gigabit uplink for higher throughput

Key specifications

• Model: RB912UAG-2HPnD
• Wi‑Fi band: Single‑band 2.4 GHz
• Top Wi‑Fi standard: Wi‑Fi 4 (802.11n)
• Maximum WLAN data transfer rate: 983.7 Mbit/s
• Ports: Gigabit Ethernet, USB Type‑A, MMCX
• Expansion: miniPCIe slot (for 802.11 card or 3G card)
• Power: 8–30 V, PoE support; typical power consumption 13.5 W
• Dimensions: 105 x 105 mm
• Weight: 0.067 kg
• ESD protection: 16 kV on Ethernet and MMCX ports

How to use

Install the RB912UAG-2HPnD board into a compatible router chassis or enclosure and connect power via PoE or a compatible 8–30 V supply. Fit an optional miniPCIe card if needed (either a secondary 802.11 radio or a 3G modem) using the provided slot and secure any antenna connections to the MMCX connectors. Connect the Gigabit Ethernet port to your network backbone and configure wireless and routing settings using MikroTik RouterOS or a compatible management interface.

Recommendations

For reliable operation, mount the board in a grounded enclosure and use proper antenna placement for 2.4 GHz coverage. Ensure firmware and RouterOS packages are up to date and observe ESD precautions when handling the board to protect the 16 kV ESD‑protected ports.
