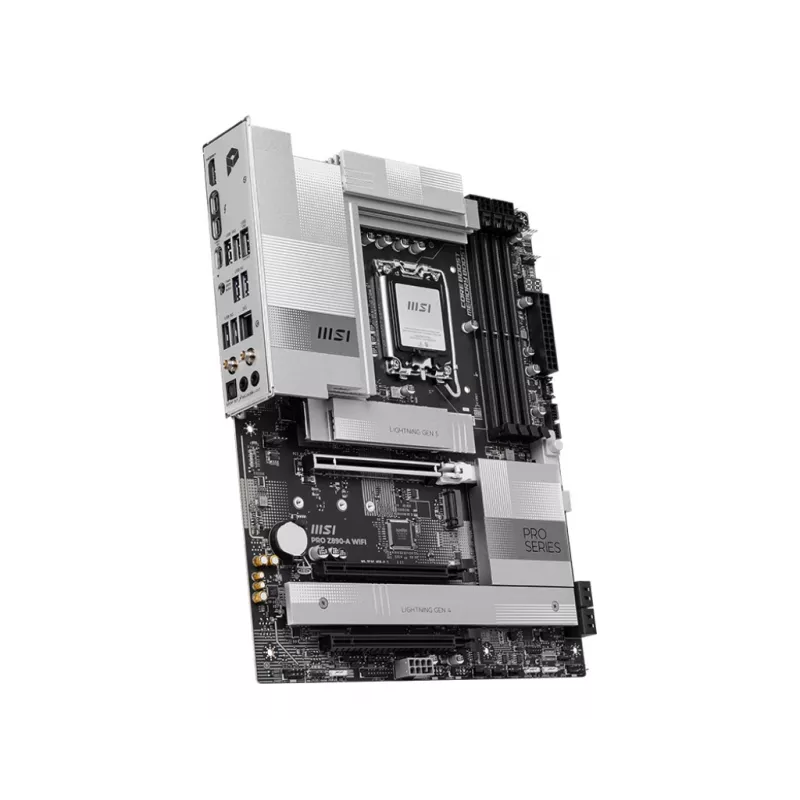

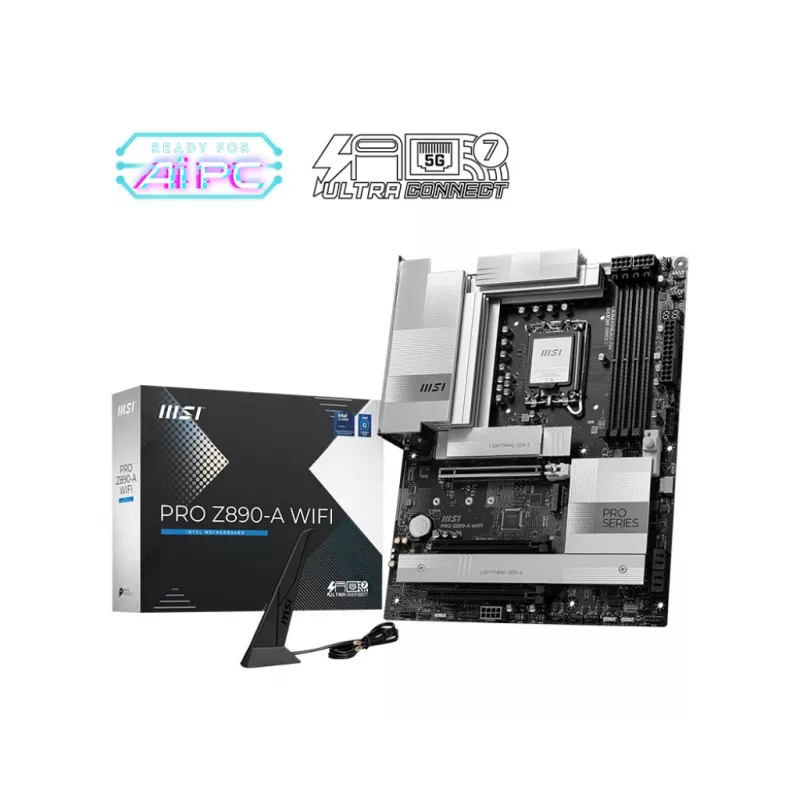

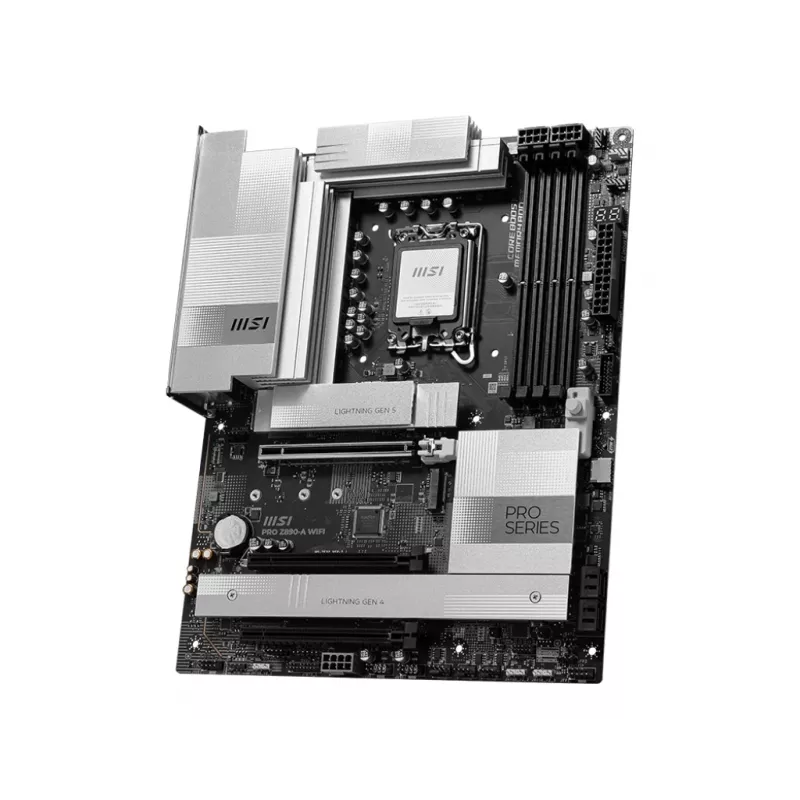

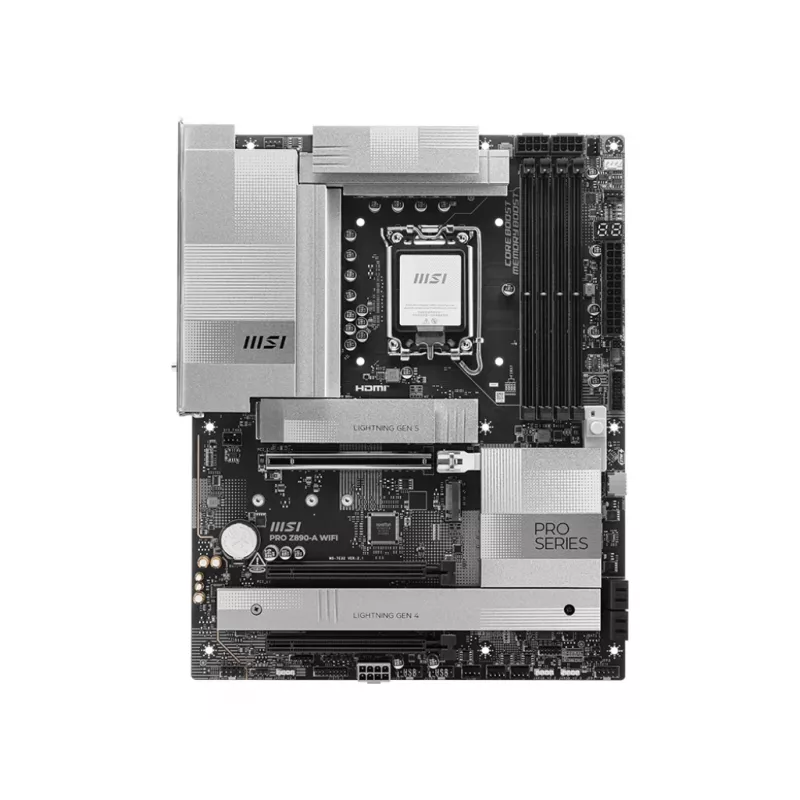

Placa base MSI PRO Z890-A WIFI Intel Z890 LGA 1851 ATX DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, 5 Gb Ethernet

The MSI PRO Z890-A WIFI is an ATX motherboard for Intel LGA 1851 (Socket V1) systems, designed to support the latest Intel Core Ultra processors. It features an understated silver design that pairs with both white and black PC builds and integrates DDR5 memory support up to 256 GB, multiple storage interfaces including PCIe 5.0 M.2 and SATA III, RAID capability, 5 Gb LAN and Wi‑Fi 7 connectivity, Thunderbolt 4 support, and supplemental PCIe power for high-performance configurations.

Advantages

The board uses a 16+1+1+1 digital VRM power design with dual power connectors and 90A Smart Power Stages to sustain high-end processors. Built‑in networking includes true Wi‑Fi 7 with EZ Antenna and 5 Gigabit Ethernet for low-latency, high-bandwidth transfers. The PCB also provides PCIe 5.0 M.2 with EZ M.2 Shield Frozr II and Thunderbolt 4 connectivity, facilitating fast storage and peripheral options while maintaining reliable thermal and power delivery.

Suitable for

• High-performance desktop builds using Intel Core Ultra processors
• Content creation and professional multitasking with large DDR5 memory capacities
• Systems requiring high-speed storage (PCIe 5.0 M.2) and RAID configurations
• Workstations needing fast wired and wireless networking (5 Gb LAN, Wi‑Fi 7)

Key specifications

• Form factor: ATX
• Chipset: Intel Z890
• Processor socket: LGA 1851 (Socket V1)
• Memory: 4 × DDR5 slots, up to 256 GB
• Storage interfaces: PCIe 5.0 M.2 (with EZ M.2 Shield Frozr II), SATA III, RAID support
• Networking: Wi‑Fi 7 (EZ Antenna), 5 Gigabit Ethernet

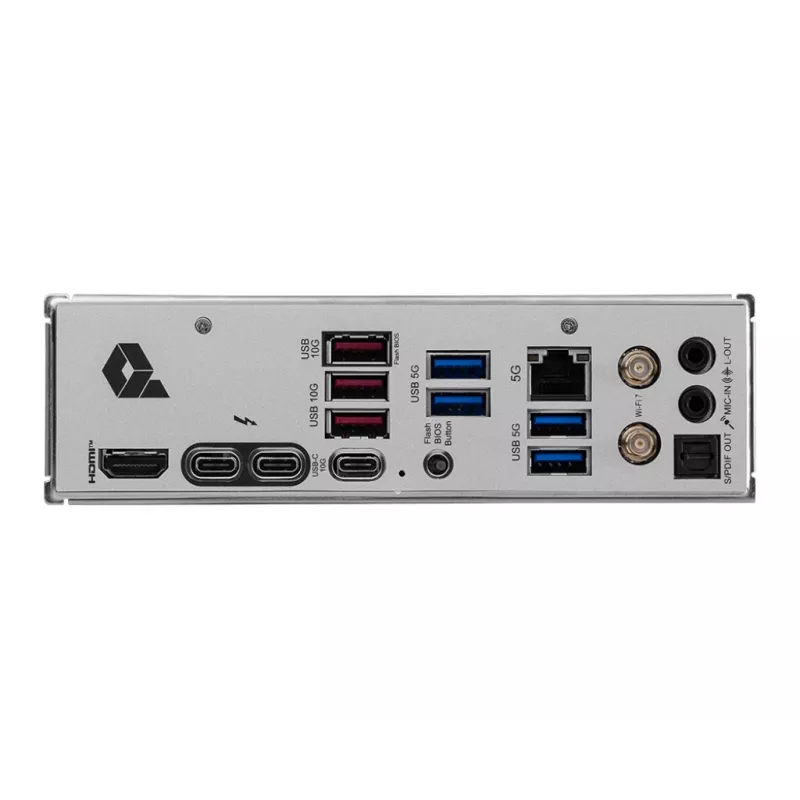

• Expansion & I/O: Thunderbolt 4 support, supplemental PCIe power

How to use

Install the motherboard into a compatible ATX case and mount an Intel LGA 1851 processor following the CPU cooler manufacturer’s instructions. Populate DDR5 memory modules across the four DIMM slots according to the motherboard manual for optimal channel configuration. Connect storage devices to the M.2 and SATA III ports and configure RAID in BIOS if required. Attach power from the PSU to the 24‑pin ATX and supplemental CPU power connectors. Configure networking and device settings in BIOS and use MSI Center for system utilities and AI-enhanced features.

Recommendations

For stable operation with high-end processors and heavy workloads, use a quality PSU with the appropriate supplemental PCIe and CPU power connectors, ensure adequate case airflow for M.2 and VRM cooling, and keep BIOS and drivers up to date via MSI support tools.
