Placa de carcasa Rittal TS 8609.150 — carcasa de acero, gris, compatible con TS/PS, 1 ud.

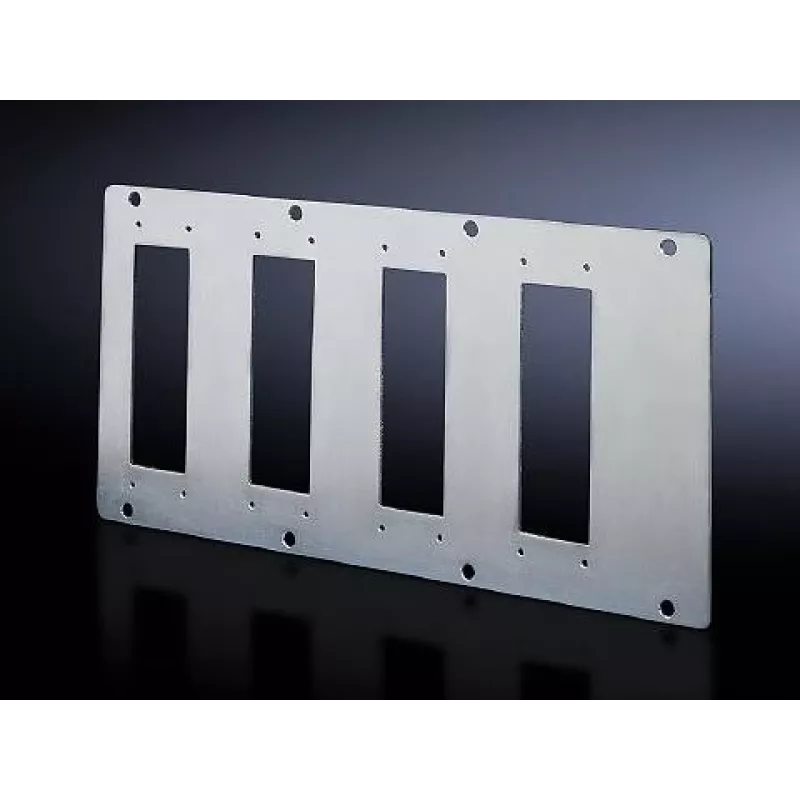

Rittal TS 8609.150 is a grey steel enclosure panel engineered for use with Rittal TS and PS systems. Supplied as a single unit, this steel housing panel is intended as a mounting surface or interior element within electrical and control cabinets. Its plated steel construction and neutral grey finish make it suitable for replacing or expanding cabinet interiors where a robust, flat mounting area for components and wiring is required.

Advantages

This steel enclosure panel provides a durable and stable mounting surface for electrical components and terminal strips. The grey finish offers a professional, neutral appearance that integrates with standard Rittal cabinets. Supplied as a single, lightweight unit, the panel is easy to handle during installation and service. Compatibility with TS and PS system frames allows straightforward integration into existing cabinet layouts without the need for extensive modification.

Suitable for

Key specifications

How to use

Position the enclosure panel inside the TS or PS cabinet frame at the intended mounting level and secure it according to the cabinet manufacturer’s assembly points. Ensure the panel sits flush and is fastened firmly to avoid movement when components or wiring are attached. After installation, mount terminal strips, DIN-rail accessories or component carrier systems as required, and route cables with suitable cable ties or conduits to maintain organized wiring inside the cabinet.

Recommendations

Prior to installation, verify dimensions and mounting points against the specific TS or PS cabinet variant to confirm fitment. For environments with higher corrosion risk, consider additional surface protection or selecting a panel material specified for such conditions. Follow standard electrical safety procedures while installing and servicing components attached to the panel.
