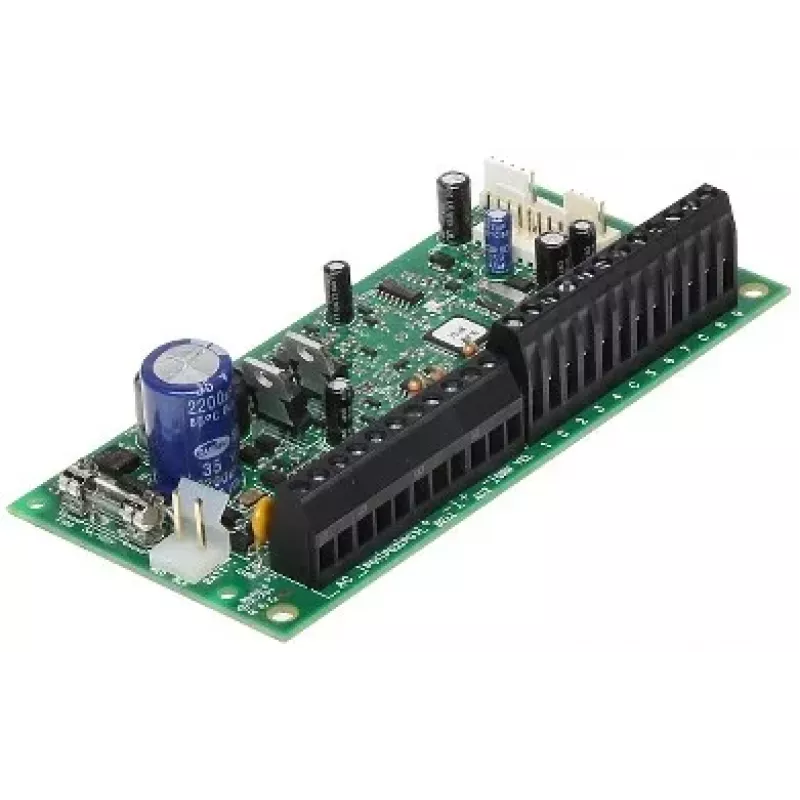

Placa de Control de Alarma Paradox SP65-E9R, 9 Zonas, 2 Particiones, Marcador PSTN

The Paradox SP65-E9R is a high-performance alarm control board designed for residential and commercial security systems. With 9 on-board zones (expandable to 32) and support for up to 2 partitions, this board offers flexible and reliable intrusion detection. Built-in PSTN dialer and compatibility with IP and GPRS/GSM modules ensure robust communication. The board features 2 on-board PGMs (expandable to 16), 32 user codes, and a 256-event buffer. Firmware upgradeable via 307USB, it supports StayD mode and is compatible with WinLoad and BabyWare software.

Advantages

Easy to install and configure, the SP65-E9R provides scalable security with expandable zones and PGMs. Its real-time clock with battery backup ensures accurate event logging. The board's EEPROM memory retains settings even during power loss.

Suitable for

• Residential alarm systems
• Small to medium commercial premises
• Integration with Paradox keypads and modules

Key specifications

• On-board Zones: 9 (18 with ATZ)
• Expandable Zones: Up to 32
• Partitions: 2
• User Codes: 32
• On-board PGMs: 2
• Expandable PGMs: Up to 16
• Event Buffer: 256 events
• Communication Bus: 4-wire
• PSTN Dialer: Built-in
• IP Module Compatibility: Yes (e.g., Paradox IP150/IP150+)
• GPRS/GSM Module Compatibility: Yes (e.g., Paradox PCS250/PCS250G/PCS265)
• Firmware Upgradeable: Yes (via 307USB)
• Keypad Support: Up to 15
• Auxiliary Power Output: 1A
• Power Input Requirement: 16.5Vac, 40VA (transformer not included)
• Reporting Formats: Contact ID, SIA
• StayD Mode: Yes
• Software Compatibility: WinLoad, BabyWare
• Real-Time Clock: Yes, with battery backup
• Memory Type: EEPROM

Recommendations

For optimal performance, pair with Paradox keypads and communication modules. Ensure proper power supply and backup battery for uninterrupted operation.
