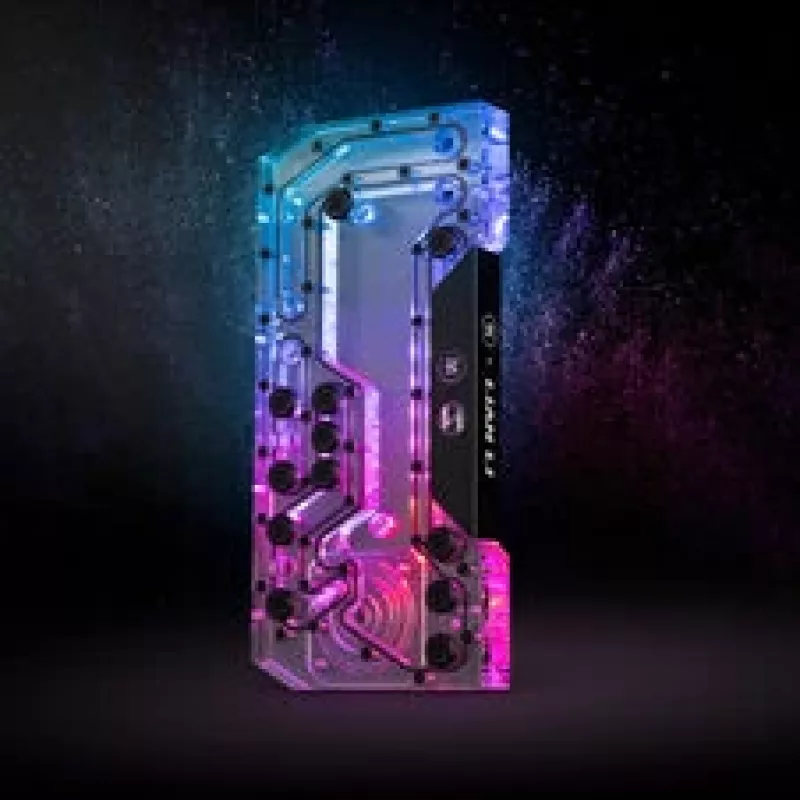

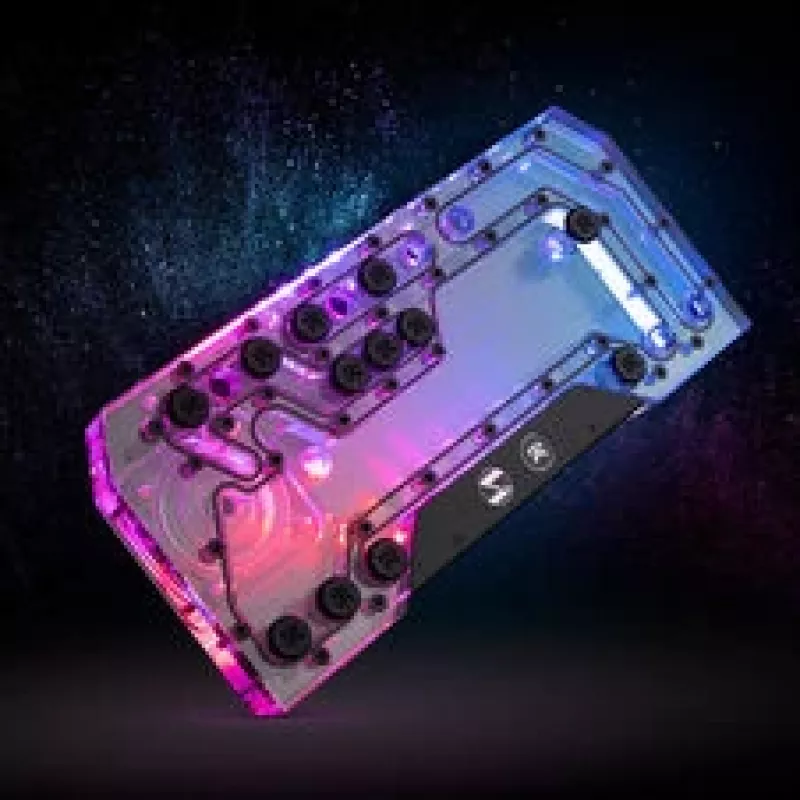

Placa de distribución de refrigeración líquida EK Water Blocks EK-Mana G2 para Lian Li PC-O11D EVO (bomba D5) 0000012641

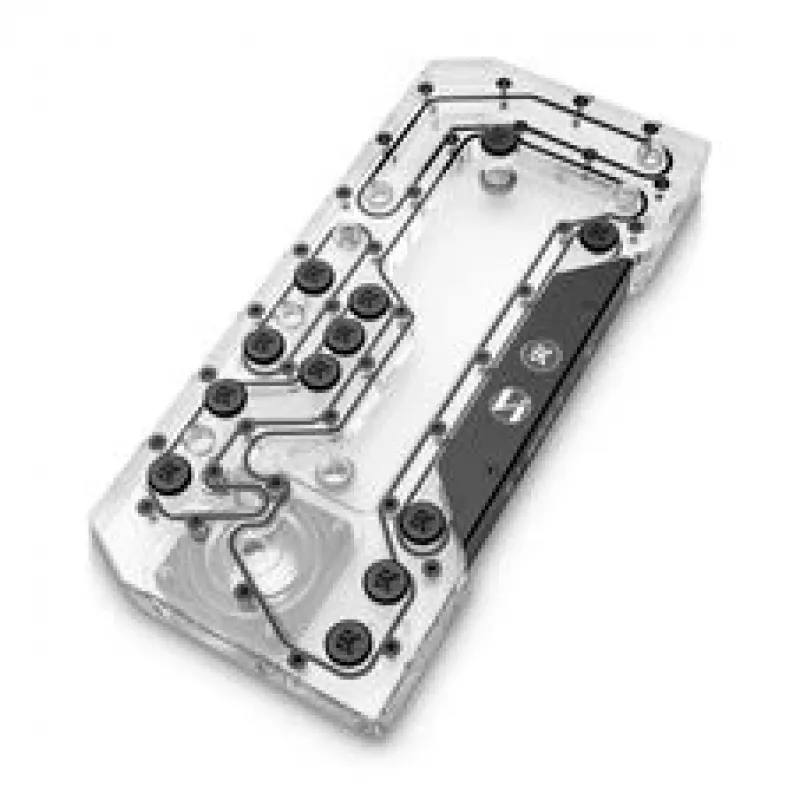

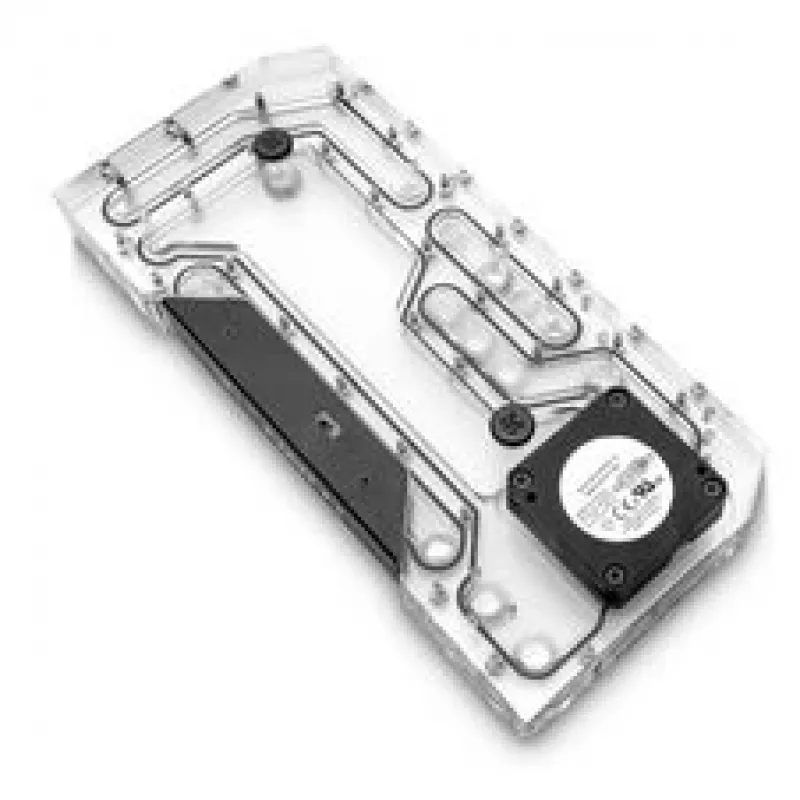

EK Water Blocks EK-Mana G2 distribution plate for Lian Li PC-O11D EVO is a purpose-built component that integrates a mount for a D5 pump and organizes coolant flow within the PC-O11D EVO chassis. The plate provides a dedicated location for the pump, defined inlet and outlet ports and tidy routing for tubing to simplify assembly of a custom water-cooling loop. It is intended to work with standard D5-style pump housings and to match the dimensions and mounting points of the PC-O11D EVO case layout.

Advantages

The EK-Mana G2 distribution plate centralizes pump placement and flow routing, reducing the number of visible fittings and hoses inside the chassis. Its design supports easier installation by providing predefined ports and secure mounting for a D5 pump, which helps maintain stable coolant flow and reduces vibration transfer to the case. By organizing inlet and outlet connections, the plate contributes to a cleaner internal layout and more predictable loop routing for maintenance and upgrades.

Suitable for

• Custom PC water-cooling loops in the Lian Li PC-O11D EVO chassis
• Systems using a D5-style pump that require a dedicated mount and routing
• Builders aiming for neat tubing runs and simplified fill/drain operations
• Configurations where centralized pump placement improves space utilization

Key specifications

• Compatibility: designed specifically for installation in the Lian Li PC-O11D EVO chassis
• Pump support: accommodates D5-style pumps with standardized mounting points
• Ports: dedicated inlet and outlet ports for straightforward tubing connections
• Material and finish: durable construction suitable for coolant contact and case integration
• Function: combines pump mounting and distribution paths to manage coolant flow

How to use

Install the EK-Mana G2 distribution plate into the designated location of the Lian Li PC-O11D EVO case according to the case and plate alignment. Secure the D5-style pump to the plate using the pump mounting points and fasteners recommended by the pump manufacturer. Connect inlet and outlet tubing to the plate’s ports with appropriate fittings and clamps, ensuring all connections are leak-tight. Fill the loop, perform leak testing, and run the pump at low speed for an initial circulation before normal operation.

Recommendations

Use compatible D5 pump fittings and tubing sizes to ensure proper sealing and flow. Perform a pressure-free leak test for several hours before powering other system components. Regularly inspect connections and coolant condition as part of routine maintenance.
