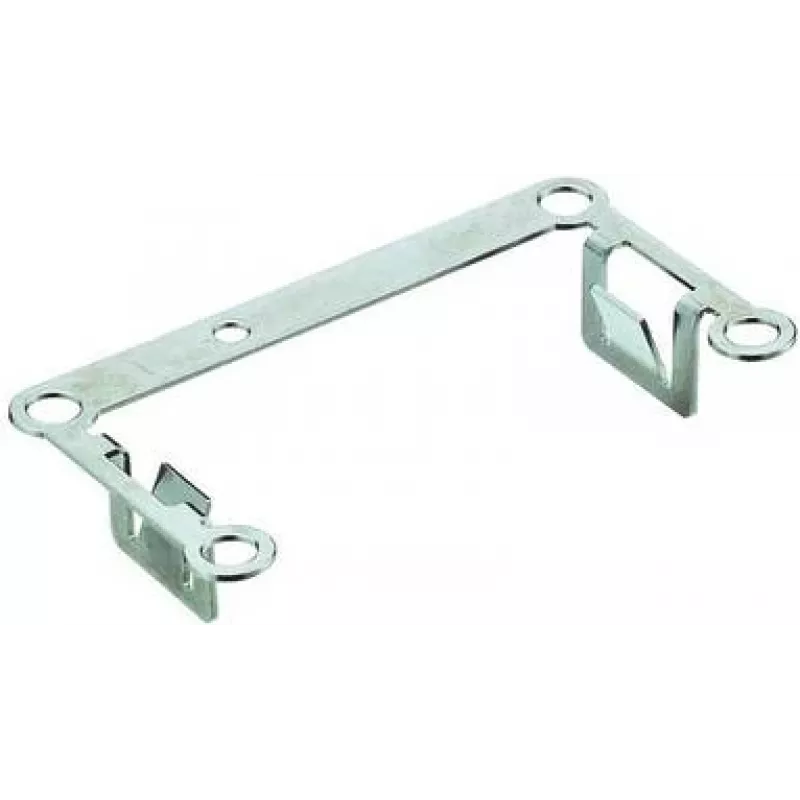

Placa de montaje Harting 09140009947 para conectores industriales — placa de enclavamiento

Harting Verrastblech mounting plate 09140009947 is a robust metal mounting interface designed for secure installation of Harting industrial connectors and housings. The plate provides a flat, durable surface for panel or chassis attachment, ensuring reliable mechanical fixation and correct alignment of connectors in industrial environments such as machine panels and control cabinets.

Advantages

The mounting plate is made from corrosion-resistant metal with a precise form factor that maintains connector position under mechanical stress and vibration. Its sturdy construction simplifies installation and reduces the risk of connector misalignment, contributing to longer service life of the connection. The standardised dimensions make it compatible with a wide range of Harting housings and connector types used in heavy-duty industrial applications.

Suitable for

• Panel and chassis mounting of Harting industrial connectors
• Control cabinets and distribution panels in industrial settings
• Machine tool frames and production equipment
• Enclosures requiring robust connector fixation and alignment

Key specifications

• Material: corrosion-resistant metal suitable for industrial use
• Form factor: flat mounting plate for panel or chassis integration
• Function: provides mechanical fixation and alignment for industrial connectors
• Application environment: designed for use in cabinets, machines and other industrial equipment

How to use

Install the mounting plate by aligning it with the prepared cutout or flat panel surface, then secure it using appropriate screws or fasteners compatible with the panel material and thickness. Insert the Harting connector or housing into the plate opening, ensuring correct orientation, and tighten the connector mounting hardware according to the connector manufacturer’s torque recommendations. Verify mechanical stability and electrical continuity after installation.

Recommendations

Choose compatible fasteners and sealing elements for the installation environment. For outdoor or corrosive environments, use additional protective coatings or stainless fasteners. Follow Harting connector instructions for mating cycles and torque values to maintain reliable electrical and mechanical performance.
