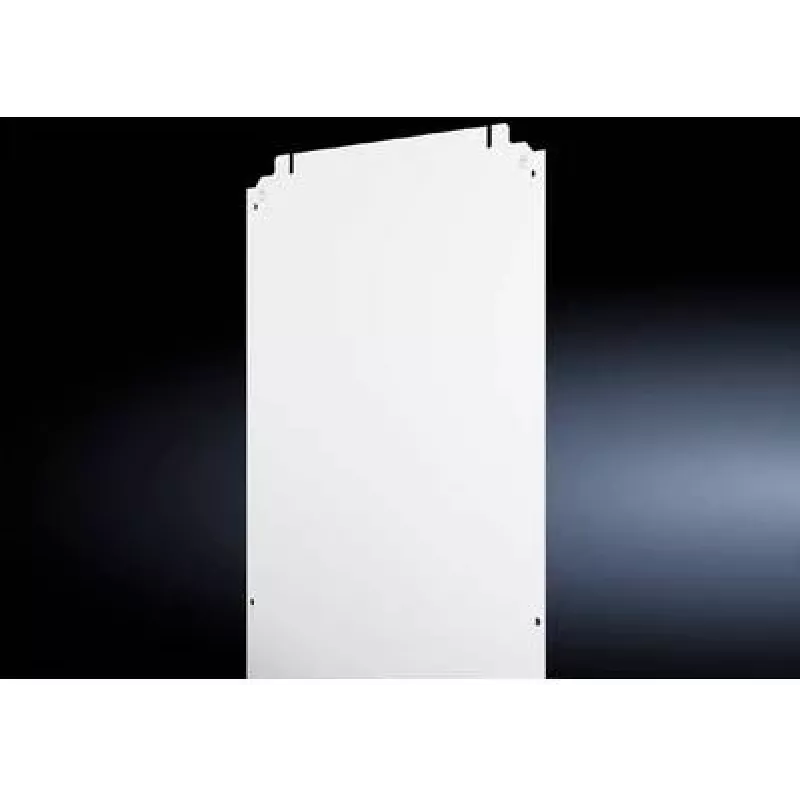

Placa de montaje Rittal KX 1571.800, acero, 400×400 mm, 2 mm, blanco

Rittal KX 1571.800 is a steel mounting plate designed for installation inside electrical enclosures and control cabinets. The plate measures 400 × 400 mm, has a material thickness of 2 mm and a white finish. It is supplied as a single flat plate suitable for retrofitting existing cabinets or for new cabinet assemblies, providing a stable surface to mount terminal blocks, small devices, and other electrical components.

Advantages

The steel construction ensures reliable mechanical strength and dimensional stability under normal operating conditions. With a 2 mm thickness the plate offers a balance between rigidity and ease of handling. The white finish improves visibility for wiring and component layout and is compatible with typical enclosure interiors. Supplied as a single plate, it simplifies installation and reduces the need for custom fabrication.

Suitable for

Key specifications

How to use

Place the mounting plate inside the cabinet and align it with the enclosure's internal mounting points or rails. Secure the plate using appropriate fasteners through pre-existing holes in the enclosure or by drilling mounting holes according to the cabinet layout. Once fixed, mount terminal blocks, DIN-rail adapters or small devices onto the plate using screws, spacers or insulation bushings as required. Ensure that clearances for wiring, ventilation and component heat dissipation are observed.

Recommendations

For reliable installation, use corrosion-resistant fasteners and, where necessary, apply protective insulating washers between the steel plate and live electrical parts. Verify suitability of the white finish for the intended environment and consider additional surface treatments if exposure to aggressive atmospheres is expected.
