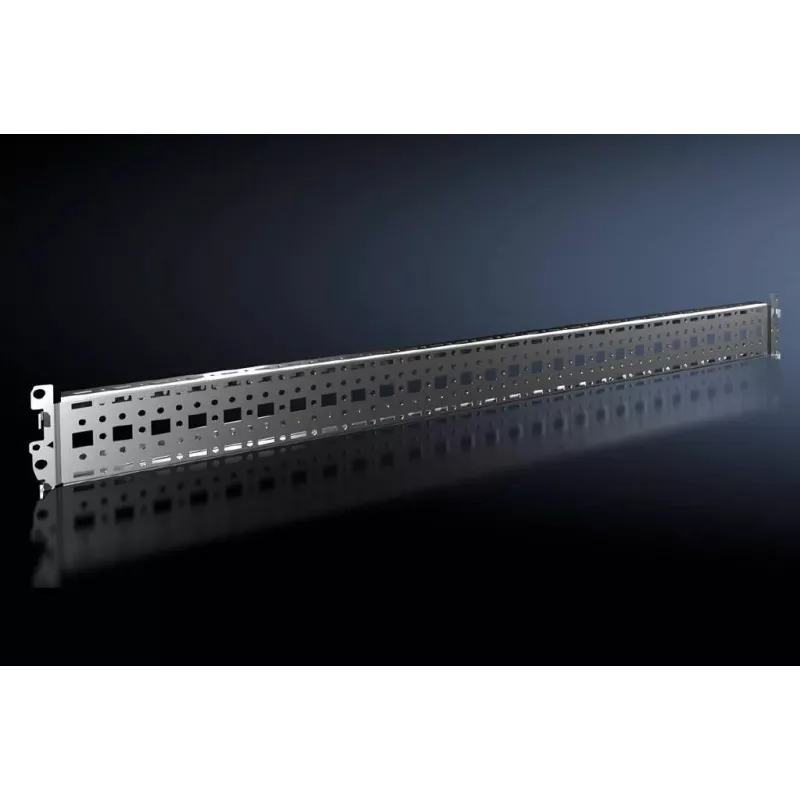

Placa de montaje Rittal VX 8617.040, acero, gris, ancho 800 mm

Rittal VX 8617.040 mounting plate is a steel interior plate in a grey finish designed for use inside electrical enclosures and control cabinets. With a width of 800 mm, this mounting plate provides a solid internal mounting surface for components, terminal strips and equipment. Supplied in packs of four, it suits installations where a robust and flat support is required on the outer mounting level of the enclosure frame.

Advantages

This steel mounting plate offers stable mechanical support and good load distribution for mounted components. The grey finish provides corrosion protection and a uniform appearance inside the cabinet. The 800 mm width and consistent panel dimensions simplify cutouts and component layout, while delivery in multi-packs supports faster panel assembly and retrofit work. The plate is compatible with standard enclosure mounting practices and accommodates a variety of electrical and control equipment.

Suitable for

Key specifications

How to use

Install the mounting plate inside the enclosure on the intended mounting level of the frame using compatible fasteners and spacers to ensure correct positioning and insulation where required. Mark and cut or drill the plate as needed for component holes and cable entry, keeping to safe working practices for cutting and deburring steel. Arrange components to distribute weight evenly across the plate and secure devices according to manufacturer torque and fastening recommendations.

Recommendations

Ensure appropriate earthing and insulation when mounting live equipment; use recommended cable glands and protective grommets at cable entry points. For heavy equipment, add additional support brackets or cross members to reduce stress on fasteners and the plate. Check compatibility of fasteners and spacers with the enclosure material to avoid galvanic corrosion.
