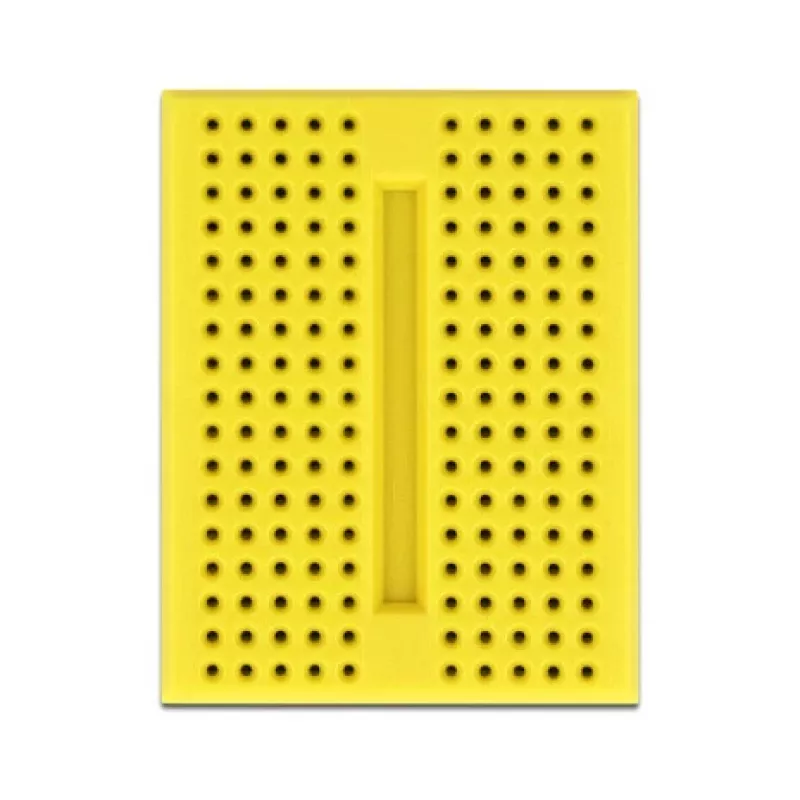

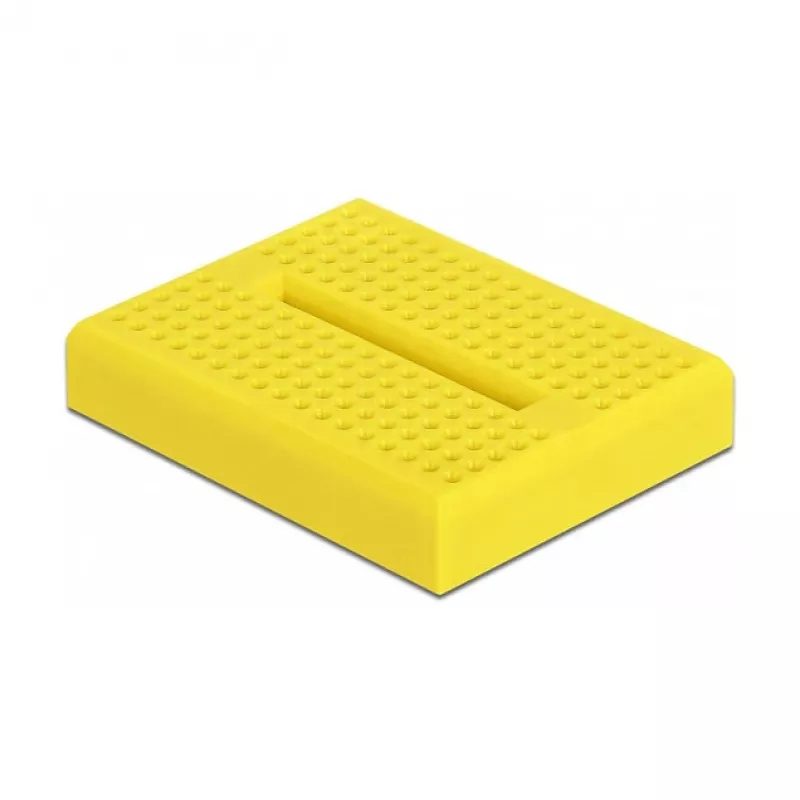

Placa de prototipado DELOCK 18320 — placa de prototipado de plástico, amarillo, 36×46×10 mm

DELOCK 18320 is a compact plastic prototype breadboard designed for fast solderless assembly of small electronic circuits. The small yellow board measures 36 × 46 × 10 mm and is supplied in a box. Its compact footprint makes it suitable for hobby projects, compact prototypes, educational use and other applications where quick changes and limited space are important.

Advantages

The breadboard allows rapid reconfiguration of circuits by repositioning components without soldering. It accepts common through-hole components such as transistors, diodes, LEDs and capacitors. An adhesive sticker on the bottom enables easy mounting on smooth surfaces and can be removed without leaving residue; the board can also be secured with two screws for a more permanent installation.

Suitable for

• Arduino shield prototyping
• Switching tests and circuit experiments
• Small PCB projects and compact prototypes
• Hobby electronics, laboratories, schools and universities

Key specifications

• Brand: DELOCK
• Model / MPN: 18320
• EAN: 4043619183203
• Material: plastic
• Colour: yellow
• Dimensions: 36 × 46 × 10 mm (W × D × H)
• Packaging: supplied in a box

How to use

Place the board on a clean, flat surface. If temporary mounting is desired, remove the protective film from the adhesive sticker on the bottom and press the breadboard onto the surface; to remove, peel off the board carefully to avoid damage. For a fixed installation, align the board and fasten it with two screws through the mounting points. Insert through-hole components into the contact holes to build circuits, and change the circuit layout by repositioning components as required.

Recommendations

Use the breadboard for low-voltage prototyping and testing. Avoid exposure to high temperatures, mechanical stress or corrosive environments. When mounting on delicate surfaces, test the adhesive on a small area first.
