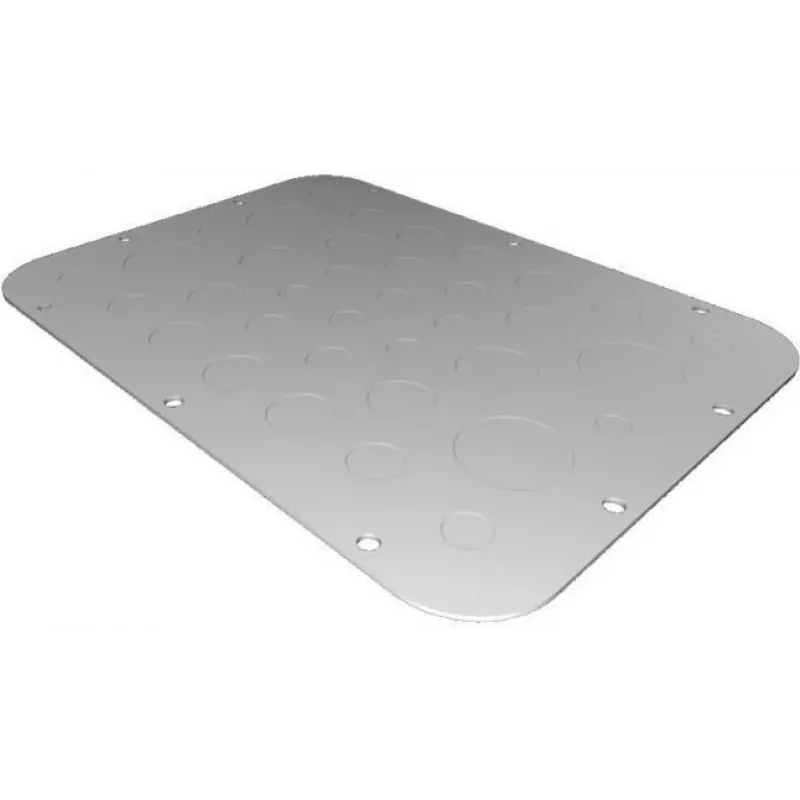

Placa para rack Rittal AX 2575.100 — acero, gris claro, 301×221 mm

Rittal AX 2575.100 is a steel rack plate for mounting components inside control, electrical and server cabinets. Finished in light grey, the plate measures 301 × 221 mm with a depth of 221 mm and a weight of 795 g. The surface includes metric pre‑piercing (size group 5) to enable fast creation of cable entries and mounting points; the product is supplied as a single unit.

Advantages

The steel construction provides mechanical stability and reliable support for mounted equipment while the light grey finish offers corrosion resistance and a neutral appearance that suits industrial and IT environments. Metric pre‑piercing reduces preparation time on site by allowing precise knock‑out of holes for cable glands and fixings. Compact dimensions make this plate suitable for use in smaller enclosures where space is limited.

Suitable for

Key specifications

How to use

Place the rack plate at the required location inside the enclosure and align it with existing mounting points or mark new fixing positions. Create cable entries and mounting holes by knocking out the pre‑pierced sections with a screwdriver or similar tool. Secure the plate using appropriate screws and fixings for the cabinet material, then install devices and cable glands as needed. Verify that installed equipment is firmly supported and that cable entries are sealed where required to maintain enclosure protection.

Recommendations

When creating knock‑outs, wear appropriate hand protection and use a screwdriver sized to the pre‑piercing to avoid deforming surrounding areas. Select screws and grounding methods compatible with steel plates and the enclosure to ensure mechanical stability and electrical safety. For environments requiring higher corrosion resistance, consider additional surface treatment or using plates specified for corrosive conditions.
