Polipasto eléctrico Einhell TC-EH 1000

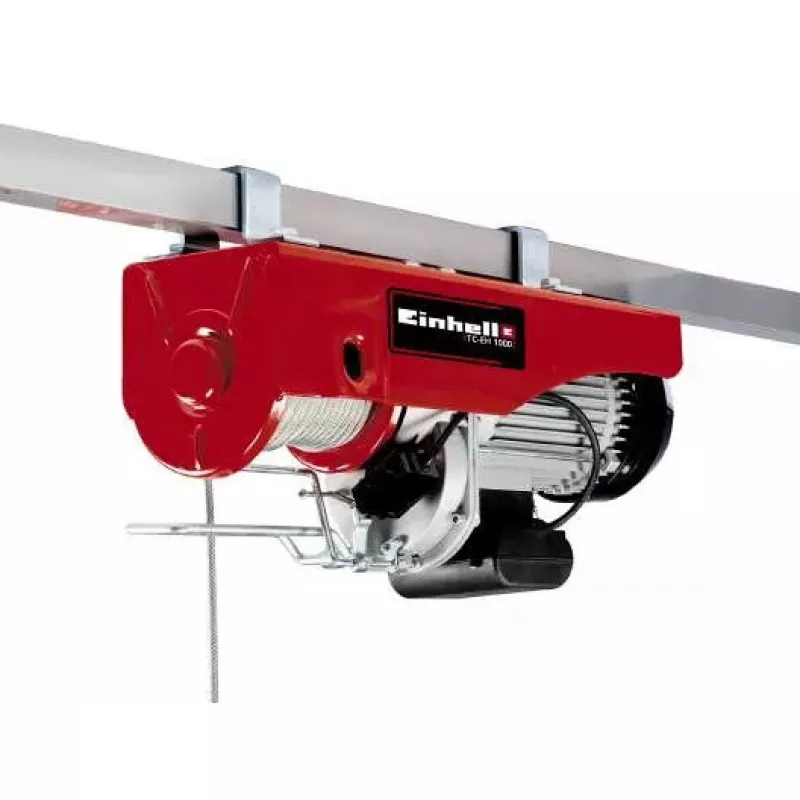

The Electric Hoist Einhell TC-EH 1000 is a compact, mains-powered lifting device designed for indoor and sheltered outdoor use. Equipped with a 1600 W motor, the hoist lifts loads up to 999 kg and provides a maximum lifting height of 18 m when used without a return pulley and 9 m with a return pulley. Its 220–240 V AC, 50 Hz power supply and compact footprint (244 mm width × 544 mm depth × 343 mm height) make it suitable for garages, workshops and small construction or maintenance tasks where reliable vertical movement of goods is required.

Advantages

The robust 1600 W motor delivers consistent lifting power for heavy loads while the two lifting-height modes increase versatility for different installation scenarios. Compact dimensions and a straightforward electrical connection simplify mounting and storage. The hoist is engineered for practical use with clear load capacity limits and a design that supports repetitive lifting cycles in light industrial and hobbyist environments.

Suitable for

• Lifting construction materials on small building sites
• Moving engines, transmissions or heavy machine parts in a workshop
• Hoisting stacked supplies or pallets in garages and storerooms
• Assisting with maintenance tasks that require vertical load positioning

Key specifications

• Motor power: 1600 W
• Maximum lifting capacity: 999 kg

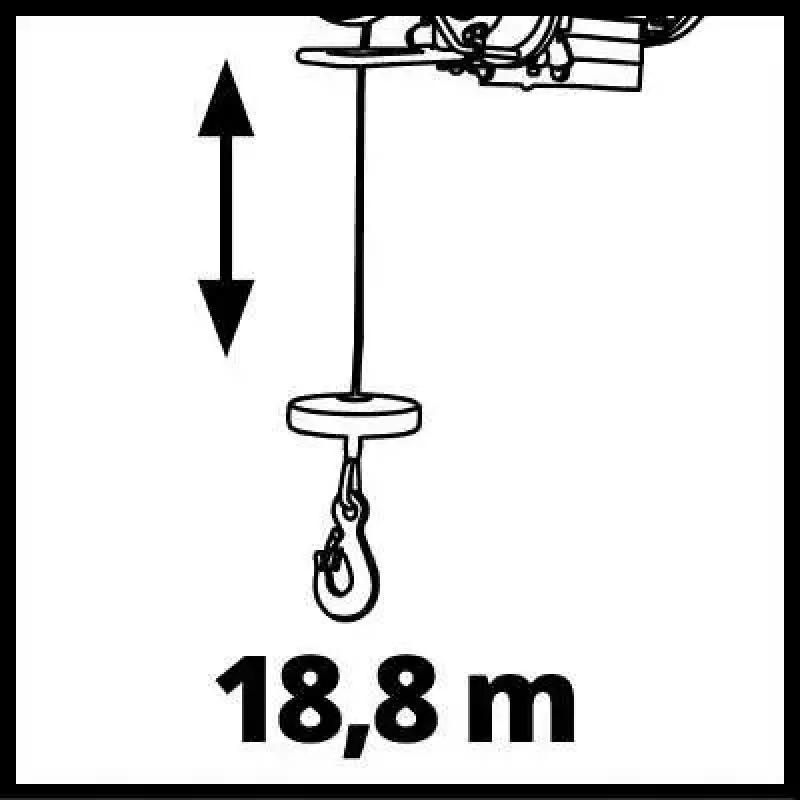

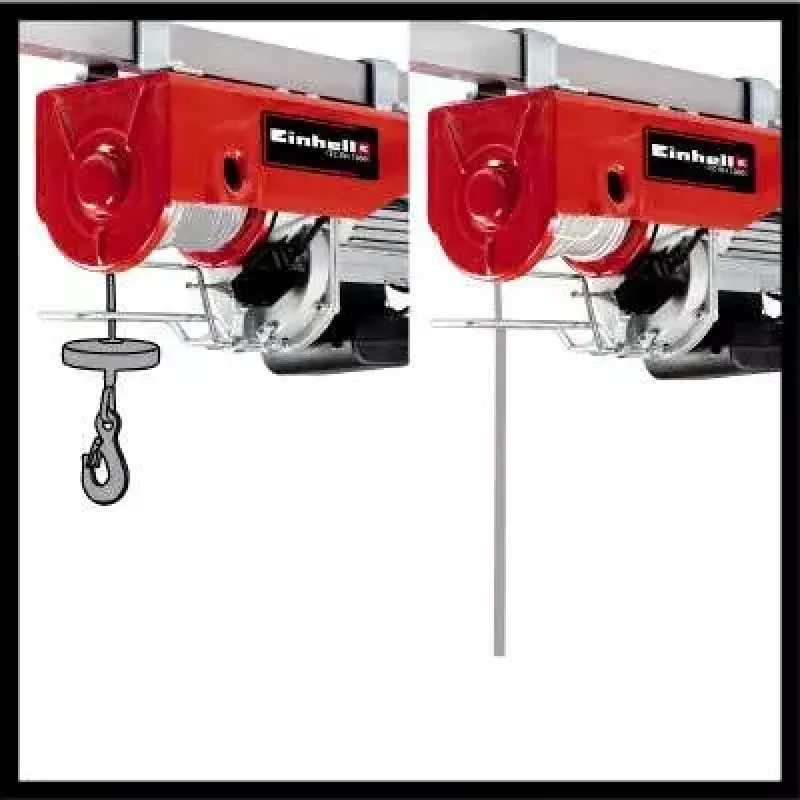

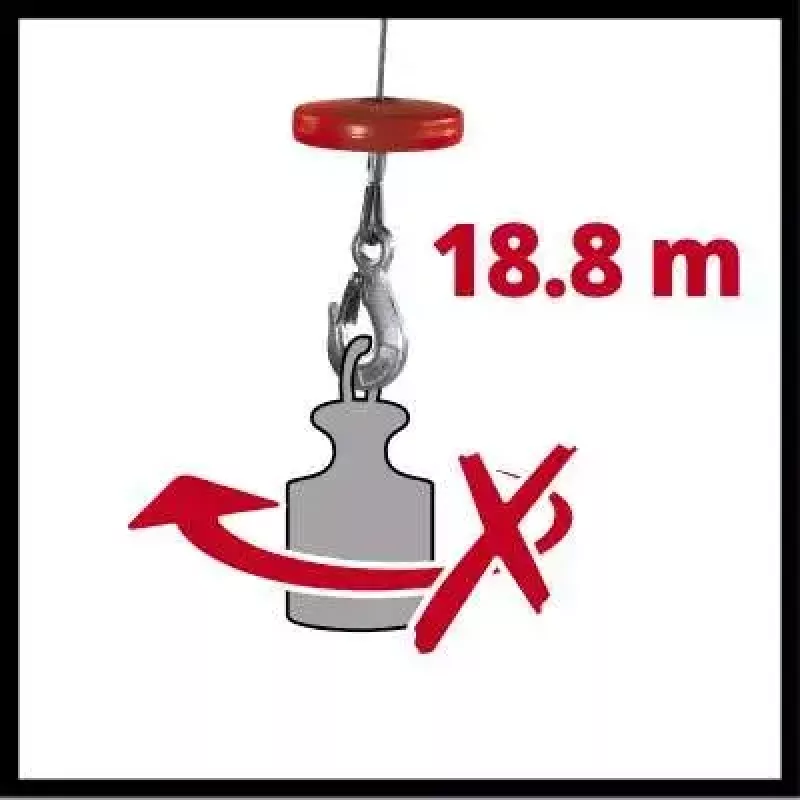

• Lifting height without return pulley: 18 m
• Lifting height with return pulley: 9 m
• Power supply: 220–240 V AC, 50 Hz
• Dimensions (W × D × H): 244 × 544 × 343 mm

How to use

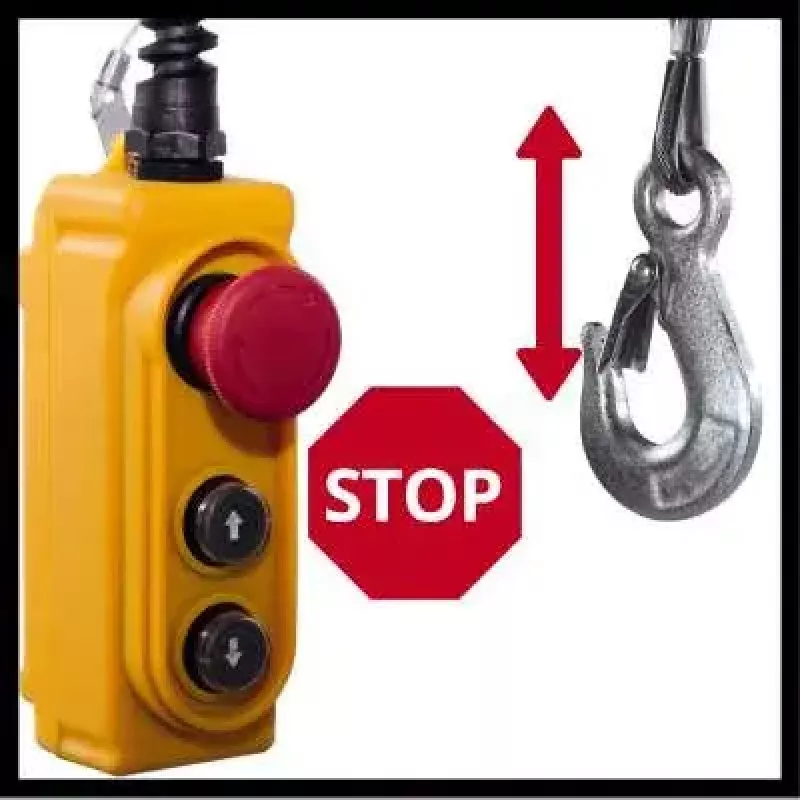

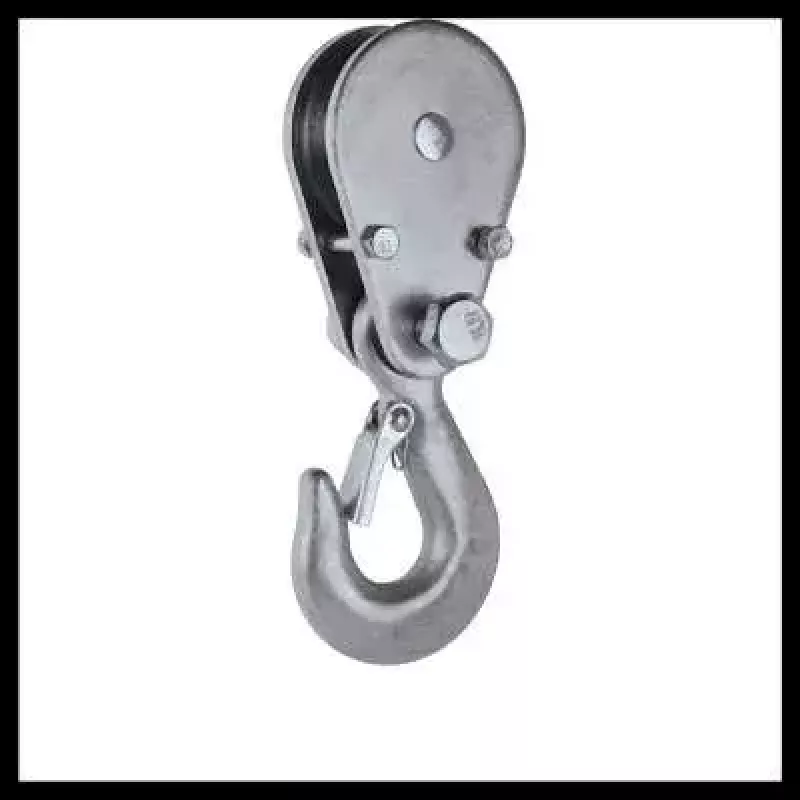

Install the hoist on a secure, load-bearing support according to local safety regulations and the manufacturer's mounting instructions. Connect the device to a compatible 220–240 V, 50 Hz power outlet and ensure that the electrical supply is correctly rated and grounded. Select the appropriate rope configuration (with or without return pulley) to achieve the required lifting height and attach the load using suitable slings or lifting gear that meet the load rating. Operate the hoist controls steadily, keeping clear of the suspended load and ensuring a stable, balanced lift. Regularly inspect rope, hooks and mounting fittings for wear before use.

Recommendations

Use certified lifting accessories and observe the maximum load limit of 999 kg. Do not exceed rated capacity, avoid side loads, and secure loads to prevent slipping. Follow local regulations for electrical connection, periodic inspection and maintenance. Store the hoist in a dry place when not in use and perform routine checks on the rope and motor components to ensure safe operation.
