PORT Designs fuente de alimentación GaN 65W USB-C conector EU

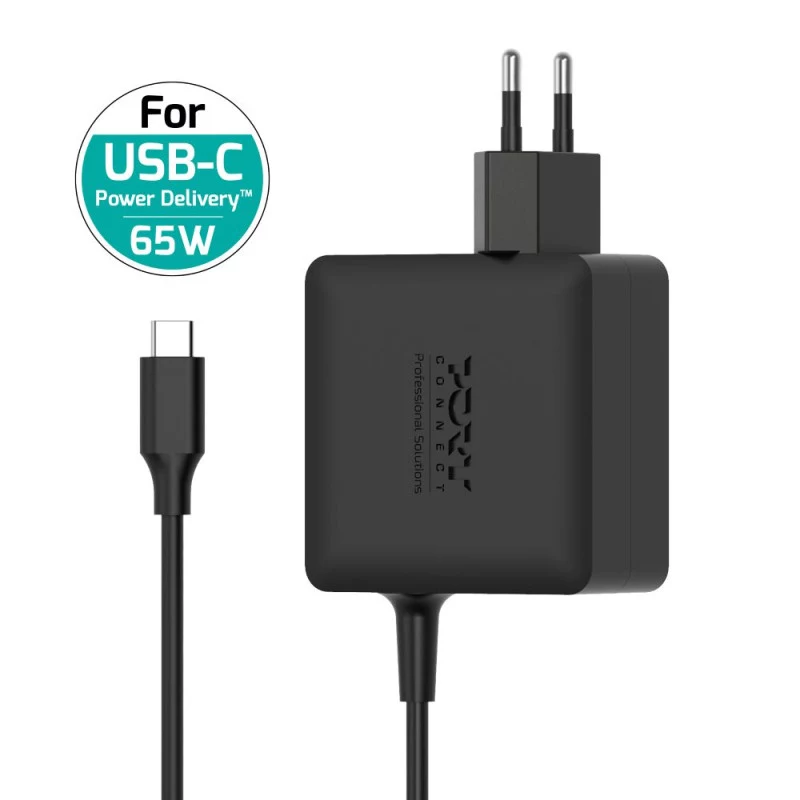

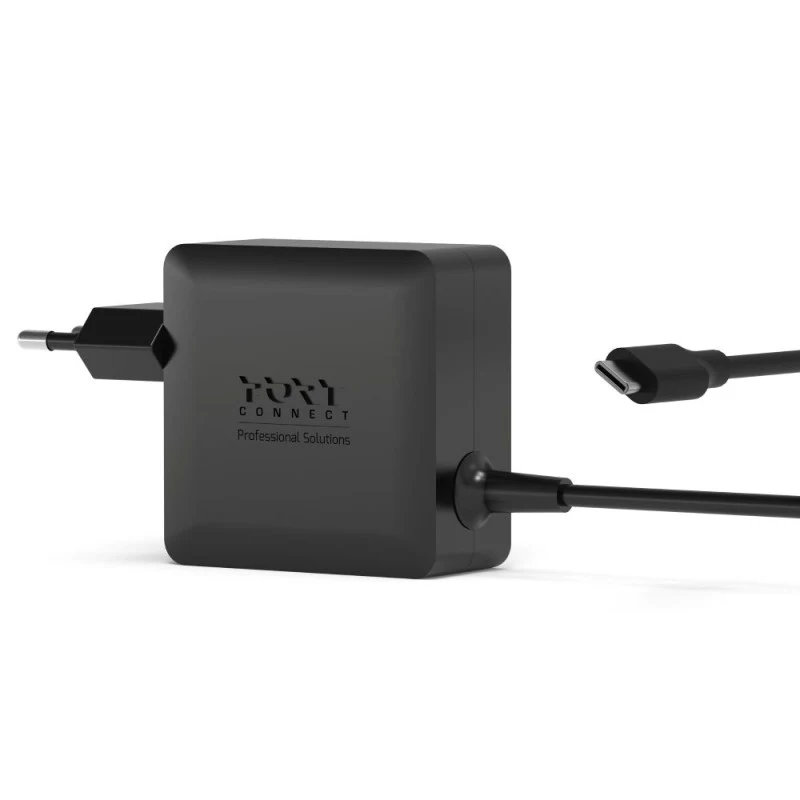

The PORT Designs GaN 65W Power Supply is a compact, high-efficiency wall charger designed for modern USB-C devices. Leveraging Gallium Nitride (GaN) technology, it delivers up to 65W of power in a smaller footprint than traditional chargers, making it ideal for travel and daily use. With a single USB-C port supporting Power Delivery (PD) and Quick Charge (QC), it can fast-charge laptops, smartphones, tablets, and other USB-C gadgets. The EU plug (Type C/F) is suitable for European outlets.

Advantages

GaN technology allows for a more compact and lightweight design without compromising power output. The charger supports multiple PD profiles (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A) for versatile device compatibility. Built-in safety features protect against over-current, over-voltage, short-circuit, and over-temperature conditions, ensuring reliable operation.

Suitable for

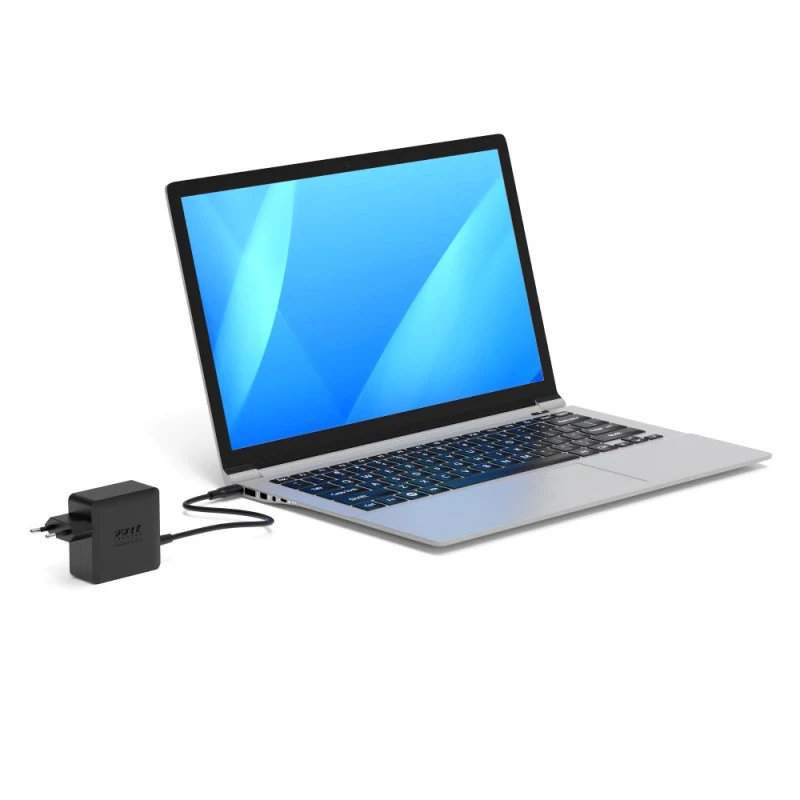

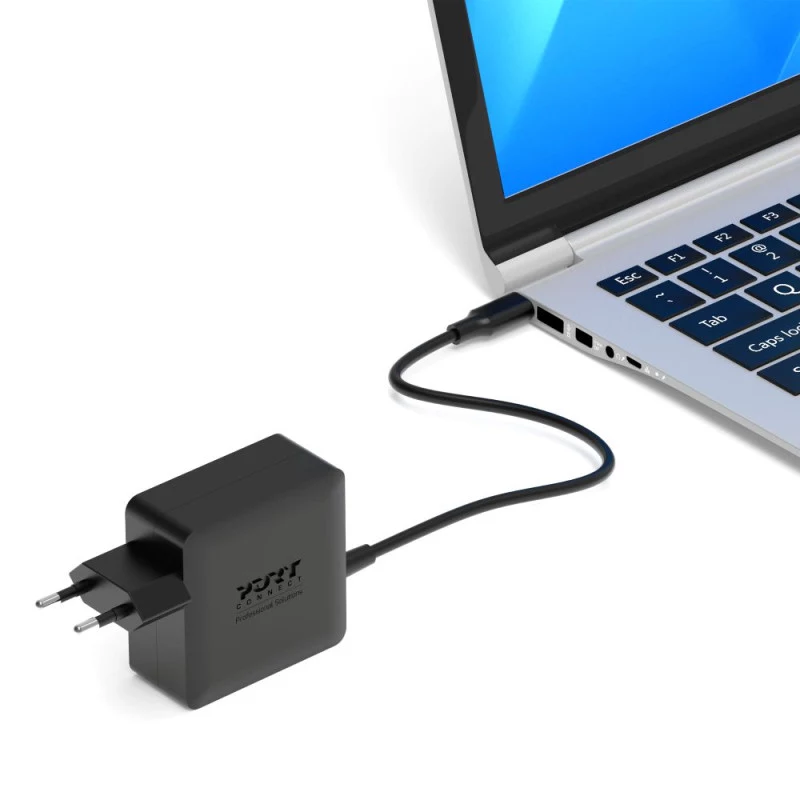

• USB-C laptops (e.g., MacBook, Dell XPS, HP Spectre)
• Smartphones with USB-C fast charging
• Tablets and iPads with USB-C
• Any USB-C device requiring up to 65W

Key specifications

• Charger Type: Wall Charger
• Charging Technology: GaN (Gallium Nitride)
• Max Output Power: 65 W
• Output Ports: 1 x USB-C
• USB-C PD Profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
• Input Voltage: 100-240 V AC
• Input Frequency: 50/60 Hz
• Plug Type: EU (Type C/F)
• Power Delivery (PD) Support: Yes
• Quick Charge (QC) Support: Yes
• Color: Black
• Material: PC (Polycarbonate)
• Safety Features: Over-current, Over-voltage, Short-circuit, Over-temperature protection
• Certifications: CE, RoHS, FCC

Recommendations

For optimal performance, use a certified USB-C cable that supports 65W charging. This charger is an excellent replacement for bulky original power adapters, offering portability without sacrificing speed.
