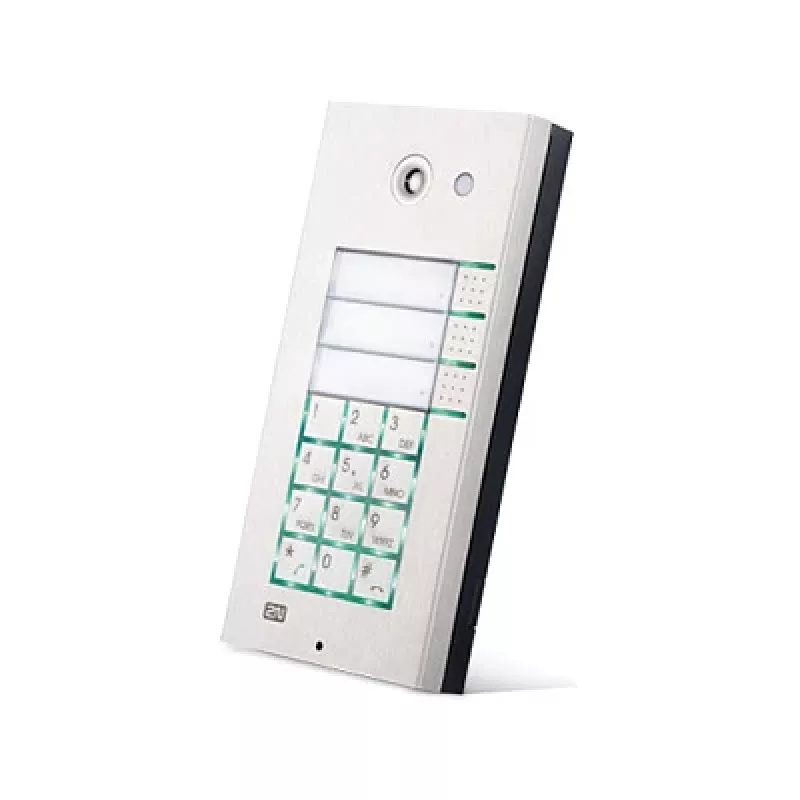

Portero automático 2N Helios IP Vario 9137131CKU

The 2N Helios IP Vario 9137131CKU is an IP door intercom that combines audio and video communication in a single, modular unit. Designed for both residential and commercial entrances, it supports SIP protocol and Power over Ethernet (PoE) for simplified wiring and remote management. The unit is built to withstand outdoor conditions with an IP54 protection rating and includes a wide-angle camera with night vision to maintain clear visibility in low light.

Advantages

The modular design allows customization with optional modules such as displays, card readers, keypads and attendance systems to suit different installation needs. PoE support reduces the need for separate power cables, while SIP compatibility enables integration with existing IP telephony systems. Weather resistance (IP54) and night vision capability ensure reliable operation at entrances exposed to the elements and in variable lighting conditions.

Suitable for

• Residential apartment building entrances
• Office and commercial building access points
• Gated communities and small campus security points
• Remote-managed entry systems requiring video verification

Key specifications

• Communication: SIP-based IP audio and video
• Power: Power over Ethernet (PoE) support
• Protection class: IP54 (splash and dust protection)
• Camera: Wide-angle lens with night vision capability
• Design: Modular and customizable with optional modules (display, card reader, keypad, attendance)

How to use

Install the 2N Helios IP Vario at the chosen entrance and connect it to the IP network using a PoE-enabled switch or injector to provide both data and power over a single cable. Configure SIP account parameters and network settings via the web interface to integrate with your IP telephony or access management system. Add and configure optional modules such as card readers or displays as required, and adjust camera and audio settings for optimal coverage and clarity.

Recommendations

Place the intercom at a height and angle that ensure the camera covers the expected visitor area; test night vision and audio levels after installation. Use PoE-capable network equipment for a simplified setup and configure remote access carefully to maintain secure management. For demanding environments or additional features, select compatible optional modules (display, card reader, keypad) to match the intended use case.
