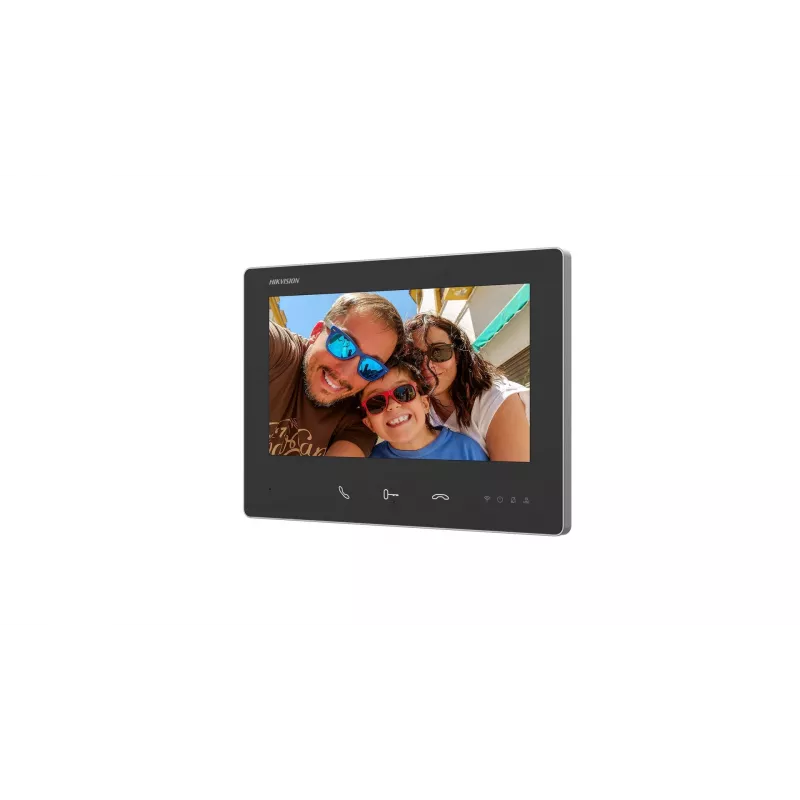

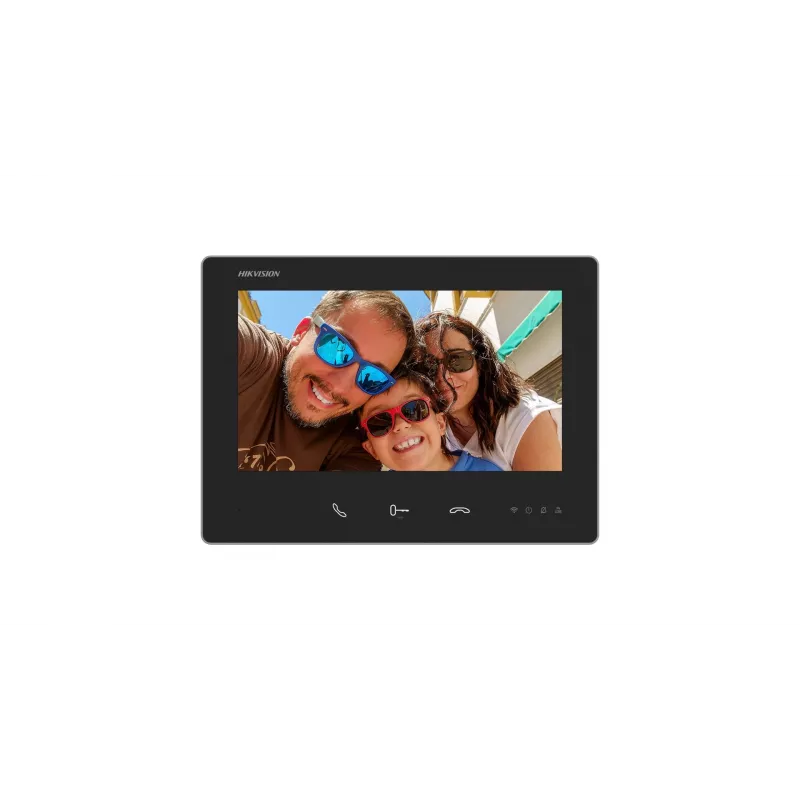

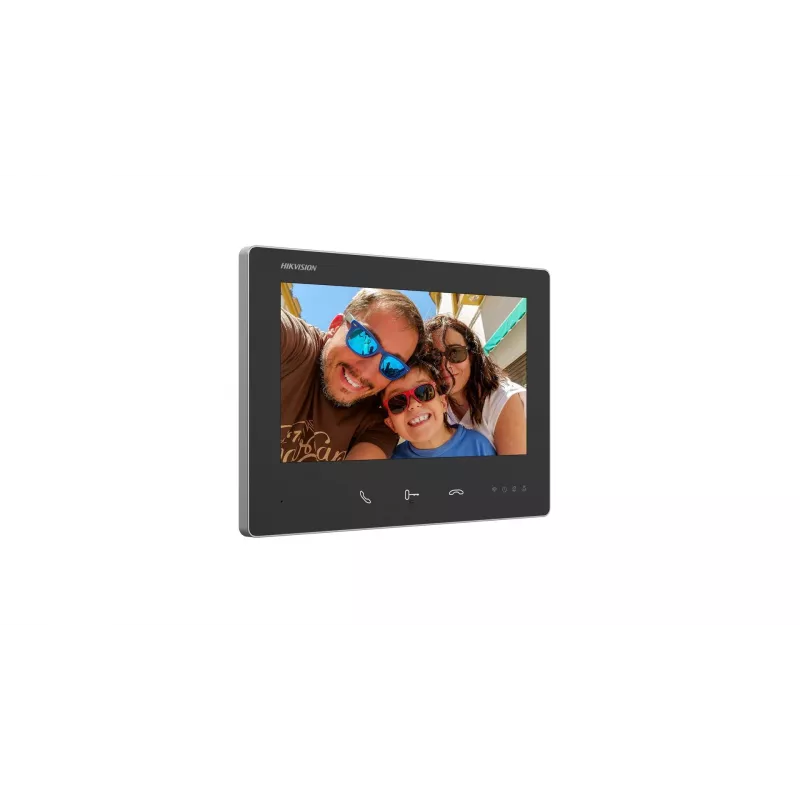

Videoportero Hikvision DS-KH7300EY-WTE2/Blanco

The Hikvision DS-KH7300EY-WTE2/White is a 7" video intercom station with a 1024 × 600 TFT display, omnidirectional microphone and touch control. Designed for apartment retrofit, the 2-wire HD solution reuses existing wiring to provide clear video, two-way audio and remote unlocking without major infrastructure changes. It supports MicroSD cards up to 128 GB and offers 32 MB flash and 128 MB internal memory for local storage and configuration data.

Advantages

This 2-wire video intercom is easy to retrofit: installers can reuse legacy wiring to reduce installation time and cost. The device is plug & play ready — basic settings can be made using DEC knobs on the unit, while advanced configuration is available via mobile web in AP mode. Industry-leading 2-wire transmission and professional video processing deliver high image quality and stable live feeds. The system supports remote interaction from a smartphone, including answering calls, viewing live video and unlocking doors. Device status and connection faults can be checked quickly via mobile web or the floor shunt to simplify maintenance.

Suitable for

• Apartment building intercom retrofit projects
• Multi-dwelling units requiring remote door release and video monitoring
• Properties where reuse of existing 2-wire infrastructure is preferred

Key specifications

• Model: Hikvision DS-KH7300EY-WTE2/White
• Display: 7" TFT, 1024 × 600 pixels
• Audio: Omnidirectional microphone
• Memory: 32 MB flash, 128 MB internal; MicroSD support up to 128 GB
• Interface: Touch control
• Connection: 2-wire HD video intercom transmission
• MPN: 43868, EAN: 6942160447032

How to use

Power the unit and perform basic setup by turning the DEC knobs to assign room or building numbers. For advanced setup, enable AP mode on the device and connect with a mobile phone to access the web interface; there you can activate devices, add user or personnel information and issue access cards. During daily operation, use the touch screen to answer visitors, view live video and unlock doors; the mobile app or web interface also allows remote handling of calls and monitoring.

Recommendations

For retrofit installations, verify the condition of existing 2-wire cabling before installation. Use a compatible MicroSD card (max 128 GB) for local recording and maintain firmware up to date to ensure optimal compatibility and security.
