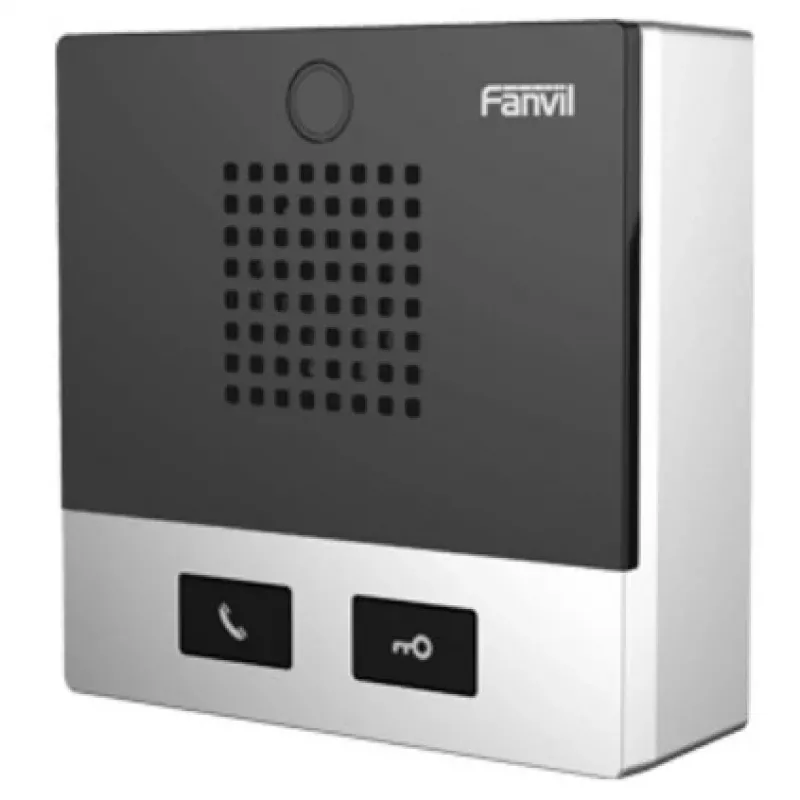

Portero automático de audio Fanvil I10D Negro Acero inoxidable

The Fanvil I10D is a compact wired audio intercom system in black stainless steel finish, part of the Fanvil i10 Series. Designed for integration with access control and broadcasting systems, the I10D offers high-quality HD audio, reliable connectivity and a durable metal housing suitable for indoor and semi-outdoor installations. The unit provides a one-button call interface (two-button model I10D) for visitor communication and supports remote door release when integrated with office access control.

Advantages

The intercom delivers clear HD audio using a built-in 1 W speaker and Opus codec with Acoustic Echo Cancellation, ensuring intelligible two-way communication. The i10V video variant adds a 1 MP camera with 720p resolution for high-definition video calls. The series supports remote unlocking through its output interface, simplifying access control workflows. Rated IP54 and specified for operation from -20°C to 50°C, the device is resistant to dust and splash water and suitable for varied indoor environments. Centralized configuration and batch deployment are supported via Fanvil Device Management System for efficient setup and management.

Suitable for

• Entry panels at residential buildings and gated communities
• Office reception and controlled access points
• Small commercial premises requiring visitor communication
• Integration with existing VoIP phone systems and access control

Key specifications

• Model: Fanvil I10D (audio intercom, two-button)
• Audio: HD audio, 1 W built-in speaker, Opus codec, AEC
• Video (i10V only): 1 MP camera, 720p resolution
• Ingress protection: IP54
• Operating temperature: -20°C to 50°C
• Integration: Output interface for access control and door release
• Management: Fanvil Device Management System for batch deployment

How to use

Install the I10D at the designated entrance location and connect it to your network and power source according to the installation manual. If integrating with access control, wire the output interface to the door strike or controller. Configure SIP account and device settings through the web interface or Fanvil Device Management System, then test audio calls and remote unlock functionality. For video calls use the i10V model and verify camera view and call quality at the required resolution.

Recommendations

Place the unit in a sheltered position away from direct rain for longest service life despite IP54 rating; ensure correct network VLAN and QoS settings for reliable VoIP performance and schedule firmware and configuration backups when managing multiple devices.
