PowerWalker Inverter 5000 PWM SAI Line-Interactive 5 kVA 5000 W

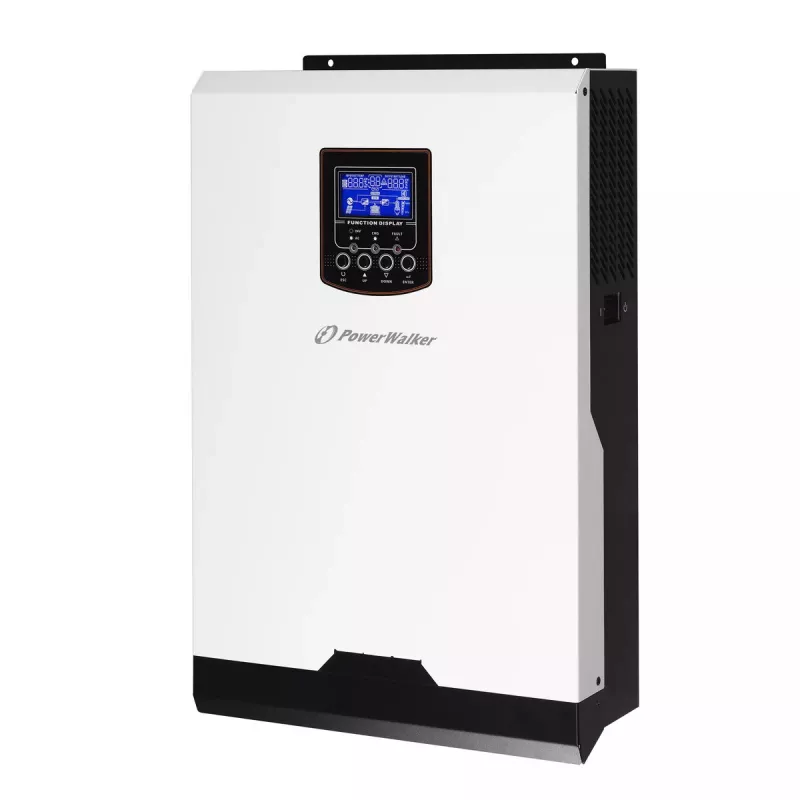

The PowerWalker Inverter 5000 PWM is a line-interactive UPS in a tower form factor combining inverter, solar charger and battery charger functions. With 5 kVA (5000 W) output capacity and a comprehensive LCD display, it provides uninterrupted power support for sensitive electronic equipment while allowing user configuration of charging current, input voltage acceptance and AC/solar charger priority.

Advantages

This inverter/UPS integrates inverter and multi-mode charging in a compact tower design and features an easy-to-read LCD for monitoring and parameter adjustment. It supports selectable AC or solar charger priority and configurable battery charging current, enabling adaptation to different installation requirements. The 5 kVA/5000 W output rating suits a variety of high‑load applications while available in black or white finishes.

Suitable for

• Protecting servers, network equipment and workstations from power interruptions
• Backup power for small data centers and telecom racks
• Standalone or hybrid systems using AC mains and solar input
• Environments requiring configurable charging and input-voltage settings

Key specifications

• Output power: 5000 W
• Output capacity: 5 kVA
• Form factor: tower

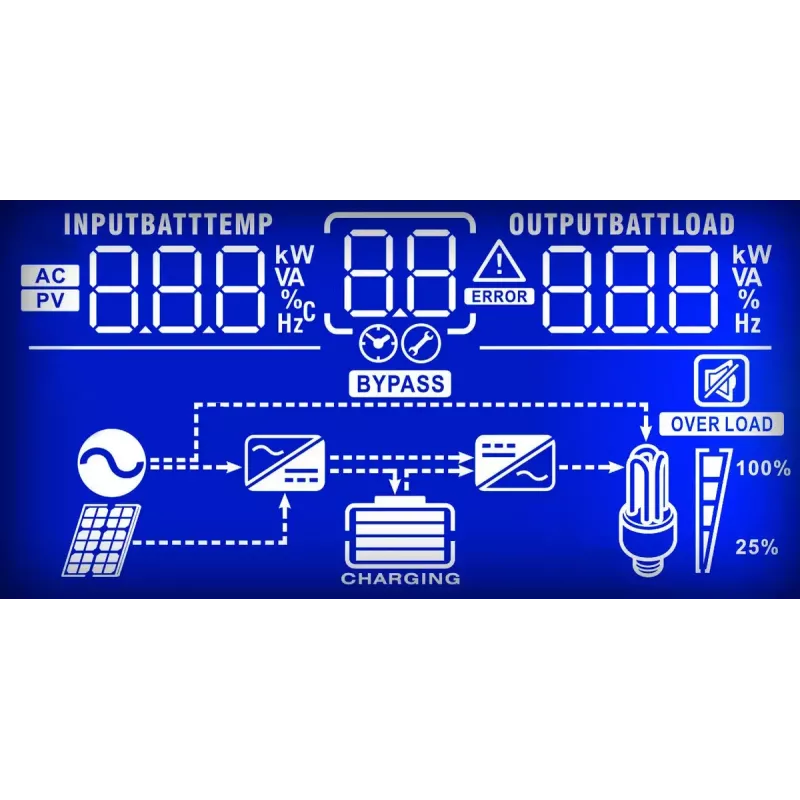

• Display: LCD with user-configurable settings
• Functions: inverter, solar charger, battery charger
• Colours: Black, White
• Weight: 8.5 kg
• Brand: PowerWalker, MPN: 10120225, EAN: 4260074983005

How to use

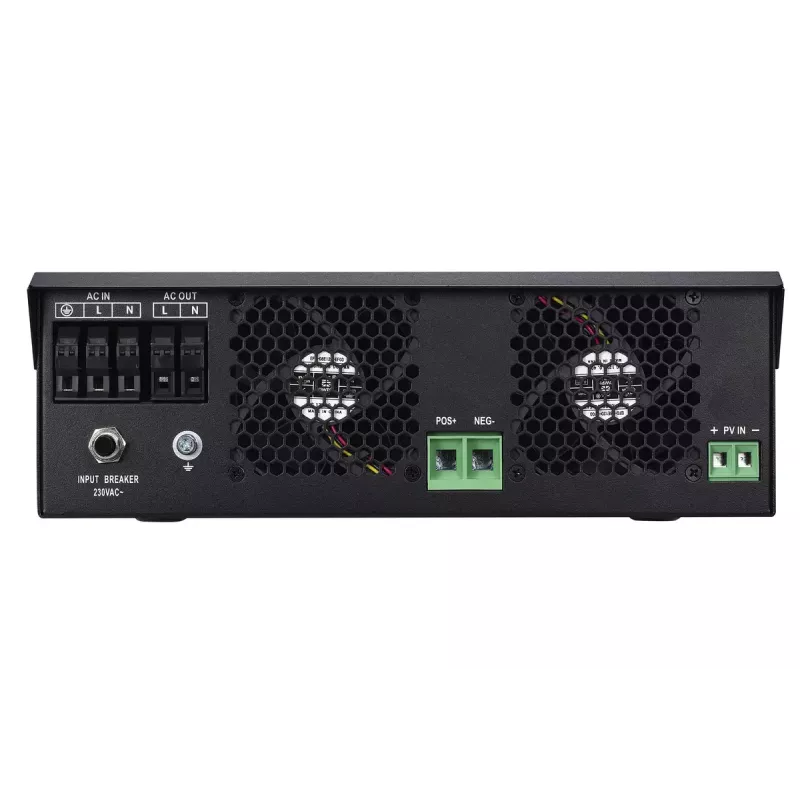

Install the unit in a well-ventilated, dust-free location on a stable surface. Connect the battery bank according to the manufacturer instructions, then connect AC mains and any solar input as required. Use the LCD and front-panel buttons to set battery charging current, choose AC or solar charger priority and adjust acceptable input voltage thresholds to match the application. Verify output connections and perform a controlled switchover test to confirm correct operation.

Recommendations

For reliable operation, use batteries of the recommended type and capacity, maintain adequate ventilation and avoid placing the unit near heat sources. Regularly inspect connections and firmware/settings after installation and before putting the UPS into continuous service. When integrating solar input, ensure solar charger parameters match the PV array and battery specifications.
