PRESSOL boquillas de engrase de cabeza plana M1-KØ 16, M10 x 1, acero galvanizado, pack de 25 (16 813)

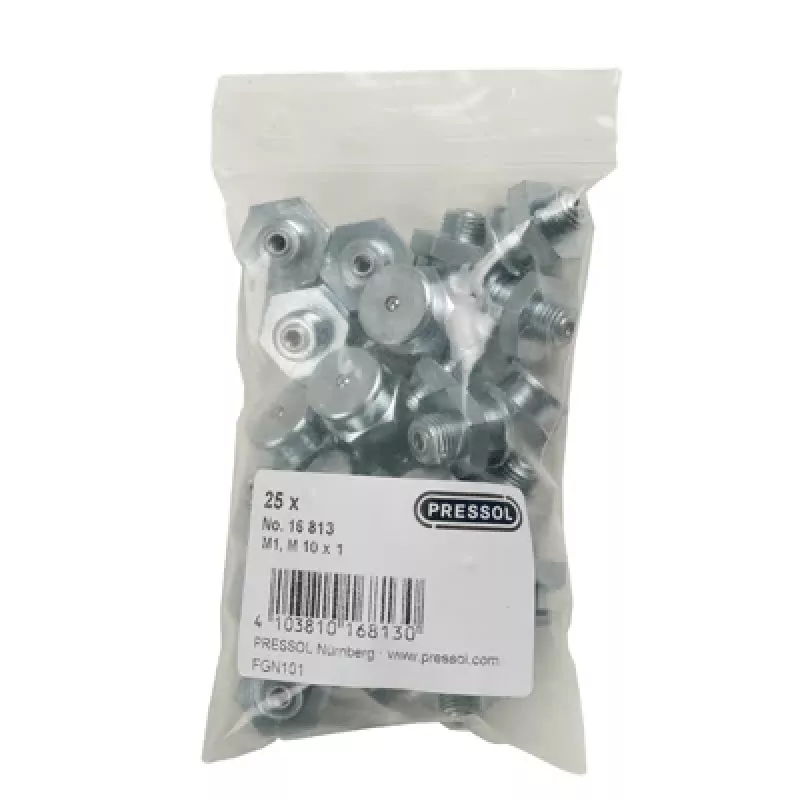

This pack of 25 flat-head grease nipples from PRESSOL (model 16 813) offers a practical solution for lubrication points that require a low-profile fitting. The M10 x 1 metric fine thread and 16 mm head diameter make these nipples suitable for standard grease guns and couplers, while the galvanized steel construction provides corrosion resistance for use in industrial, agricultural, and automotive applications.

Highlights

• Flat head design for recessed or flush mounting
• Metric fine thread M10 x 1 for secure installation
• Galvanized steel for corrosion protection
• Conforms to DIN 71412 (Type M1)
• Pack of 25 pieces for convenient stocking

In daily use

Each nipple has an overall length of approximately 12.5 mm and a wrench size of SW17 for tightening. The maximum operating pressure of 400 bar (5800 psi) allows use in high-pressure lubrication systems. The flat head profile is ideal where a standard nipple would protrude and risk damage.

Full specifications

• Product type: Flat-head grease nipple
• Thread type: Metric fine thread
• Thread size: M10 x 1
• Head diameter: 16 mm
• Standard conformity: DIN 71412 (Type M1)
• Material: Steel
• Surface finish: Galvanized (zinc-plated)
• Quantity per pack: 25 pieces
• Overall length (individual): 12.5 mm
• Wrench size: SW17
• Maximum operating pressure: 400 bar (5800 psi)
• Corrosion protection: Yes, due to galvanization
• Application area: Industrial machinery, agricultural equipment, automotive, general lubrication
• Installation method: Screw-in
• Head profile: Flat
• Compatibility: Suitable for standard grease guns and couplers
• Weight (per piece): 12 g

Final note

With a pack of 25, you'll have a ready supply of reliable grease nipples for maintenance tasks across a range of equipment.
