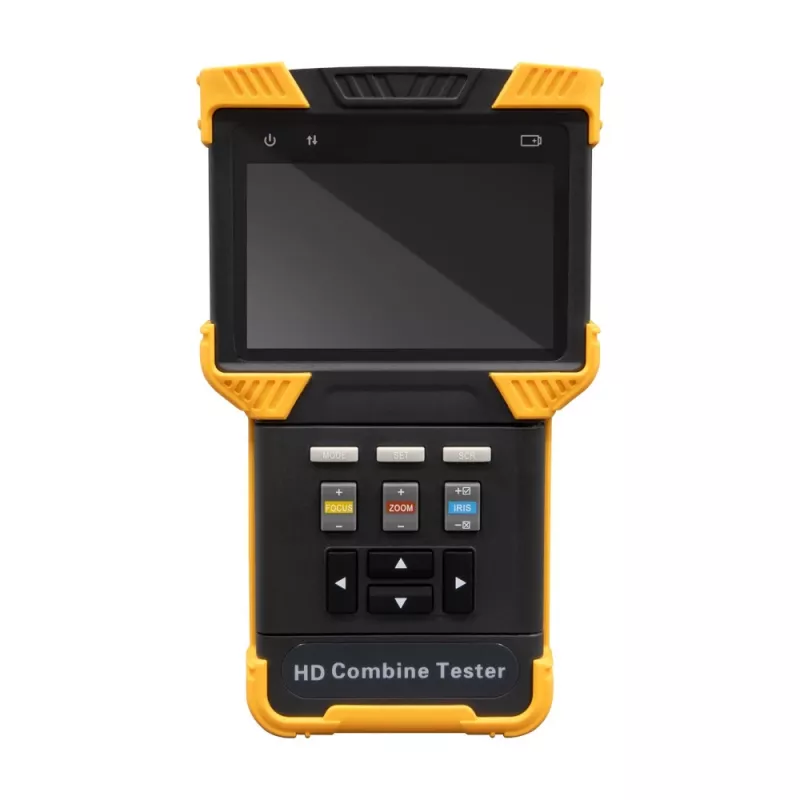

Probador CCTV BCS-T4LCD-LITE con pantalla táctil IPS de 4" y soporte para HD analógico 8MP, IP y PoE

Armed with a 4-inch IPS LCD touchscreen and support for up to 8MP analogue HD signals, the BCS-T4LCD-LITE is a versatile field tool for installers and technicians. It handles IP, AHD, TVI, CVI and CVBS cameras, plus PoE output up to 25.5W, making it a complete solution for on-site CCTV setup and maintenance.

Overview

The BCS-T4LCD-LITE combines a high-resolution 800x480 IPS touchscreen with multi-format video testing. It supports IP cameras via ONVIF and RTSP, and analogue HD formats up to 8MP. A built-in Wi-Fi module, microSD recording, and a 2600mAh battery provide up to 8 hours of cordless operation. The tester also includes network tools such as ping, IP scan, and TDR cable test, plus PTZ control via RS485.

What stands out

• 4-inch IPS LCD touchscreen with 800x480 resolution for clear image inspection
• Supports IP, AHD, TVI, CVI, and CVBS cameras up to 8MP
• PoE output (802.3af/at) up to 25.5W to power IP cameras directly
• Built-in Wi-Fi and microSD slot for firmware updates and snapshot recording
• Network tools: ping, IP scan, port flash, DHCP client, and TDR cable test
• PTZ control via RS485 (Pelco-D/P and other protocols)
• Long-lasting 2600mAh battery for up to 8 hours of operation

Technical details

• Display: 4-inch IPS LCD touchscreen, 800x480 pixels
• Video formats: IP, AHD, TVI, CVI, CVBS (analogue)
• Analogue HD resolution: up to 8MP
• IP protocols: ONVIF, RTSP, and various brand-specific protocols
• IP input: 1x RJ45 (10/100Mbps)
• CVBS input: 1x BNC
• PoE output: 48V, 802.3af/at, max 25.5W
• DC power output: 12V/3A
• USB power output: 5V/2A
• Network tools: ping, IP scan, port flash, DHCP client, TDR cable test
• PTZ control: RS485, supports Pelco-D/P and other protocols
• Audio input: 1x 3.5mm jack
• Battery: built-in lithium-ion, 3.7V 2600mAh
• Operating time: approx. 8 hours
• Storage: microSD card slot
• Connectivity: built-in Wi-Fi
• Additional: built-in LED flashlight, multi-language OSD

Our verdict

The BCS-T4LCD-LITE is a compact yet powerful tester that covers all common CCTV formats, making it an essential tool for any installer's toolkit.
