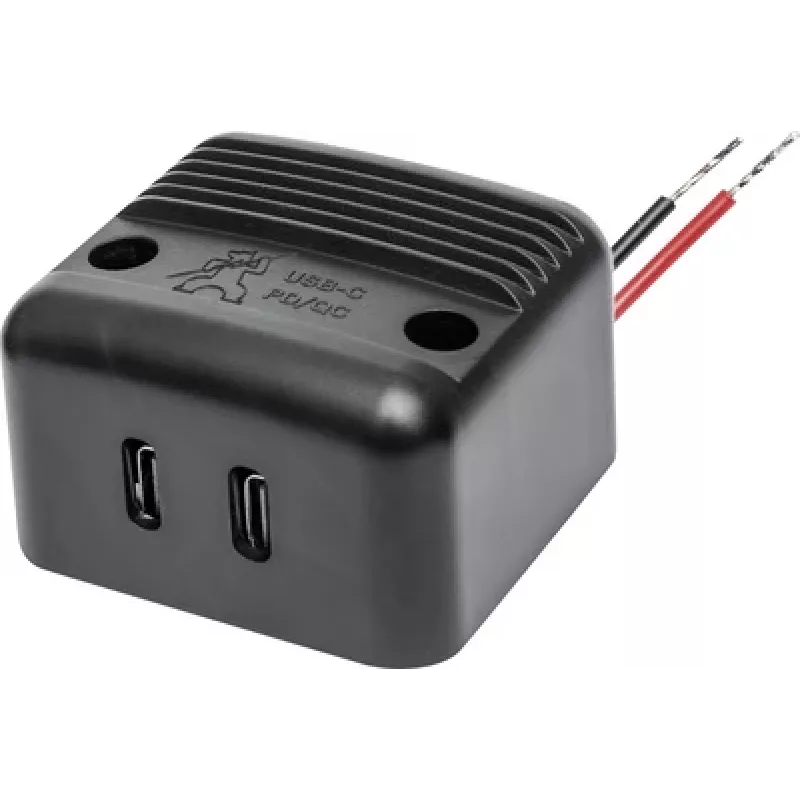

ProCar Toma de superficie USB-C Power doble PD/QC 2x 30W 12V/24V (67379000)

Modern vehicles often lack enough high-power USB-C ports to charge power-hungry devices like tablets, smartphones, or even laptops. The ProCar Aufbau-Power USB-C Dual Socket solves this by providing two USB-C ports with up to 30W each, supporting both Power Delivery and Quick Charge protocols, directly from your vehicle's 12V or 24V electrical system.

Who is it for

This socket is ideal for automotive, marine, RV, and caravan users who need reliable fast charging on the go. It is suitable for professional installations in dashboards, panels, or custom builds.

Main features

• Two USB-C ports, each delivering up to 30W (total 60W max)
• Supports USB Power Delivery (PD) and Quick Charge (QC) fast charging
• Wide input voltage range: 12V to 24V DC, compatible with cars and trucks
• Surface mount design with 6.3 mm flat plug terminals for easy wiring
• Built-in protection against overload, short-circuit, and overheating
• Low standby current (< 1 mA) and high efficiency (> 85%)
• Durable plastic housing in black

Specifications

• Input voltage: 12V - 24V DC
• Output ports: 2x USB-C
• Max output power per port: 30W
• Total max output power: 60W
• USB-C PD output profiles: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
• Mounting type: Surface mount
• Connection type: 6.3 mm flat plug terminals
• Protection: Overload, short-circuit, overheating
• Housing material: Plastic
• Colour: Black
• Standby current: < 1 mA
• Efficiency: > 85%

Tips

For optimal performance, ensure proper ventilation around the socket and use high-quality USB-C cables that support PD or QC to take full advantage of fast charging.
