PRODIG-TECH GL-PRO-2-F Medidor de espesor de pintura 0-2000 µm

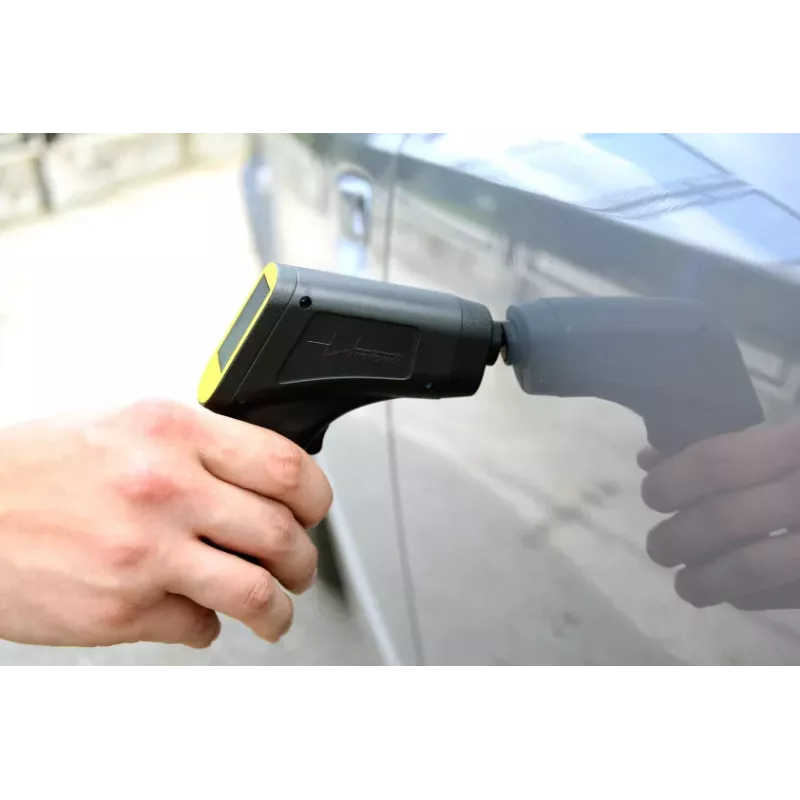

The PRODIG-TECH GL-PRO-2-F Paint Thickness Gauge is a professional-grade instrument designed for precise measurement of paint and coating thickness on ferrous and non-ferrous substrates. With a measurement range of 0 to 2000 µm and high accuracy, it is ideal for automotive body shops, paint inspection, and quality control. The integrated spring-loaded ruby probe ensures reliable readings, while the backlit LCD display and intuitive controls make operation simple. Additional features include automatic substrate detection, putty detection signaling, and a UV light for VIN/document verification.

Advantages

High accuracy of ±(2% + 2 µm) ensures reliable measurements. Automatic substrate detection simplifies operation by selecting the correct measurement mode for steel, galvanized steel, or aluminum. The built-in UV light aids in verifying VIN numbers and documents, adding value for automotive professionals. The gauge stores up to 200 measurements and offers both automatic and manual calibration options.

Suitable for

• Automotive paint inspection and quality control
• Body shops and detailing centers
• Industrial coating thickness measurement
• VIN and document verification using UV light

Key specifications

• Measurement Range: 0 to 2000 µm
• Resolution: 1 µm (0-500 µm), 10 µm (500-2000 µm)
• Accuracy: ±(2% + 2 µm)
• Compatible Substrates: Steel, Galvanized Steel, Aluminum
• Probe: Integrated, spring-loaded with ruby tip
• Display: Backlit LCD
• Power: 2x AA batteries (1.5V)
• Operating Temperature: -20°C to 40°C
• Memory: 200 measurements
• Automatic Substrate Detection: Yes
• Putty Detection: Sound and LED signaling
• Calibration: Automatic (zeroing) and manual (calibration plates)
• Measurement Units: µm and mils
• Special Feature: Integrated UV light
• Measurement Speed: Up to 3 measurements per second
• Number of Measurement Points: 16
• Automatic Shutdown: Yes

Recommendations

For best results, calibrate the gauge before each use using the provided calibration plates. Ensure the surface is clean and dry for accurate readings. The gauge is suitable for both professional and DIY use.
