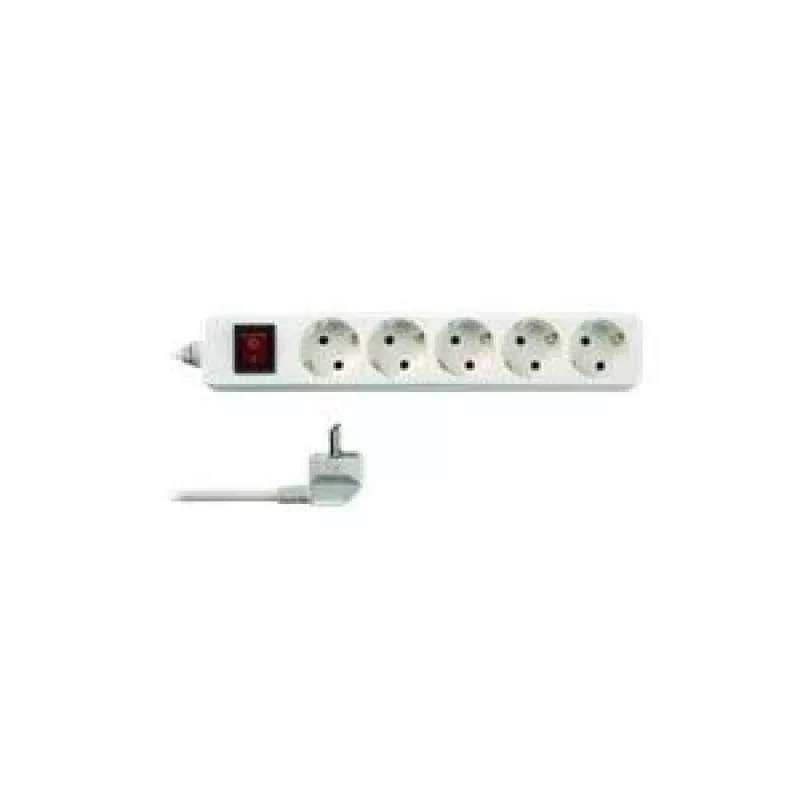

Protección contra sobretensiones REV 001252301

The REV 001252301 surge protector offers five Type H AC outlets, a nominal input voltage of 250 V and is intended for indoor use. It comes in a white housing, includes child protection on each outlet and uses H05VV-F 3G1.5 mm² cable. The unit is rated 16 A, 250 V~ with a maximum load of 3500 W and features a two-pole illuminated control switch for easy operation.

Advantages

The design provides five grounded Type H sockets with built-in child protection to reduce accidental contact. The illuminated two-pole switch allows quick on/off control and visual status indication. Durable H05VV-F 3G1.5 mm² cable supports the rated current and the compact white housing suits home and office environments.

Suitable for

• Connecting multiple household appliances in living rooms or home offices
• Powering office equipment such as monitors, printers and routers
• Indoor use where Type H sockets are required

Key specifications

• AC outlets: 5 AC outlet(s), Type H
• Nominal input voltage: 250 V~
• Rated current and power: 16 A, 3500 W
• Cable type: H05VV-F 3G1.5 mm²
• Switch: 2-pole illuminated control switch
• Protection: with child protection
• Intended use: indoor
• Colour: White

How to use

Place the surge protector on a stable, dry surface indoors and plug the H05VV-F cable into a compatible Type H wall outlet. Connect devices to the five Type H sockets ensuring the total load does not exceed 16 A / 3500 W. Use the illuminated two-pole switch to turn the unit on or off. Observe the switch indicator to verify power status before leaving connected equipment unattended.

Recommendations

Do not exceed the rated current or power (16 A / 3500 W). Keep the unit away from moisture and heat sources. Regularly inspect the cable and housing for damage and replace the device if any fault is found. Use only indoors and ensure child protection shutters are not obstructed.
