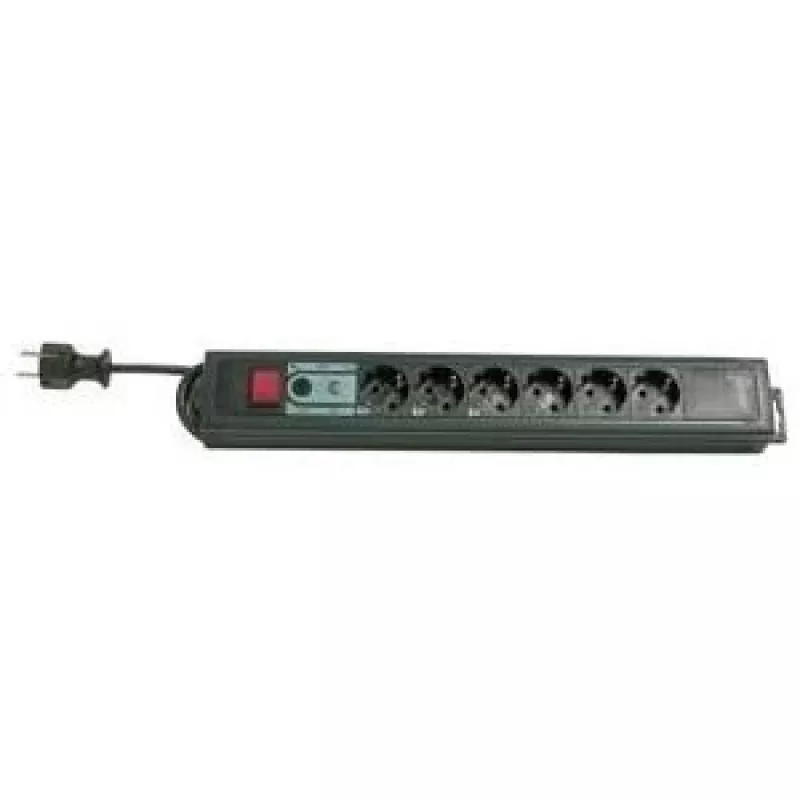

Regleta de enchufes REV 6 tomas 3,0m

The REV 6-fold power socket line provides six sockets with a nominal input voltage of 250 V and rated current of 16 A, supporting up to 3500 W. It includes a 3 m H05VV-F 3G1.5 cable and compact dimensions (460 x 67 x 43 mm). The unit combines a robust, break-proof plastic body, partially double-walled stable channel profile and sockets moulded in one piece, with concealed rear fixing holes and removable suspension clips for flexible installation. Cable can be routed to either end and stored inside the casing. The product is part of the Supraline system and is supplied with Supraguard insurance.

Advantages

The power strip features diagonally placed sockets that accommodate angle plugs, screw-type reconnectable contacts and massive current contacts designed for high load. Integrated cable bend protection and an ergonomic safety plug reduce mechanical stress. High insulation resistance to earth (>10 Ohm) and a design resistant to leakage even after repeated surge events improve operational safety. Additional technical and safety features include a utility patent, hidden fixing points, and a screwed version that allows reconnection.

Suitable for

• Home and office power distribution for multiple devices
• Equipment requiring angled plugs or high current draw
• Installations needing concealed mounting or removable suspension

Key specifications

• Brand: REV, MPN: 00176571, EAN: 4006341647665
• Nominal voltage: 250 V~
• Rated current: 16 A
• Maximum power: 3500 W
• Cable: 3 m H05VV-F 3G1.5
• Dimensions (W x H x D): 460 x 67 x 43 mm
• Surge protection: high-performance SPD for all sockets, class EN 61643 Type 3 / III
• Surge configuration: 3 circuits in Y-configuration, direct current triggering approx. 600 V
• Total leakage current rating: 30,000 A

How to use

Place or mount the REV power strip where convenient, using the concealed fixing holes or removable suspension clips if wall or under-desk installation is required. Route the integrated 3 m cable to the nearest mains outlet; cable exit is possible from either end to suit your layout. Connect appliances to the six diagonally positioned sockets, ensuring total load does not exceed 3500 W and individual device ratings comply with 16 A / 250 V. Use the two-pole function control switch and power supply indicator to turn the strip on or off and to check basic operational status of the surge protection via the optical indicator.

Recommendations

Do not exceed the specified ratings (16 A, 250 V, 3500 W). For continued surge protection performance, monitor the optical operation indicator and service the unit according to local electrical safety guidelines; replace the unit if surge protection indication shows failure. Ensure installation by a competent person when hard mounting or reconnection of internal wiring is required.
