Proyector Acer X1328WHn DLP WXGA 5000 lúmenes ANSI, 16:10, lámpara, RS-232

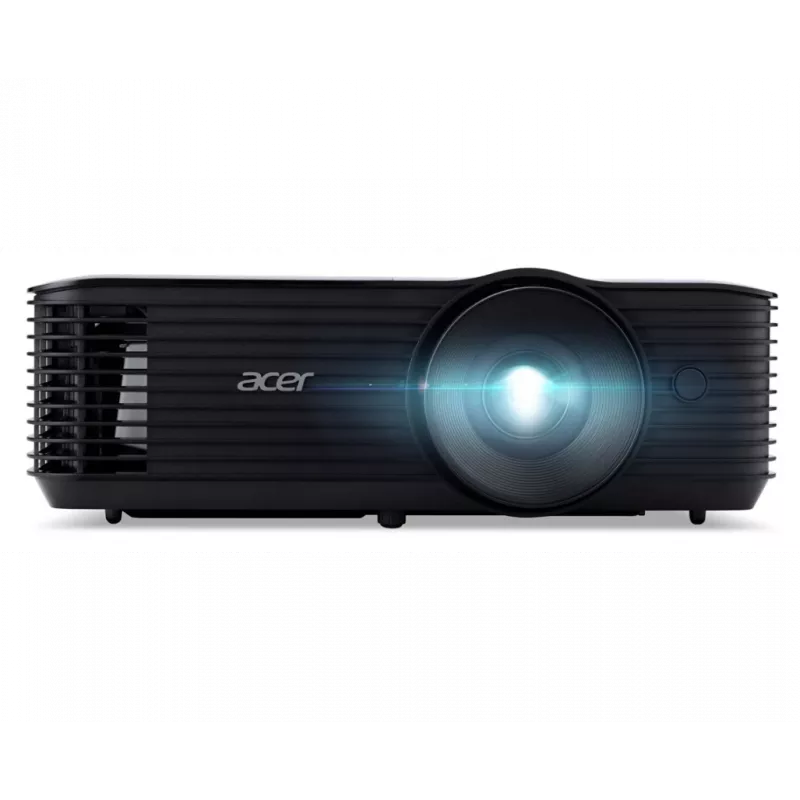

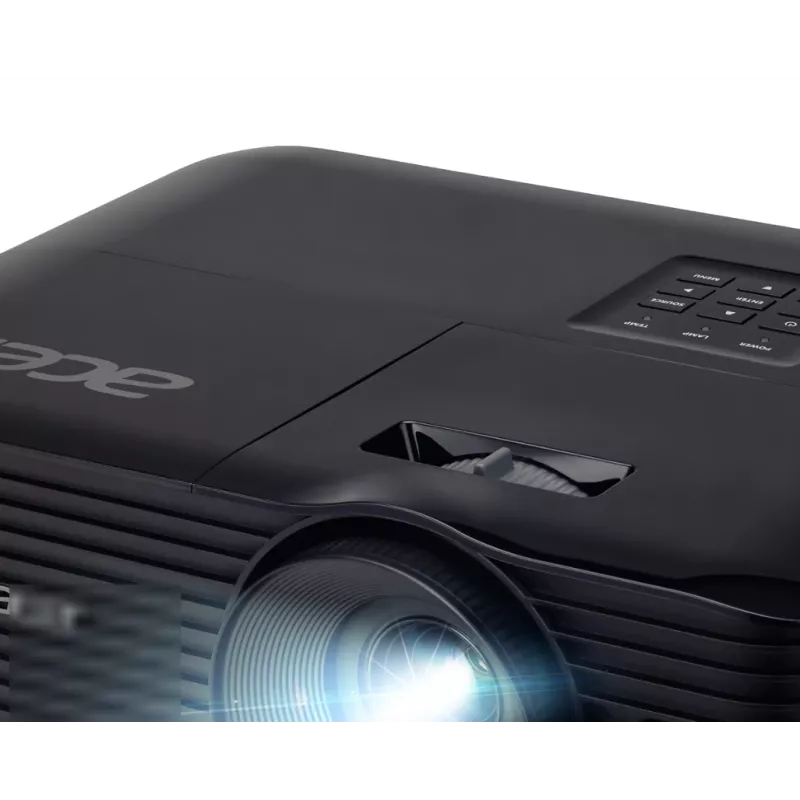

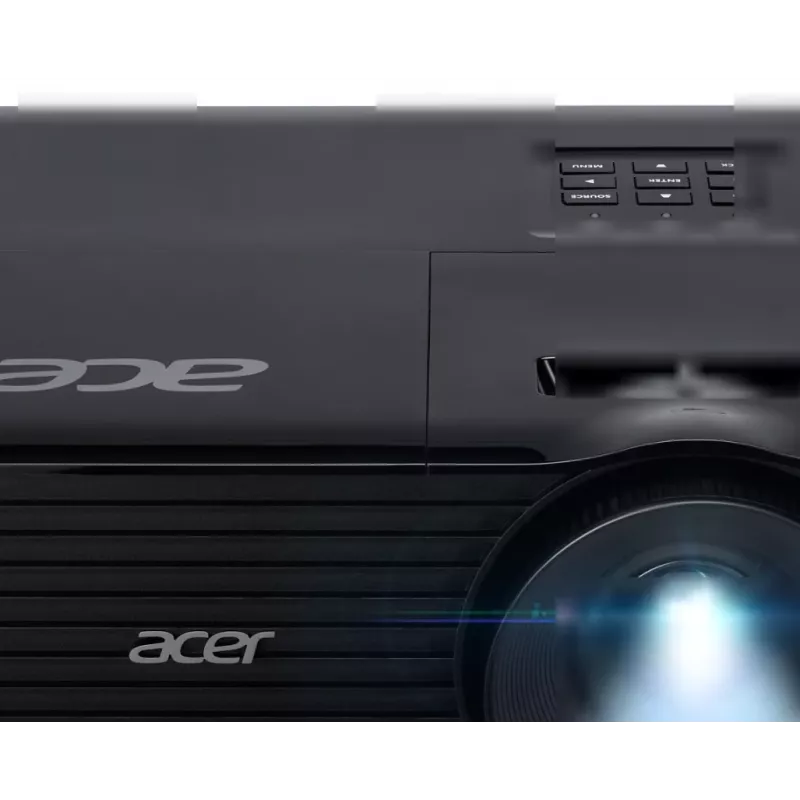

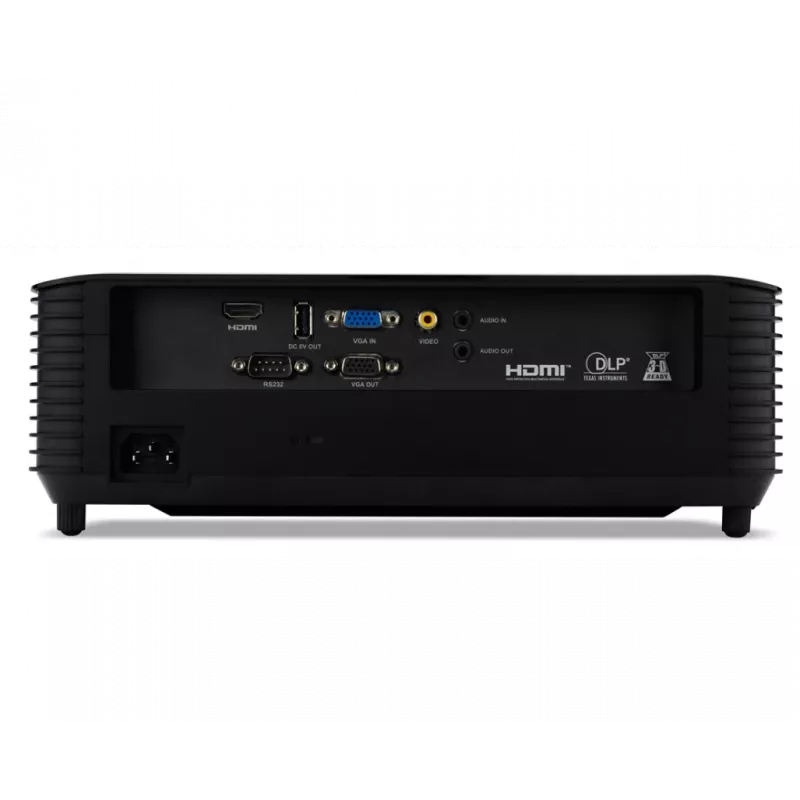

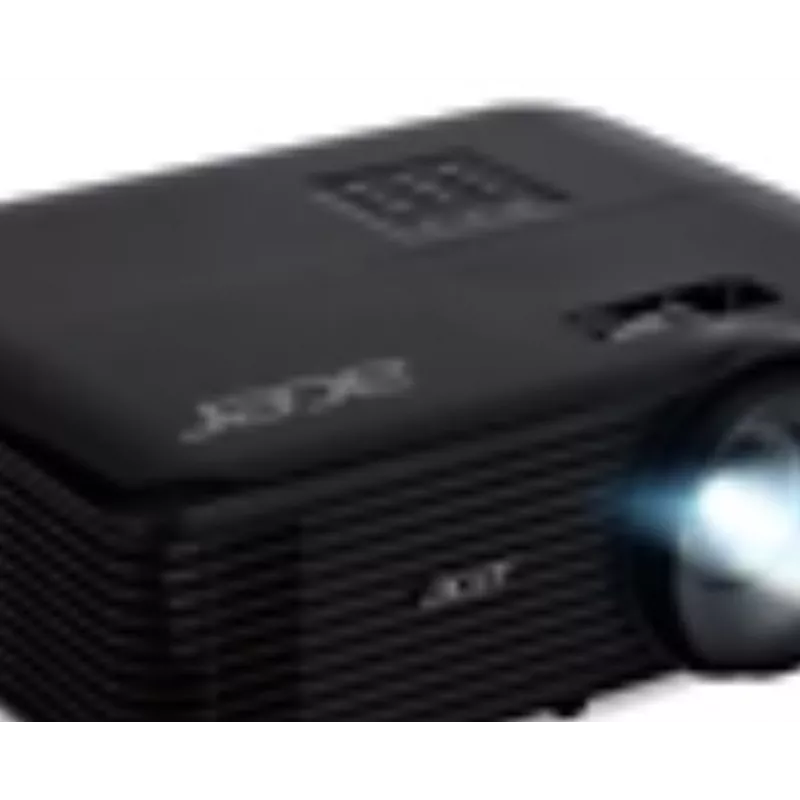

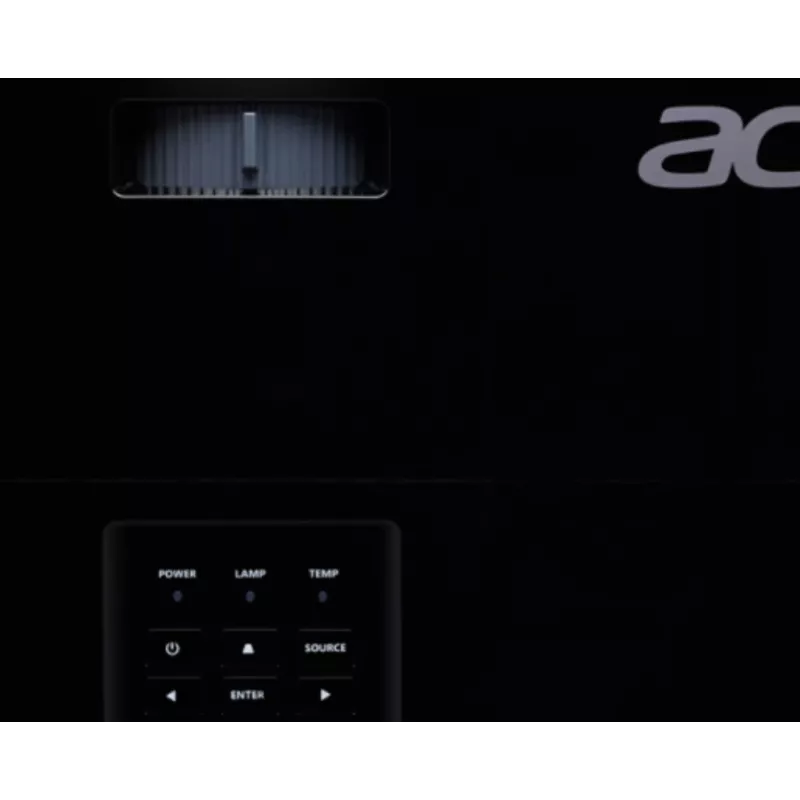

The Acer X1328WHn is a DLP lamp projector with a native WXGA (1280×800) 16:10 resolution and 5000 ANSI lumens brightness. It supports input signals up to 1920×1200, offers a contrast ratio of 20000:1 and compatibility with screen sizes from 27 to 300 inches. The unit is finished in black and includes basic connectivity and RS-232 control for integration into meeting-room setups.

Advantages

This projector delivers high brightness suitable for well-lit rooms and presentations, combined with WXGA resolution that preserves widescreen 16:10 content. Its DLP imaging provides good color rendering with support for over a billion colours, while a single replaceable lamp and manual focus/zoom keep operation straightforward and maintenance predictable.

Suitable for

• Classrooms and lecture halls
• Small to medium meeting rooms
• Business presentations and training sessions
• Events where high brightness is required

When it may not be suitable

This lamp-based projector requires lamp replacement over time and may not offer the lower operating noise or longer light-source life of laser or LED projectors. If you need native Full HD or higher resolution for detailed graphics or very large venues, this WXGA model could be limiting.

Key specifications

• Projection technology: DLP
• Brightness: 5000 ANSI lumens
• Native resolution: WXGA (1280×800), aspect ratio 16:10
• Contrast ratio: 20000:1
• Screen size compatibility: 27–300 inches (approximately 685.8–7620 mm)
• Optics: manual focus and manual zoom, focal length approx. 21.85–24 mm
• Colour support: ~1.07 billion colours
• Built-in audio: 3 W speaker
• Power consumption (lamp): 275 W
• Weight: 2.8 kg

How to use

Place the projector on a stable surface or mount it according to the room layout, connect a video source using the available input ports and power it on. Adjust manual focus and zoom to achieve a sharp image at the chosen screen size and use RS-232 control if integrating with room automation. For best results, calibrate image position and keystone correction where available and allow the lamp to warm up to reach stable brightness.

What to consider before purchase

• Need for replacement lamps and associated maintenance costs
• Required native resolution for your content (WXGA vs Full HD/4K)
• Room ambient light levels and required brightness
• Installation method (portable on table vs ceiling mount) and available space

Recommendations

Use the Acer X1328WHn in environments with moderate to high ambient light where 5000 ANSI lumens ensures clear visibility; schedule regular lamp checks and keep ventilation clear to maintain performance.
