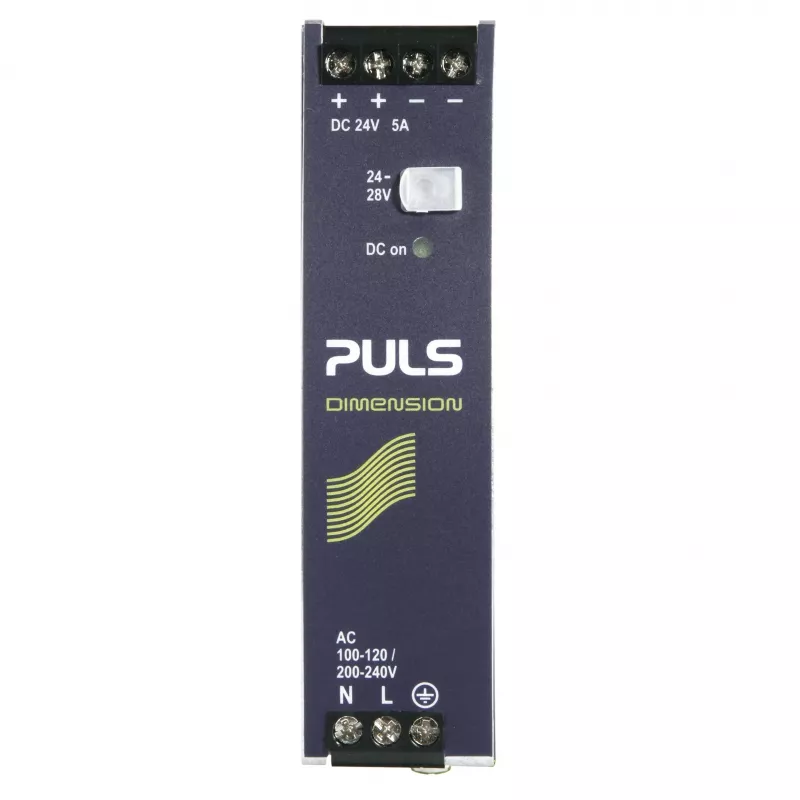

PULS CS5.241-C1 fuente de alimentación para carril DIN 24V 5A 120W 1 salida

Industrial control systems require a reliable DC power source that fits directly onto a DIN rail and delivers stable 24 V output under varying loads. The PULS CS5.241-C1 power supply unit addresses this need with a compact, convection-cooled design that provides 120 W of power from a single output.

Who is it for

This unit is intended for engineers and technicians building or maintaining automation panels, machine controls, and other DIN-rail-mounted equipment that demands a dependable 24 VDC supply with a 5 A current capacity.

Main features

• Output: 24 VDC, 5 A, 120 W, single output
• Wide input range: 85–264 VAC or 120–370 VDC
• High efficiency of 90% reduces heat and energy consumption
• Free air convection cooling – no fan, silent operation
• Comprehensive protection: short circuit, overload, over voltage, over temperature
• Adjustable output voltage from 21.6 to 29 VDC
• LED power indicator for quick status check
• Plastic housing, lightweight and durable

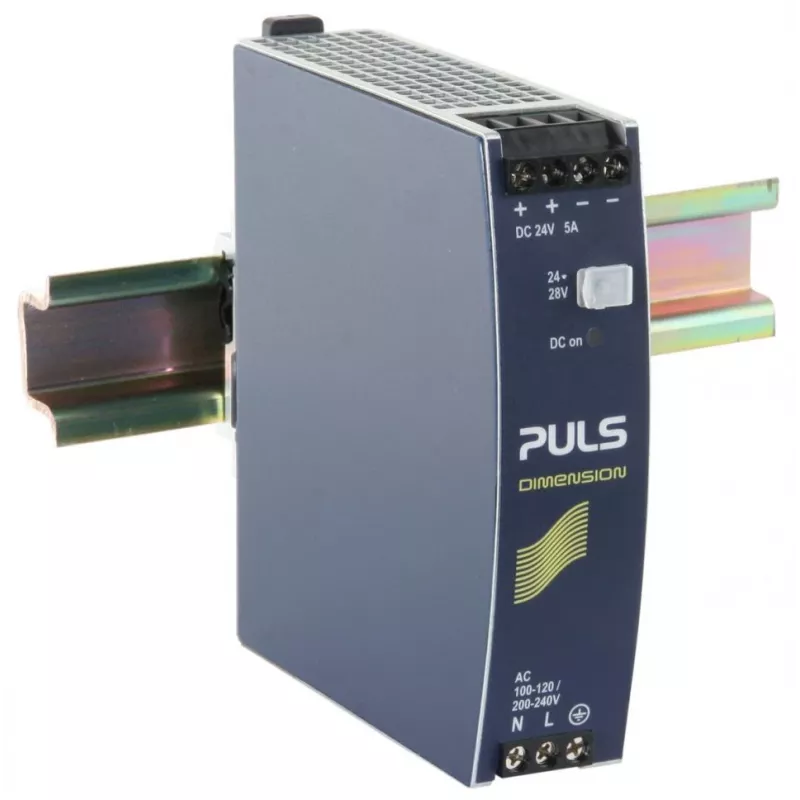

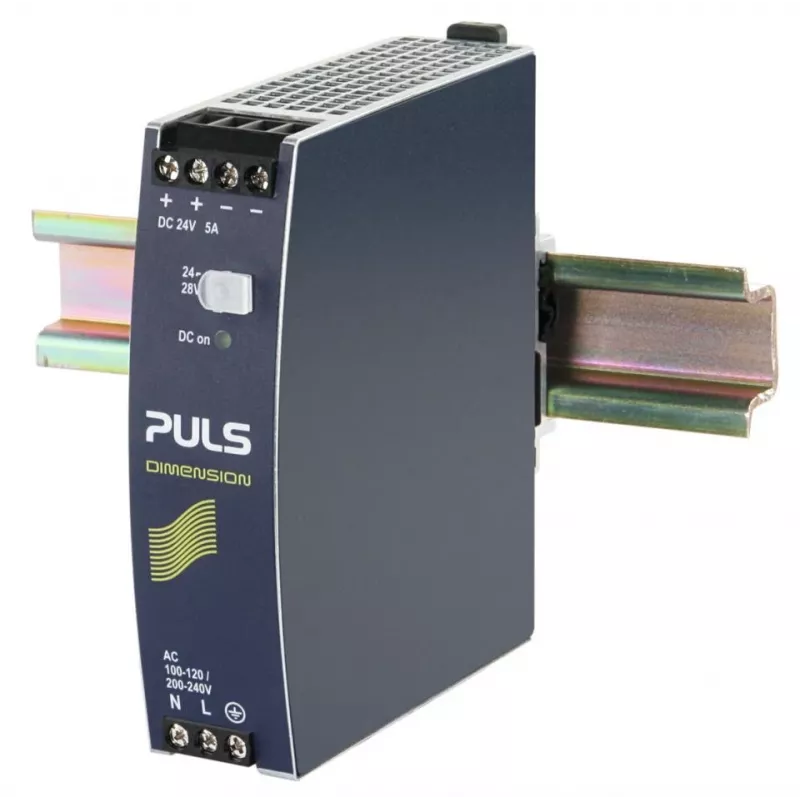

• Mounts on standard DIN rail TS-35/7.5 or TS-35/15

Specifications

• Output voltage: 24 VDC
• Output current: 5 A
• Output power: 120 W
• Input voltage: 85–264 VAC / 120–370 VDC
• Efficiency: 90%
• Ripple and noise: 150 mVp-p max.
• Voltage adjustment range: 21.6–29 VDC
• Isolation voltage: I/P-O/P 3 kVAC, I/P-FG 2 kVAC, O/P-FG 0.5 kVAC
• Operating temperature: -30 to +70 °C
• Cooling: free air convection
• Protection: short circuit, overload, over voltage, over temperature
• Safety standards: UL 61010-1, TUV EN61010-1, EAC TP TC 004, CE
• Harmonic current compliance: EN61000-3-2 Class A
• MTBF: >500K hrs (MIL-HDBK-217F)
• Housing material: plastic
• Power indicator: LED

Tips

Ensure adequate ventilation around the unit to maintain optimal operating temperature. The adjustable output voltage can be fine-tuned to compensate for voltage drops in long cable runs.
